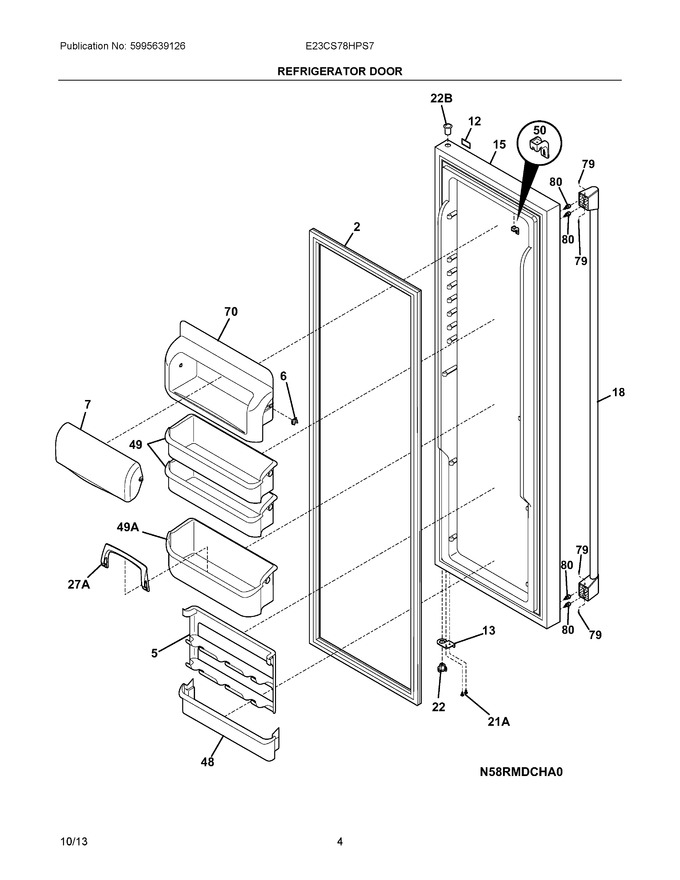

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 241510201 | Gasket-refr Door, White, Magnetic |
|
Immediately | $ 222.14 | ||||
| 5 | 241516102 | Rack-can |
|
$ 101.54 | |||||
| 6 | 241515901 | Lug-dairy Compartment |
|
$ 42.47 | |||||
| 7 | 241515606 | Door-dairy (Replaces: 241515601) |
|
$ 40.96 | |||||
| 12 | 241603101 | Label, Nameplate, Elux/icon |
|
$ 80.96 | |||||
| 13 | 240581905 | Door Stop, Black, Ref |
|
$ 60.25 | |||||
| 15 | 241837221 | Door-refr, Stainless, Complete Assy |
|
$ 589.83 | |||||
| 18 | 241637921 | Handle Assembly, Stainless, W/endcaps |
|
- | |||||
| 22 | 242015302 | Bearing-hinge(ref), Black, Closer |
|
$ 10.62 | |||||
| 48 | 241511701 | Bin-door, Pseudo, Bottom (Replaces: 241808209) |
|
Immediately | $ 67.21 | ||||
| 49 | 241505301 | Bin-door, 2-liter (Replaces: 241808215) |
|
Immediately | $ 76.40 | ||||
| 50 | 241508401 | Cover-magnet |
|
$ 88.93 | |||||
| 70 | 241515801 | Compartment-dairy, Removable |
|
$ 177.89 | |||||
| 79 | 218755401 | Screw-set, 10-32 X 0.375 |
|
Immediately | $ 25.02 | ||||
| 80 | 218755504 | Screw-shoulder, #10 Ab, Handle Mounting |
|
Immediately | $ 18.60 | ||||
| 21A | 240442708 | Screw-#10-32 X 3/4, Zinc (Replaces: 240442706) |
|
$ 8.34 | |||||
| 22B | 240328404 | Bearing-hinge, Black, Upper |
|
$ 22.87 | |||||
| 27A | 240396102 | Retainer, Tall Bottle |
|
$ 19.13 | |||||
| 49A | 241505501 | Bin-door, Gallon (Replaces: 241808212) |
|
Immediately | $ 99.03 | ||||
| NIA | 241601001 | Wrench, Allen |
|
- | |||||
| NIA | 5304455650 | Screw, Hex Washer Head, 8-15a X 0.625, Low Profile |
|
$ 14.18 |
