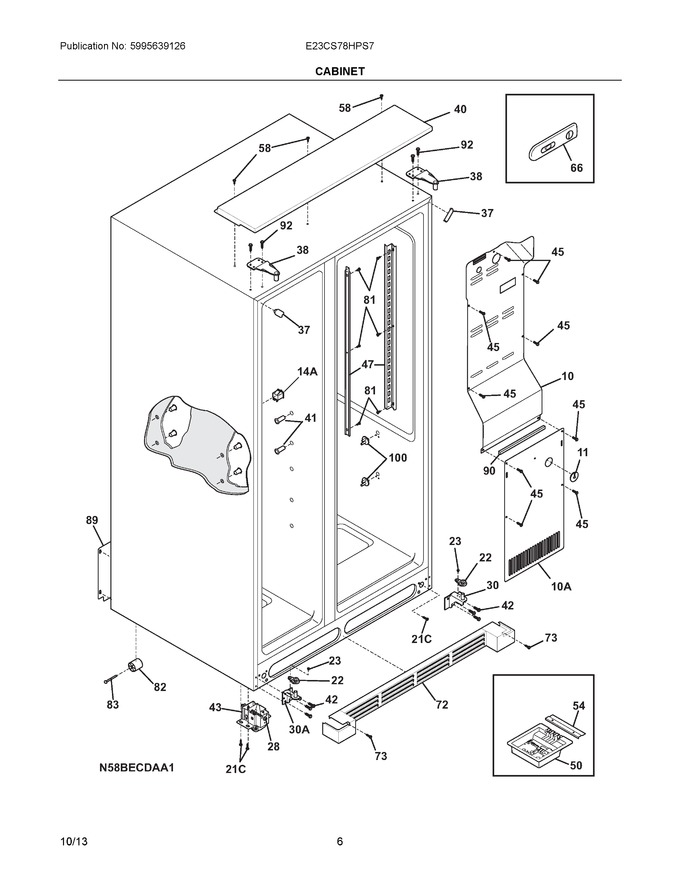

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
10	241509804		Cover-air Duct				$ 133.35
11	241529301		Plug-hole, Factory Test		Appelez-nous	-
22	241856501		Plate-door Closer, Natural				$ 22.73
23	240402702		Screw-#10-32 X 1/4 Flat Hd				$ 23.57
28	5304499445		Bolt-roller Adj, Hex Washer Head, 1/4-20 X 4.020, (2), Special   (Replaces: 240335502)			Immediately	$ 31.33
30	242034601		Bracket-lower Hinge				$ 59.11
37	240337612		Trim-cabinet Corner, Nickeloid, (2)				$ 6.25
38	240327207		Bracket-upper Hinge			Immediately	$ 57.50
40	241551304		Cover-upper Hinge, Nickeloid				$ 240.03
41	241550801		Grommet-shelf Mtg, 1.40" Long				$ 63.70
42	240578902		Screw, Hex Head, 1/4-20 X 5/8			Immediately	$ 14.18
43	5304499445		Roller Assy, Front, (2)   (Replaces: 240335006)			Immediately	$ 31.33
45	241500303		Screw, Hex Washer Head, 8-18ab X 1/2			Immediately	$ 4.55
47	241513001		Channel-shelf Mtg, Side, (2)				$ 112.24
50	241511112		Board-main Power				$ 263.47
54	241532401		Channel				$ 30.47
58	241548003		Screw, 10-32 X 3/8				$ 3.03
66	241513602		Damper-meat Keeper				$ 56.94
72	241554708		Grille/kickplate				$ 361.94
73	241926601		Screw, Truss Head				$ 6.81
81	5304455650		Screw, Hex Washer Head, 8-15a X 0.625, Low Profile				$ 14.18
82	5304418225		Roller, Compressor Base, Rear, (2)				$ 51.57
83	5304455655		Rivet, Flat Head, 1/4 Od X 1-3/4, Roller Pin			Immediately	$ 35.34
89	5304520905		Cover-access, W/label   (Replaces: 241733902)			Immediately	$ 74.03
90	218249808		Seal-coil Cover		Appelez-nous	-
92	241710601		Screw, Hex Washer Hd, 1/4 X 7/8, Hinge Mtg				$ 13.46
100	241993101		Support-crisper Cvr			Immediately	$ 5.62
10A	241719712		Cover-evap Coil, Lower		Appelez-nous	-
14A	241547902		Switch-light/lamp, Frzr Door   (Replaces: 241547901)			Immediately	$ 23.25
21C	218252201		Screw, #8 Truss Hd, 10-32ca X 0.500			Immediately	$ 14.18
30A	242034604		Bracket-lower Hinge   (Replaces: 242034602)				$ 53.34
NI	241591701		Louver		Appelez-nous	-
NI	241581801		Paint-pen, Grey			Immediately	$ 46.10
NIA	241550701		Grommet-shelf Mtg, .96" Long				$ 18.20
NIA	241993001		Support-crisper Cvr			Immediately	$ 19.23
NIA	241524802		Seal, Housing		Appelez-nous	-
NIB	241531701		Clip		Appelez-nous	-
NIC	241532501		Clip-harness		Appelez-nous	-
