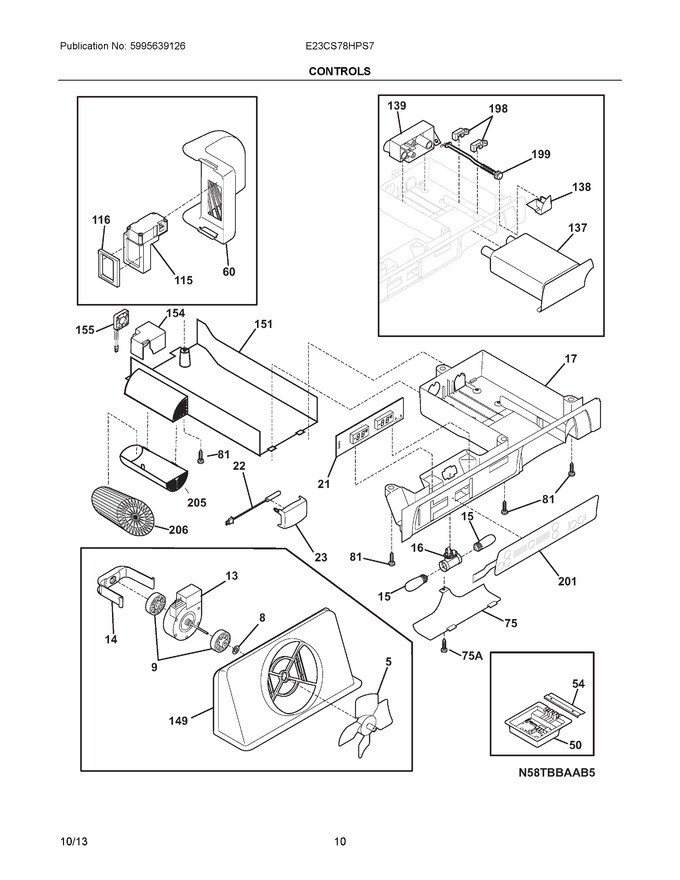

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 5 | 5308000010 | Fan Blade, Red, Evaporator Fan |
|
Immediately | $ 49.03 | ||||
| 8 | 215474201 | Washer, "slinger", Nylon, Evap Fan Shaft |
|
Immediately | $ 18.43 | ||||
| 9 | 241518301 | Bushing, Motor Mounting |
|
$ 66.63 | |||||
| 13 | 809069220 | Motor, Evaporator Fan (Replaces: 241509402) |
|
Immediately | $ 154.14 | ||||
| 14 | 242135301 | Clip, Evap Fan Motor |
|
$ 7.79 | |||||
| 15 | 5304517886 | Light Bulb (Replaces: 241552801) |
|
Immediately | $ 73.06 | ||||
| 16 | 241622802 | Socket-light, Frz Light |
|
$ 65.93 | |||||
| 17 | 241516201 | Box-control, Front |
|
$ 82.93 | |||||
| 21 | 241528204 | Control-temperature (Replaces: 241528203) |
|
$ 352.04 | |||||
| 22 | 240597220 | Sensor, Temperature, 10k, Ntc (Replaces: 240597203) |
|
Immediately | $ 5.16 | ||||
| 23 | 241512901 | Cover-sensor |
|
$ 83.49 | |||||
| 50 | 241511112 | Board-main Power |
|
$ 263.47 | |||||
| 54 | 241532401 | Channel |
|
$ 30.47 | |||||
| 60 | 241510301 | Diffuser-air |
|
$ 49.00 | |||||
| 75 | 241517802 | Shield-light |
|
$ 42.91 | |||||
| 81 | 218843801 | Screw, Hx Wshr Hd Sems, 8-15a X 0.625 (Replaces: 5304455658) |
|
$ 14.41 | |||||
| 115 | 5303918899 | Damper, Motorized (Replaces: 241518501) |
|
Immediately | $ 73.24 | ||||
| 116 | 241518601 | Seal-damper, Foam |
|
$ 9.22 | |||||
| 137 | 242175005 | Pur-filter Cassette |
|
- | |||||
| 138 | 240397301 | Button-filter Release |
|
$ 91.76 | |||||
| 139 | 240396002 | Base-water Filter |
|
Immediately | $ 119.66 | ||||
| 149 | 242204504 | Shroud-evap Fan Mtg (Replaces: 241517601) |
|
$ 38.68 | |||||
| 151 | 241526001 | Filter Housing |
|
$ 72.03 | |||||
| 154 | 241525801 | Duct-air |
|
$ 42.32 | |||||
| 198 | 240397401 | Retainer |
|
$ 59.54 | |||||
| 199 | 240397501 | Rod |
|
$ 55.57 | |||||
| 201 | 240596910 | Switch-membrane |
|
$ 106.89 | |||||
| 205 | 241525901 | Air Filter Door |
|
$ 46.88 | |||||
| 206 | 241504902 | Filter-air |
|
- | |||||
| 155A | 241526102 | Motor-air Filter |
|
$ 182.81 | |||||
| 75A | 5304455650 | Screw, Hex Washer Head, 8-15a X 0.625, Low Profile |
|
$ 14.18 | |||||
| NI | 241537401 | Shield |
|
- | |||||
| NI | 241527202 | Harness-wiring, Filter Fan |
|
$ 41.63 | |||||
| NI | 3205266 | Edge Protector, Wiring Harness |
|
$ 80.09 | |||||
| NIA | 241528304 | Seal, Foam, Evap Fan Assy |
|
- | |||||
| NIA | 240398401 | Spring-filter Release Rod |
|
$ 59.16 | |||||
| NIA | 241510802 | Harness-wiring, Frz Light |
|
$ 41.81 | |||||
| NIA | 241510501 | Seal-diffuser |
|
- | |||||
| NIA | 5304455649 | Screw, Pan Hd, 6-20 X 0.438 |
|
$ 17.01 | |||||
| NIA | 240527001 | O-ring, Wtr Filter Base (Replaces: 240526901) |
|
$ 10.62 | |||||
| NIA | 242227702 | Bypass, Water Filter, Optional Part (Replaces: 240396701) |
|
Immediately | $ 73.16 | ||||
| NIA | 241524802 | Seal, Housing |
|
- | |||||
| NIB | 241532501 | Clip-harness |
|
- |
