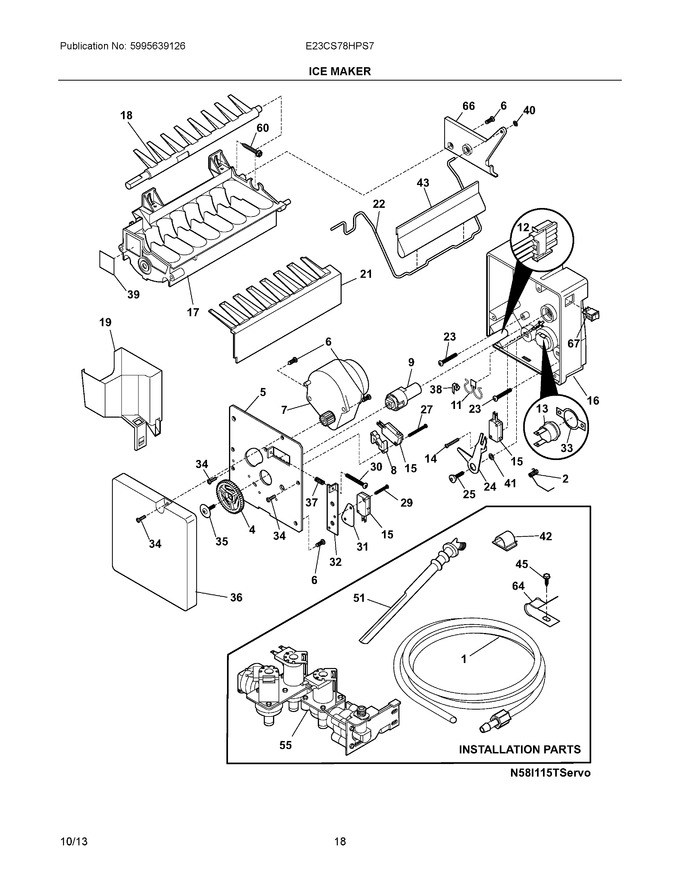

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 218976409 | Tube, Water, 60", Natural, Door |
|
Immediately | $ 60.25 | ||||
| 2 | 5304436616 | Spring, Torsion |
|
- | |||||
| 3 | 241685201 | Cam-drive |
|
$ 41.81 | |||||
| 4 | 5304458380 | Gear |
|
$ 32.77 | |||||
| 5 | 5304458383 | Plate-mounting |
|
- | |||||
| 6 | 5304458386 | Screw |
|
- | |||||
| 7 | 5304458382 | Motor-ice Maker Svo |
|
$ 138.97 | |||||
| 8 | 5304458388 | Spacer-hold Switch |
|
- | |||||
| 9 | 5304456662 | Cam |
|
- | |||||
| 11 | 5304458400 | Thermal Cutoff, Ice Maker |
|
- | |||||
| 12 | 5304458379 | Harness-wiring |
|
$ 112.69 | |||||
| 13 | 5304456665 | Thermostat, Ice Maker |
|
$ 134.23 | |||||
| 14 | 5304458384 | Screw |
|
- | |||||
| 15 | 5304456667 | Switch-micro, (3) |
|
$ 92.53 | |||||
| 16 | 5304458395 | Housing, Control |
|
$ 96.16 | |||||
| 17 | 241798231 | Mold-ice Maker, W/therm Cut Off (Replaces: 5304456669) |
|
Immediately | $ 200.97 | ||||
| 18 | 5304458377 | Ejector-ice |
|
$ 38.75 | |||||
| 19 | 5304458378 | Cup-water Inlet |
|
$ 54.97 | |||||
| 21 | 5304458390 | Ice Stripper |
|
- | |||||
| 22 | 5304458375 | Shut-off Arm |
|
$ 61.48 | |||||
| 23 | 5304458394 | Screw |
|
- | |||||
| 24 | 5304458391 | Lever Arm |
|
$ 40.16 | |||||
| 25 | 5304456676 | Screw, M 4x12.8 #2, Lever Arm/sprt |
|
- | |||||
| 27 | 5304458385 | Screw |
|
- | |||||
| 29 | 5304458393 | Screw |
|
- | |||||
| 30 | 5304458387 | Screw |
|
- | |||||
| 31 | 5304458381 | Insulator |
|
- | |||||
| 32 | 5304456681 | Plate-valve Switch |
|
- | |||||
| 33 | 5304458403 | Retainer-thermostat |
|
- | |||||
| 34 | 5304456678 | Screw, M 3x12 #3, (2) |
|
- | |||||
| 35 | 5304456684 | Screw |
|
$ 31.90 | |||||
| 36 | 5304458376 | Cover-ice Maker |
|
$ 58.31 | |||||
| 37 | 5304456682 | Spring, Timing Adjust |
|
- | |||||
| 38 | 5304458398 | Clip |
|
- | |||||
| 39 | 5304458399 | Conductor-heat |
|
- | |||||
| 40 | 5304458401 | Clip-retainer |
|
- | |||||
| 41 | 5304456689 | Washer, Nylon |
|
$ 77.26 | |||||
| 42 | 218515403 | Clip-grille |
|
$ 29.06 | |||||
| 43 | 241720601 | Extension |
|
$ 20.56 | |||||
| 45 | 5304455650 | Screw, Hex Washer Head, 8-15a X 0.625, Low Profile |
|
$ 14.18 | |||||
| 51 | 241796406 | Tube-water Fill, Extension (Replaces: 241796402) |
|
$ 19.85 | |||||
| 55 | 242252702 | Valve-water, Triple Solenoid (Replaces: 241734301) |
|
Immediately | $ 132.71 | ||||
| 60 | 5304455651 | Screw, Hex Washer Head, 8-15a X 0.500 |
|
$ 14.41 | |||||
| 64 | 5304455846 | Clamp, .31 Id, Steel, Water Tube |
|
$ 10.63 | |||||
| 66 | 5304458374 | Bracket-ice Maker |
|
- | |||||
| 67 | 5304458392 | Switch-on/off |
|
- | |||||
| NI | 241583301 | Deflector-air, Ice Maker |
|
$ 46.78 | |||||
| NI | 5303918344 | Ice Maker, Radius Cube, 115 V, No Instl Parts (Replaces: 241709801) |
|
Immediately | $ 178.39 | ||||
| NI | 5304458389 | Screw |
|
- | |||||
| NI | 5304456660 | Screw, M 4x6 #2 |
|
- | |||||
| NI | 241806601 | Connector-water, Straight, 5/16 To 5/16 (Replaces: 242103001) |
|
Immediately | $ 70.56 | ||||
| NIA | 218976418 | Tube-water Inlet, Inlet Valve, To Filter |
|
$ 64.49 | |||||
| NIA | 218709101 | Screw, Hex Head, 10-32 X 0.500 |
|
$ 6.38 | |||||
| NIA | 240352601 | Wiring Harness, Internal, With Plug |
|
- | |||||
| NIB | 218976421 | Tube-water Inlet, Valve To Door |
|
$ 20.56 | |||||
| NIB | 240363602 | Screw-shoulder |
|
$ 13.65 | |||||
| NIC | 241850615 | Tube-water Inlet, Inlet Valve, To I/m Inlet (Replaces: 218976915) |
|
$ 34.73 | |||||
| NIC | 240542901 | Cap-water Valve |
|
$ 18.95 | |||||
| NID | 240561701 | Seal-water Inlet, Inlet Valve, To Ice Maker (Replaces: 240561702) |
|
Immediately | $ 20.56 |
