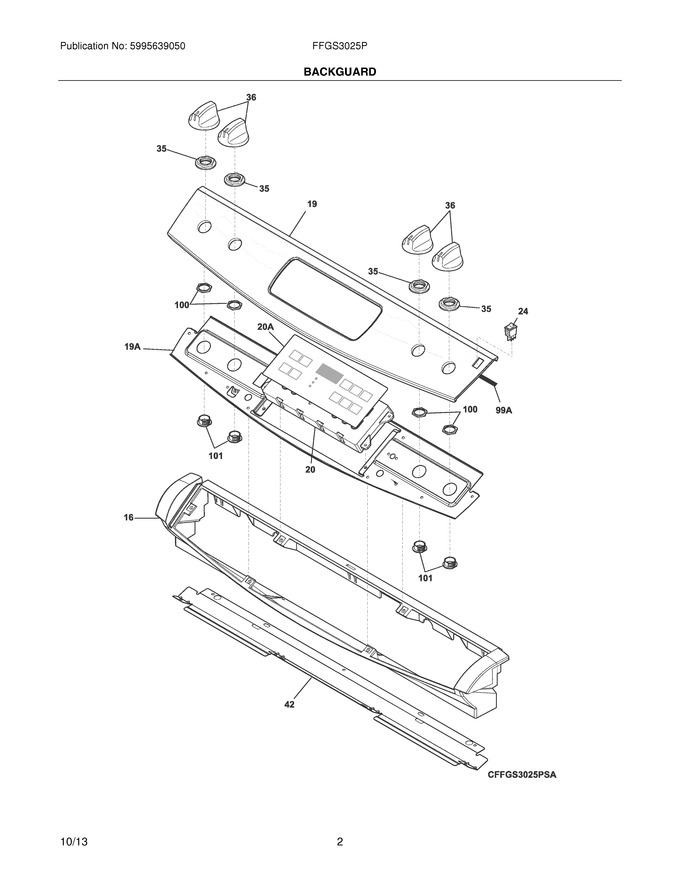

03 - Backguard


05 - Burner


07 - Body


09 - Top/drawer


11 - Door


12 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
16	318299102		Console,assy. ,black				$ 494.96
19	318235193		Panel,control ,black		Appelez-nous	-
35	318233720		Retainer,control Panel ,black				$ 20.48
36	316543812		Knob,control ,black				$ 37.22
42	318574701		Support,control Panel ,black				$ 62.69
100	318233800		Nut,hex				$ 63.53
101	318233400		Bushing,retainer				$ 43.21
19A	318224402		Panel,control Mtg.		Appelez-nous	-
20A	316419141		Overlay,clock ,black ,es300			Immediately	$ 56.87
99A	318223900		Gasket,dark Grey			Immediately	$ 82.80
F20	316557141		Clock/timer,electronic ,es300				$ 455.50
F24	5304527841		Switch,rocker ,black   (Replaces: 316005602)			Immediately	$ 11.38
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50
