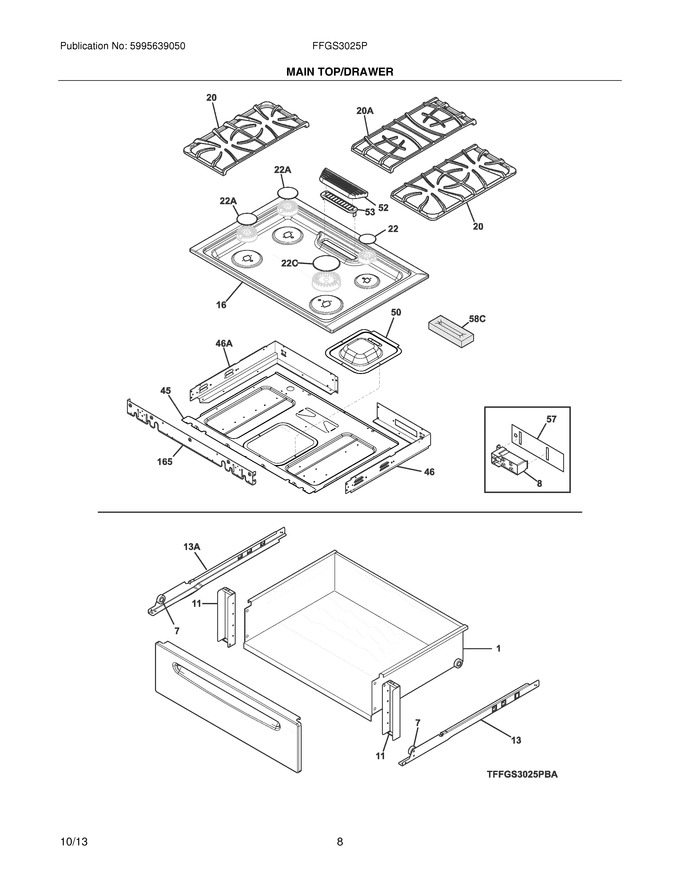

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304505701		Drawer   (Replaces: 318107105)			Immediately	$ 143.39
4	318298908		Panel,drawer ,black ,front				$ 131.93
7	318332200		Roller,nylon		Appelez-nous	-
11	318298600		Bracket,drawer Support ,(2)				$ 62.69
13	318018100		Channel,drawer ,rh			Immediately	$ 30.01
16	318569262		Maintop Assembly,black				$ 263.66
20	318560260		Grate,burner ,black ,(2)		Appelez-nous	-
22	5304508441		Cap,5k Burner ,matte ,black   (Replaces: 316261704)			Immediately	$ 35.04
45	318578701		Panel,burner Box ,bottom		Appelez-nous	-
46	318568200		Box,burner ,rh				$ 23.99
50	318578803		Panel,service ,fan				$ 43.73
52	318291126		Cover,flue ,black ,outer   (Replaces: 318291102)				$ 87.55
53	318308303		Cover,flue ,black				$ 112.19
57	318295611		Panel,service				$ 15.12
165	318227521		Plate,mounting		Appelez-nous	-
13A	318018101		Channel,drawer ,lh				$ 63.11
20A	318560470		Grate,black ,center				$ 290.46
22A	5304508442		Cap,9.5k Burner ,matte ,black   (Replaces: 316261804)			Immediately	$ 36.55
22C	5304508443		Cap,14k Burner ,matte ,black   (Replaces: 316262004)			Immediately	$ 46.01
46A	318568201		Box,burner ,lh				$ 28.93
58C	318594402		Insulation,flue   (Replaces: 318594401)				$ 245.64
F8	808608802		Module,spark   (Replaces: 316262401)			Immediately	$ 82.93
NI	316021109		Screw,8-18 X 0.5 ,chrome			Immediately	$ 27.50
NI	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black   (Replaces: 316021105)			Immediately	$ 27.50
NI	318291504		Plate,cook Top		Appelez-nous	-
