Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	139023301		Trim,oven Door ,black ,upper				$ 54.60
4	5304513273		Glass Assembly,outer ,black ,w/lower Trim   (Replaces: 139039528)				$ 265.43
6	139006903		Baffle,door		Appelez-nous	-
7	318372017		Insulation,door				$ 16.30
8	5304503232		Glass,oven Door ,heat Barrier ,inner ,hrc2   (Replaces: 316117502)				$ 116.95
9	139000404		Liner,oven Door		Appelez-nous	-
10	808190201		Screw,handle Mtg. ,(2)				$ 20.48
16	316446401		Glass,oven Door ,airwash   (Replaces: 316446400)			Immediately	$ 125.13
17	318264731		Spacer,glass ,(2)   (Replaces: 318264712)				$ 72.05
23	316575912		Hinge,oven Door ,lime Green ,(2)   (Replaces: 139014300)				$ 76.59
29	139023400		Spacer,door Handle ,(2)				$ 20.48
39	316545300		Handle,door/drawer ,black				$ 137.92
40	318242702		Bracket,glass Holder ,door ,(2)				$ 19.72
41	318370602		Bracket,glass Panel ,(2)				$ 13.65
42	318382302		Bracket,glass Retainer ,(4)   (Replaces: 318382301)				$ 50.81
56	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50
64	318165800		Spacer				$ 17.72
3A	139014401		Trim,oven Door ,black ,side ,(2) ,vented				$ 32.62
56A	5303324184		Screw,8-18 X 5/16 ,black			Immediately	$ 14.18
7A	318372016		Insulation,door				$ 17.72
NI	316418900		Screw,sims Lp ,no.8-32 X 5/16`` ,black				$ 14.18
NI	316483102		Label,anti-tip   (Replaces: 316483100)				$ 3.56

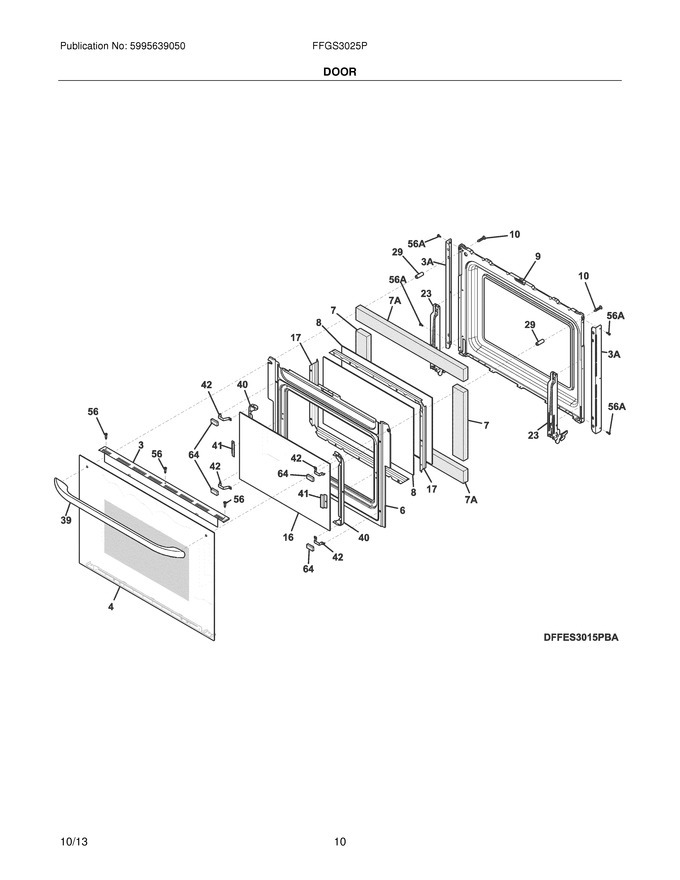

    View Diagram in Separate Window       Print Part List
