SELECT A DIAGRAM

01 - Cover


03 - Backguard


05 - Burner

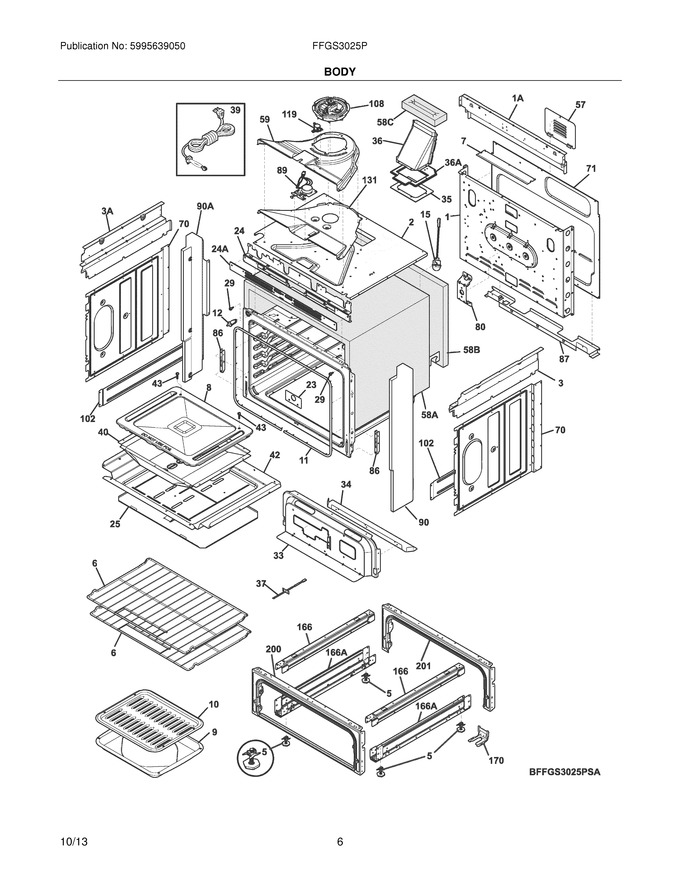

07 - Body


09 - Top/drawer


11 - Door


12 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	139017302		Panel,main Back		Appelez-nous	-
2	139078201		Shield,insulation ,top		Appelez-nous	-
3	318225230		Panel,bodyside ,upper Rh		Appelez-nous	-
5	318175510		Screw,leveling ,w/tee Nut   (Replaces: 318175508)			Immediately	$ 24.26
6	139011800		Rack,oven ,w/handle				$ 128.00
8	139005001		Panel,oven Bottom		Appelez-nous	-
9	318138801		Pan,broileroptional Access0ry		Appelez-nous	-
10	318126401		Insert,broiler Panoptional Access0ry		Appelez-nous	-
11	807545502		Seal,oven Door ,gray				$ 140.34
23	139004500		Cover,broil Opening		Appelez-nous	-
24	139074901		Frame,vent Trim ,black		Appelez-nous	-
25	318291900		Bracket,shield ,lower				$ 94.27
29	316517600		Spacer,oven Door				$ 12.05
33	318287800		Panel,valve Mtg.		Appelez-nous	-
34	318289401		Panel,valve Filler		Appelez-nous	-
35	318291300		Seal,flue Cavity		Appelez-nous	-
36	139004402		Box,flue Assembly		Appelez-nous	-
40	139004700		Box,oven Burner				$ 109.85
42	139004800		Shield,heat ,lower				$ 127.58
43	316282700		Screw,8-18 X 1.438 ,oven Bottom   (Replaces: 3131732)				$ 9.93
57	316283600		Cover,access				$ 12.50
59	139078002		Duct,cooling Fan ,top   (Replaces: 139078000)				$ 78.67
70	139000601		Shield,insulation ,sides ,(2)   (Replaces: 139000600)				$ 72.05
71	139014000		Shield,rear Wall ,lower		Appelez-nous	-
80	139021101		Bracket,support ,chassis/fan   (Replaces: 139021100)				$ 14.89
86	318561100		Receptacle,hinge ,(2)				$ 21.23
87	318260624		Bracket,cable Mtg.		Appelez-nous	-
90	5304511889		Panel,filler ,black ,rh   (Replaces: 318296904)				$ 74.42
102	139004100		Panel,reinforcement ,(2)				$ 20.89
131	139078102		Duct,cooling Fan ,bottom   (Replaces: 139078100)				$ 64.49
166	318298410		Bracket,base Support ,(2)				$ 75.83
170	5304486410		Kit,anti Tip ,w/brkt & Instru				$ 158.50
200	318335600		Frame & Wheel Assembly,black				$ 133.82
201	318298233		Frame,drawer ,black   (Replaces: 318298230)				$ 45.36
1A	139004600		Panel,main Back ,upper				$ 67.62
24A	139075001		Cover,vent Trim ,black				$ 60.52
36A	139008300		Support,panel ,flue		Appelez-nous	-
3A	318225231		Panel,bodyside ,upper Lh		Appelez-nous	-
58A	139010900		Insulation,wrapper ,top & Sides				$ 97.70
58B	139011000		Insulation,oven Back		Appelez-nous	-
58C	318594402		Insulation,flue   (Replaces: 318594401)				$ 245.64
90A	5304511890		Panel,filler ,black ,lh   (Replaces: 318296905)				$ 81.14
F108	318575612		Motor,cooling Fan			Immediately	$ 196.61
F119	807144901		Thermostat,cooling Fan ,110 Deg.				$ 58.39
F12	316445501		Switch,oven Light ,door Frame				$ 90.01
F15	5304528790		Lamp Assembly,round ,halogen ,25w   (Replaces: 139009000)			Immediately	$ 20.56
F166	318298403		Bracket,base Support ,lower ,(2)		Appelez-nous	-
F201	318531701		Spacer,(2)				$ 12.05
F201	5303289910		Screw,truss Sqdr ,8a X 1``				$ 5.67
F37	5304504897		Sensor,oven Temp Probe   (Replaces: 318562500)			Immediately	$ 48.13
F39	5304534377		Cord,service   (Replaces: 318144008)				$ 26.85
F89	5304528836		Motor,latch Assembly   (Replaces: 139078300)			Immediately	$ 76.34
FNI	807704601		Harness,wiring ,main				$ 117.11
FNI	808041201		Harness,wiring ,oven Ignitors				$ 51.57
NI	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316001017		Screw,ground Wire   (Replaces: 316001003)				$ 3.03
NI	316418900		Screw,sims Lp ,no.8-32 X 5/16`` ,black				$ 14.18
NI	318579001		Bracket,wire				$ 11.08
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316021109		Screw,8-18 X 0.5 ,chrome			Immediately	$ 27.50

    View Diagram in Separate Window       Print Part List
