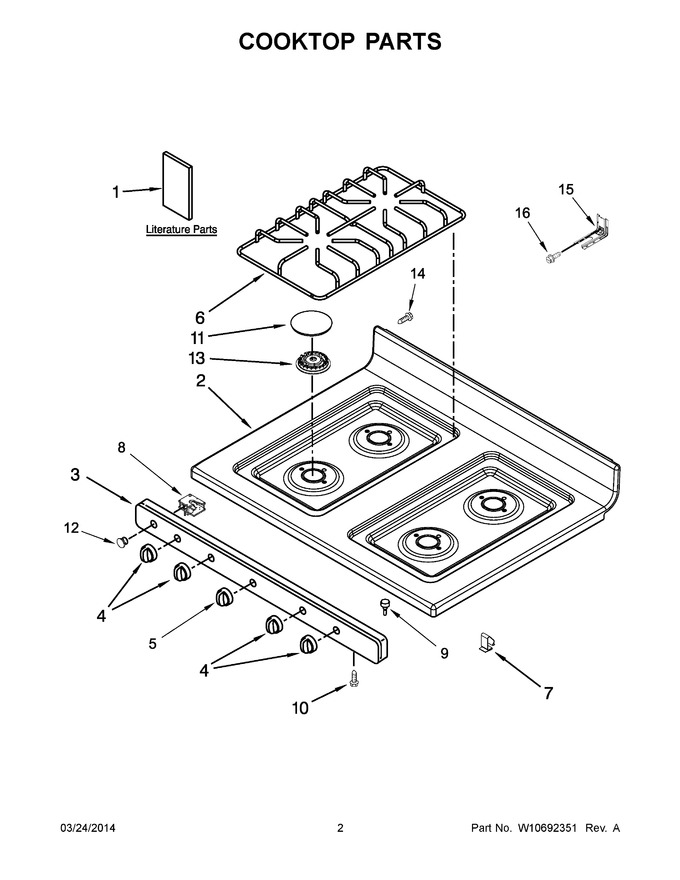

02 - Cooktop Parts


03 - Backguard Parts


04 - Manifold Parts


05 - Chassis Parts


06 - Oven And Broiler Parts


07 - Door Parts


08 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10620412		Guide, Use And Care		Appelez-nous	-
1	98007130		Tips, Safe Cooking (english)		Appelez-nous	-
1	W10539409		Tech Sheet		Appelez-nous	-
1	W10620421		Instructions, Installation		Appelez-nous	-
2	WPW10535684		Cooktop (white)   (Replaces: W10535684)				$ 286.53
3	W10620531		Panel, Manifold (white)		Appelez-nous	-
4	WPW10614597		Knob, Burner (white)   (Replaces: W10614597)				$ 20.98
5	W10814920		Knob, Oven (white)   (Replaces: W10615600)		Appelez-nous	-
6	WPW10578251		Grate, Burner (black)   (Replaces: W10578251)				$ 42.40
7	W11229684		Clip, Cooktop   (Replaces: 98004722)				$ 10.67
8	W10533468		Indicator, Battery Status		Appelez-nous	-
9	W10831827		Bumper, Cooktop   (Replaces: 98013389)		Appelez-nous	-
10	W11233072		Screw   (Replaces: 98005000)			Immediately	$ 12.62
11	WP98017461		Cap, Burner (black)   (Replaces: 98017461)				$ 60.75
12	W11690131		Lens, Indicator   (Replaces: W10179657)				$ 6.73
13	WPW10636224		Burner, Standard   (Replaces: W10636224)			Immediately	$ 59.23
14	WP98007225		Screw   (Replaces: 98007225)				$ 6.26
15	WPW10613666		Bracket, Anti-tip   (Replaces: W10613666)				$ 15.39
16	WP7101P485-60		Screw, Anti Tip   (Replaces: 7101P485-60)				$ 26.33
