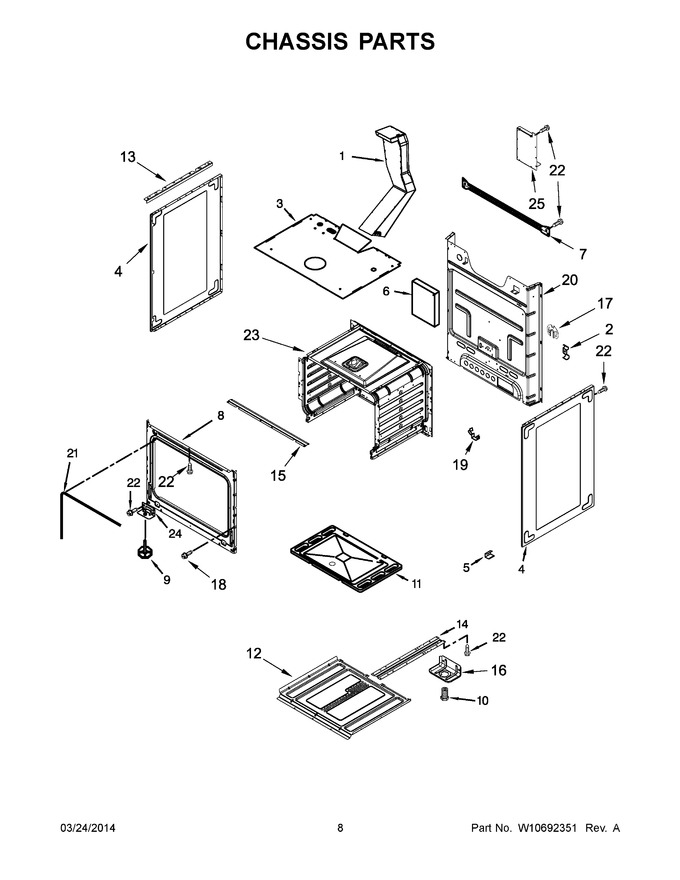

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10675411		Box, Flue		Appelez-nous	-
2	98005026		Clip, Tubing		Appelez-nous	-
3	W11319572		Shield, Insulation   (Replaces: W10164110)		Appelez-nous	-
4	W10816996		Panel, Side (white (right))   (Replaces: W10666141)		Appelez-nous	-
4	W10816996		Panel, Side (white (left))   (Replaces: W10666176)		Appelez-nous	-
5	98005502		Clip, Oven Botton				$ 12.10
6	98006710		Counterweight		Appelez-nous	-
7	98015363		Support, Rear				$ 73.69
8	N/P		Frame, Front (not Serviced)		Appelez-nous	-
9	W10819918		Foot, Leveling (front)   (Replaces: W10519868)		Appelez-nous	-
10	WPW10058460		Foot, Leveling (rear)   (Replaces: W10058460)			Immediately	$ 7.07
11	W10620408		Bottom, Oven		Appelez-nous	-
12	W10670197		Deflector, Oven		Appelez-nous	-
13	W10577312		Support, Side Panel		Appelez-nous	-
14	W10520269		Rail, Base		Appelez-nous	-
15	W10545322		Bracket, Manifold		Appelez-nous	-
16	W11770643		Bracket, Foot   (Replaces: W10535682)		Appelez-nous	-
17	98005713		Retainer, Burner		Appelez-nous	-
18	WP98008545		Screw, Trim   (Replaces: 98008545)				$ 15.94
19	98005642		Clip, Therm Bulb			Immediately	$ 74.64
20	W10554678		Back, Main		Appelez-nous	-
21	WPW10535778		Seal, Oven   (Replaces: W10535778)				$ 75.18
22	W10837731		Screw   (Replaces: 98006633)				$ 7.07
23	N/P		Liner, Oven (not Serviced)		Appelez-nous	-
24	W10819918		Base, Foot   (Replaces: W10562043)		Appelez-nous	-
25	W10538845		Cover		Appelez-nous	-
NI	W11492324		Insulation, Wrap   (Replaces: W10609560)		Appelez-nous	-
NI	W10537475		Insulation, Back		Appelez-nous	-
NI	W11688850		Insulation, Upper   (Replaces: W10613818)		Appelez-nous	-
NI	98004294		Wire Tie, Insulation		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
