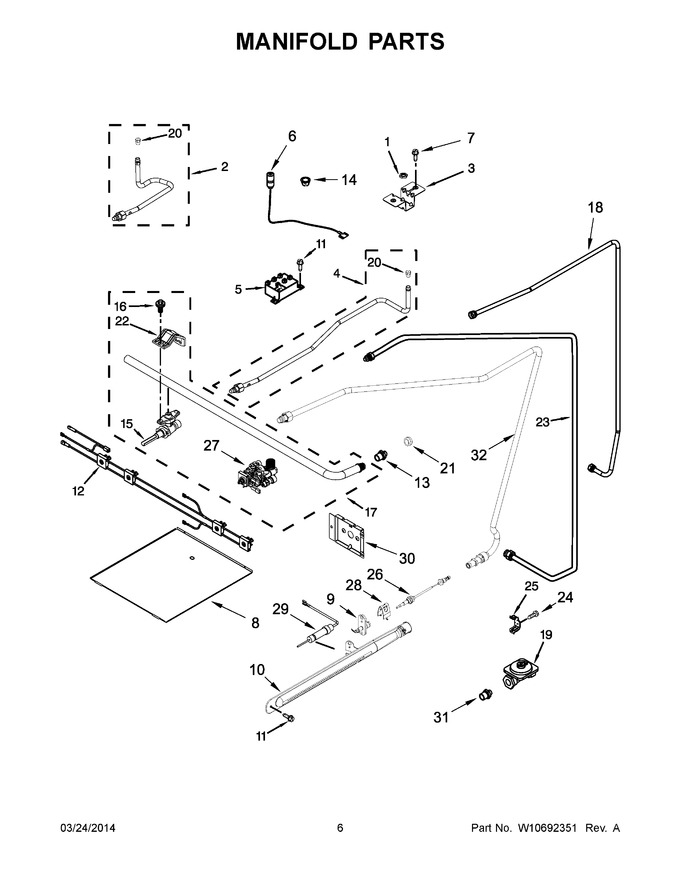

04 - Manifold Parts
05 - Chassis Parts
06 - Oven And Broiler Parts
07 - Door Parts
08 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 98017323 | Nut |
|
- | |||||
| 2 | W10859921 | Assembly, Tubing (left Front) (Replaces: W10543959) |
|
- | |||||
| 2 | W10861724 | Assembly, Tubing (right Front) (Replaces: W10512771) |
|
- | |||||
| 3 | W11715913 | Bracket, Venturi (Replaces: W10122103) |
|
- | |||||
| 4 | W11239659 | Assembly, Tubing (right Rear) (Replaces: W10544971) |
|
- | |||||
| 4 | W11213836 | Assembly, Tubing (left Rear) (Replaces: W10512770) |
|
- | |||||
| 5 | W10518414 | Module, Spark |
|
- | |||||
| 6 | WPW10209657 | Ignitor, Top (natural) (Replaces: W10209657) |
|
$ 48.56 | |||||
| 6 | WPW10209656 | Ignitor, Top (black) (Replaces: W10209656) |
|
Immediately | $ 73.07 | ||||
| 7 | W10837674 | Screw (Replaces: W10146346) |
|
$ 6.90 | |||||
| 8 | W10582462 | Spread, Flame (bake) |
|
- | |||||
| 9 | WPW10085400 | Pilot, Thermostat (Replaces: W10085400) |
|
$ 85.42 | |||||
| 10 | W10517877 | Burner, Oven |
|
- | |||||
| 11 | W10837731 | Screw (Replaces: 98006633) |
|
$ 7.07 | |||||
| 12 | W10556706 | Harness, Switch |
|
- | |||||
| 13 | 98007116 | Sleeve, 3/16 Ball |
|
- | |||||
| 14 | WPW10278150 | Clip, Ignitor (Replaces: W10278150) |
|
$ 40.61 | |||||
| 15 | WPW10141709 | Valve, Saddle (Replaces: W10141709) |
|
Immediately | $ 207.32 | ||||
| 16 | 98017517 | Screw |
|
- | |||||
| 17 | W10579474 | Assembly, Manifold |
|
- | |||||
| 18 | W10515689 | Tubing, Manifold To Regulator |
|
- | |||||
| 19 | 98007462 | Regulator |
|
- | |||||
| 20 | WP98017348 | Orifice, Natural (9.5k) (left Front, Right Front, Left Rear, Right Rear) (Replaces: 98017348) |
|
$ 78.85 | |||||
| 21 | 98005514 | Nut |
|
- | |||||
| 22 | W10574737 | Bracket, Valve |
|
- | |||||
| 23 | WP98004310 | Tubing, Thermostat To Pilot (Replaces: 98004310) |
|
$ 94.03 | |||||
| 24 | 1180823 | Screw |
|
- | |||||
| 25 | 98007410 | Bracket, Regulator |
|
- | |||||
| 26 | WPW10155906 | Thermocouple Pilot (Replaces: W10155906) |
|
$ 255.98 | |||||
| 27 | W10503587 | Thermostat, Oven |
|
- | |||||
| 28 | 98007109 | Retainer, Thermocouple |
|
- | |||||
| 29 | W10145060 | Electrode, Oven |
|
- | |||||
| 30 | W10570943 | Bracket, Oven Burner |
|
- | |||||
| 31 | 98007431 | Fitting 3/8to9/16 |
|
$ 110.58 | |||||
| 32 | W10532503 | Tubing, Thermostat To Burner |
|
- | |||||
| NI | N/P | Following Parts Not Illustrated, |
|
- | |||||
| NI | W10537440 | Kit, Lp Conversion (battery Ignition) |
|
- |
