01 - Cover Sheet
02 - Cooktop Parts
03 - Backguard Parts
04 - Manifold Parts
05 - Chassis Parts
06 - Oven And Broiler Parts

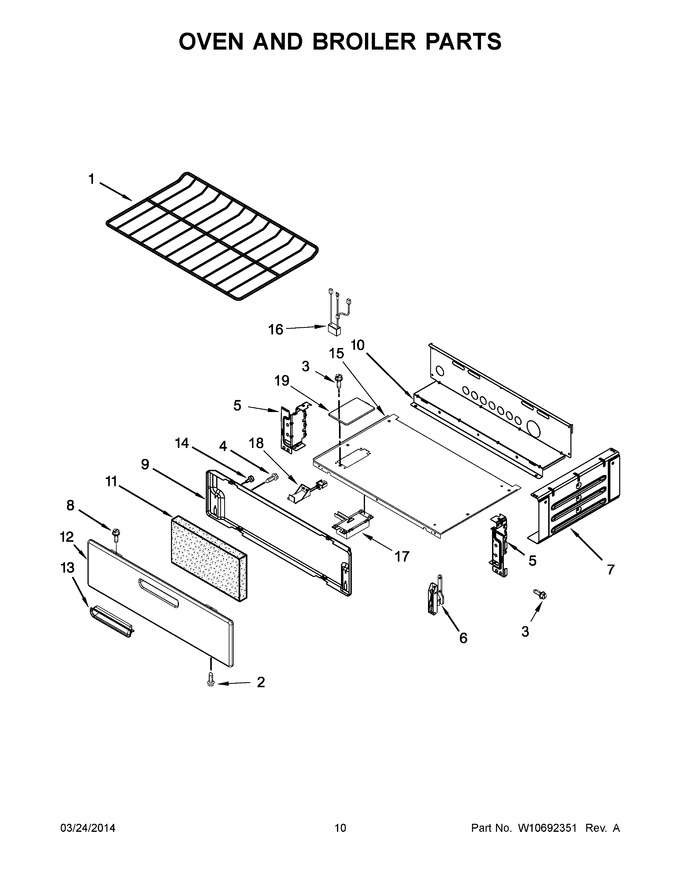

07 - Door Parts
08 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10550642 | Rack, Oven (Replaces: W10550642) |
|
$ 94.99 | |||||
| 2 | W10119413 | Screw |
|
- | |||||
| 3 | WP98008545 | Screw, Trim (Replaces: 98008545) |
|
$ 15.94 | |||||
| 4 | W10155121 | Screw |
|
- | |||||
| 5 | W10624275 | Cover, Broiler Right |
|
- | |||||
| 5 | W10624273 | Cover, Broiler Left |
|
- | |||||
| 6 | W10647966 | Hinge |
|
- | |||||
| 7 | W11841244 | Side Panel (Replaces: W10605426) |
|
- | |||||
| 8 | WP3400832 | Screw (black) (Replaces: 98006726) |
|
Immediately | $ 6.98 | ||||
| 9 | W10446851 | Liner, Broiler Drawer |
|
- | |||||
| 10 | W10364810 | Back Cover, Broiler |
|
- | |||||
| 11 | W11706803 | Insulation, Broiler Door (Replaces: W10216478) |
|
- | |||||
| 12 | W11099211 | Panel, Broiler Door (white) (Replaces: W10483323) |
|
- | |||||
| 13 | W10498563 | Handle, Broiler Door (white) |
|
- | |||||
| 14 | 98004052 | Bumper, Door |
|
- | |||||
| 15 | W10680080 | Baffle, Base |
|
- | |||||
| 16 | W10538600 | Jumper, Battery |
|
- | |||||
| 17 | W10518026 | Box, Battery |
|
- | |||||
| 18 | W10518028 | Harness, Battery Case |
|
- | |||||
| 19 | W10518027 | Cover, Battery |
|
- |
