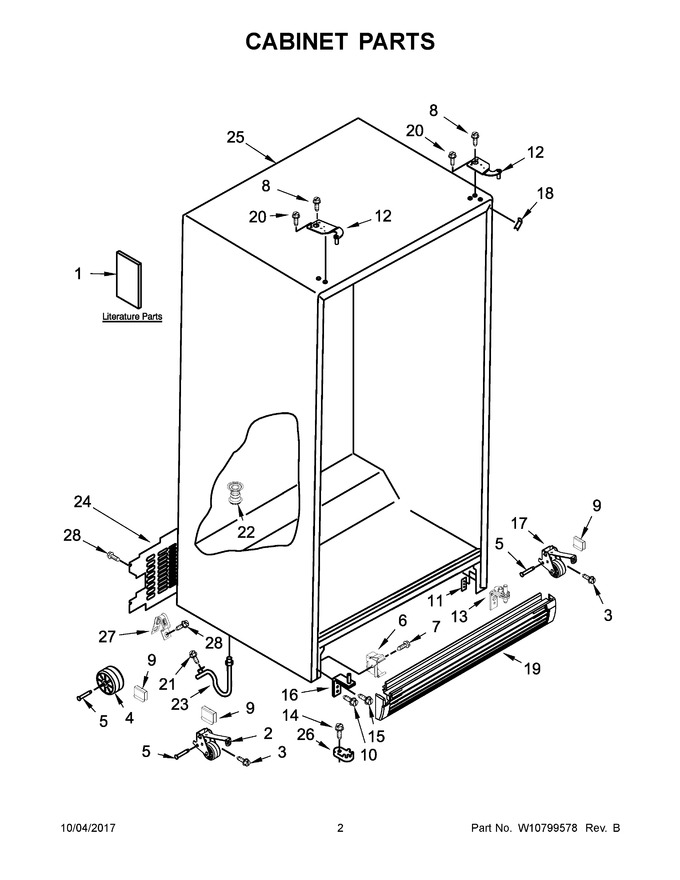

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10620504 | Use & Care Guide |
|
- | |||||
| 2 | WPW10304660 | Roller Assembly (left Hand) (Replaces: W10304660) |
|
Immediately | $ 63.34 | ||||
| 3 | W11544561 | Screw (Replaces: 2152958) |
|
$ 12.65 | |||||
| 4 | WPW10475495 | Roller (Replaces: 2150304) |
|
Immediately | $ 28.85 | ||||
| 5 | W11594405 | Axle, Roller (Replaces: 2262072) |
|
Immediately | $ 16.39 | ||||
| 6 | WP2155013 | Clip, Grille (Replaces: 2155013) |
|
Immediately | $ 6.95 | ||||
| 7 | WP489128 | Screw (Replaces: 488500) |
|
$ 9.79 | |||||
| 8 | W10336489 | Screw |
|
$ 12.90 | |||||
| 9 | WP2174706 | Clip, Roller (Replaces: 2174706) |
|
$ 9.88 | |||||
| 10 | W10856122 | Screw (Replaces: 3400103) |
|
$ 6.98 | |||||
| 11 | WP2304249 | Plate, Screw (Replaces: 2304249) |
|
$ 12.81 | |||||
| 12 | W11579508 | Door Hinge Assembly (white) (Replaces: W10704885) |
|
$ 31.55 | |||||
| 13 | W11049959 | Assembly, Bottom Hinge (refrigerator) (Replaces: W10846222) |
|
$ 68.45 | |||||
| 14 | WP489483 | Screw (Replaces: W10142234) |
|
$ 9.78 | |||||
| 15 | WP489497 | Screw (Replaces: 3400113) |
|
Immediately | $ 26.18 | ||||
| 16 | W10646418 | Assembly, Bottom Hinge (freezer) (Replaces: W10414753) |
|
Immediately | $ 34.86 | ||||
| 17 | WPW10304659 | Roller Assembly (right Hand) (Replaces: W10304659) |
|
Immediately | $ 61.67 | ||||
| 18 | WPW10283959 | Filler, Wrapper (white) (Replaces: W10283959) |
|
$ 7.04 | |||||
| 19 | WPW10449698 | Grille (white) (Replaces: W10449698) |
|
$ 172.11 | |||||
| 20 | WPW10308750 | Screw (white) (Replaces: W10308750) |
|
$ 62.82 | |||||
| 21 | WP489464 | Screw (Replaces: 489464) |
|
Immediately | $ 7.05 | ||||
| 22 | W11566763 | Fitting, Drain (Replaces: 2304888) |
|
Immediately | $ 45.81 | ||||
| 23 | W11512417 | Extension, Drain Fitting (Replaces: W10153550) |
|
$ 31.31 | |||||
| 24 | WP2188755 | Cover, Unit (Replaces: 2188735) |
|
$ 122.32 | |||||
| 25 | N/P | Cabinet (not A Serviceable Part) |
|
- | |||||
| 26 | W11778262 | Closer, Door (freezer) (Replaces: W10846218) |
|
$ 9.97 | |||||
| 27 | 549193 | Clamp, Power Cord |
|
$ 12.05 | |||||
| 28 | WPW10141645 | Screw (Replaces: 489084) |
|
$ 6.90 | |||||
| 12A | W11579508 | Door Hinge Assembly (black) (Replaces: W10704884) |
|
$ 31.55 | |||||
| 12B | W11164088 | Door Hinge Assembly (grey) (Replaces: W10704881) |
|
$ 59.71 | |||||
| 18A | W11252732 | Filler, Wrapper (black) (Replaces: W10283960) |
|
$ 11.21 | |||||
| 18B | W10851579 | Filler, Wrapper (grey) (Replaces: W10283961) |
|
Immediately | $ 6.47 | ||||
| 19A | W10449699 | Grille (black) |
|
- | |||||
| 19B | W10449700 | Grille (grey) |
|
- | |||||
| 1A | W10714502 | Tech Sheet |
|
- | |||||
| 1B | W10725064 | Energy Guide |
|
- | |||||
| 20A | WPW10308751 | Screw (black) (Replaces: W10308751) |
|
$ 7.57 |
