SELECT A DIAGRAM

01 - Cover Sheet


02 - Cabinet Parts


03 - Refrigerator Liner Parts


04 - Refrigerator Shelf Parts


05 - Freezer Liner Parts


06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Air Flow Parts


09 - Control Box Parts


10 - Unit Parts


11 - Optional Parts (not Included)

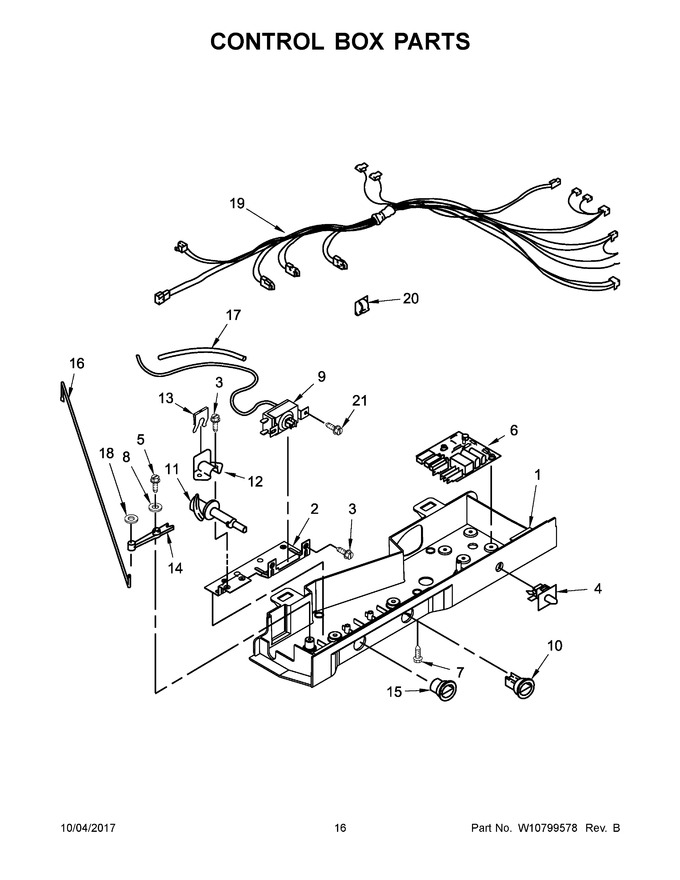

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10460941		Control Box		Appelez-nous	-
2	2311611		Bracket, Mounting		Appelez-nous	-
3	WP3196557		Screw   (Replaces: 3196537)			Immediately	$ 7.16
4	WP2149705		Switch, Light   (Replaces: 2219875)			Immediately	$ 36.36
5	627068		Screw				$ 10.91
6	WPW10366605		Control, Adaptive Defrost   (Replaces: W10366605)			Immediately	$ 248.65
7	489392		Screw   (Replaces: 489398)				$ 12.02
8	489203		Washer   (Replaces: W10657618)		Appelez-nous	-
9	WPW10583800		Assembly, Thermostat   (Replaces: W10583800)				$ 193.34
10	W10723843		Knob, Thermostat				$ 23.93
11	WP2182195		Assembly, Cam   (Replaces: 2182195)				$ 5.13
12	W10891600		Body, Bearing		Appelez-nous	-
13	WP2196062		Damper, Control   (Replaces: 2196062)				$ 9.64
14	W10891599		Arm, Pivot				$ 18.64
15	W10891408		Knob, Control		Appelez-nous	-
16	W10804348		Rod, Connecting		Appelez-nous	-
17	WP2196003		Tube, Thermostat Barrier   (Replaces: 2196001)				$ 7.16
18	W10672286		Fastener, Push-on		Appelez-nous	-
19	W10667067		Harness, Control Box				$ 107.96
20	WP1115374		Clip, Wire   (Replaces: 1115374)				$ 6.98
21	WP965173		Screw   (Replaces: 487869)			Immediately	$ 9.65

    View Diagram in Separate Window       Print Part List
