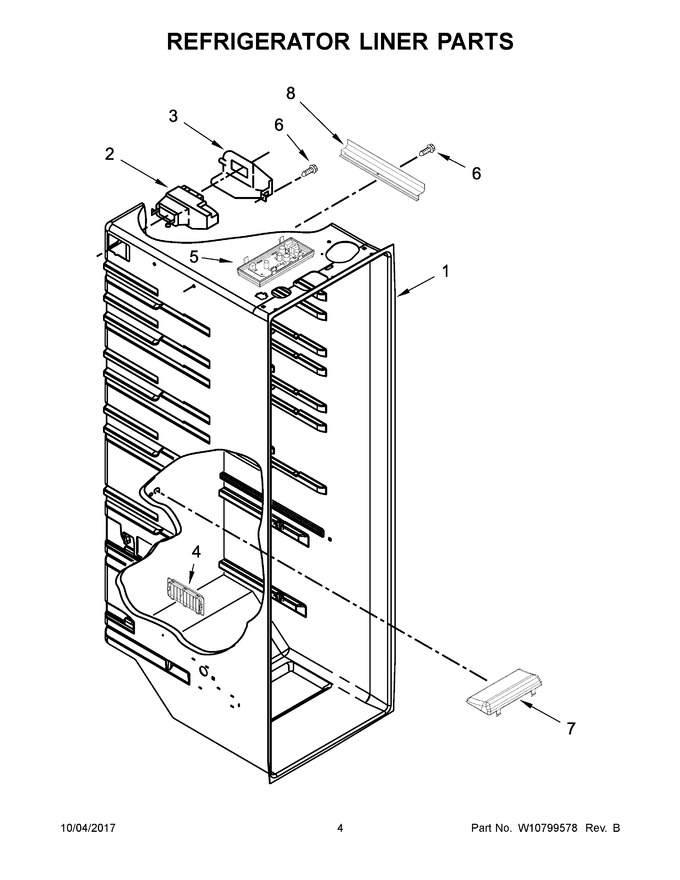

03 - Refrigerator Liner Parts


04 - Refrigerator Shelf Parts


05 - Freezer Liner Parts


06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Air Flow Parts


09 - Control Box Parts


10 - Unit Parts


11 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Liner (not A Serviceable Part)		Appelez-nous	-
2	WPW10151374		Assembly, Air Diffuser   (Replaces: W10151374)			Immediately	$ 89.80
3	2152019		Cover, Air Diffuser				$ 77.43
4	W10550195		Louver		Appelez-nous	-
5	WPW10515058		Assembly, Led Light (flat Lens)   (Replaces: W10515058)			Immediately	$ 33.41
6	W10759522		Screw   (Replaces: 486298)				$ 6.98
7	WPW10515057		Assembly, Led Light (tapered Lens)   (Replaces: W10515057)			Immediately	$ 42.56
8	W10252495		Cover, Wiring		Appelez-nous	-
