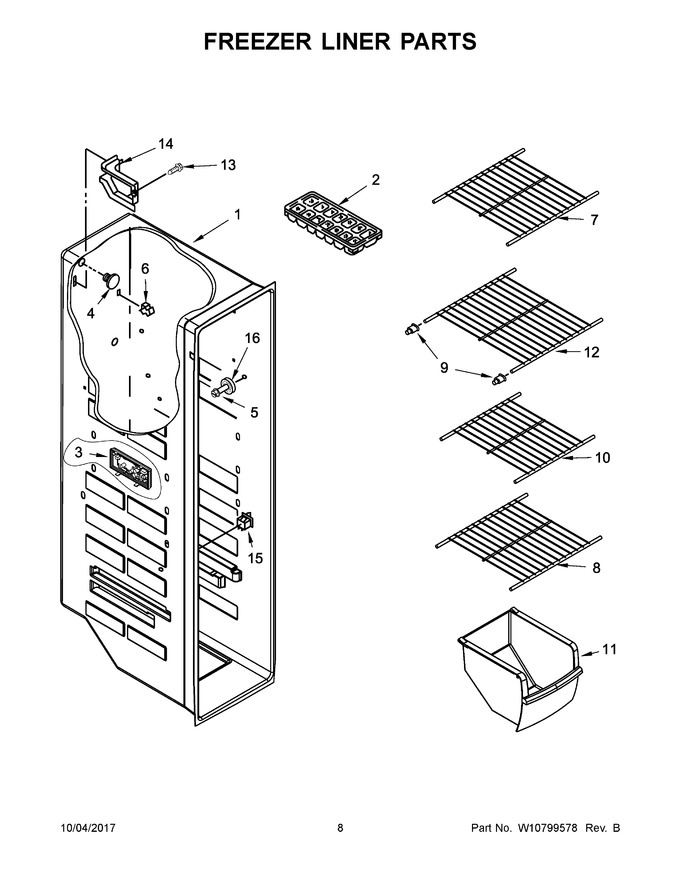

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Liner (not A Seviceable Part) |
|
- | |||||
| 2 | WP841180A | Ice Cube Tray (Replaces: 841180) |
|
Immediately | $ 41.00 | ||||
| 3 | W11104452 | Led Light Assembly, Flat Lens (Replaces: W10550215) |
|
Immediately | $ 121.17 | ||||
| 4 | 2223173 | Plug, Fill Tube |
|
$ 7.92 | |||||
| 5 | W10191952 | Screw |
|
$ 5.65 | |||||
| 6 | 2215823 | Clip, Air Duct (Replaces: 2315163) |
|
$ 9.38 | |||||
| 7 | W10318945 | Shelf, Wire |
|
$ 88.46 | |||||
| 8 | WPW10318947 | Shelf, Wire (Replaces: W10318947) |
|
$ 78.70 | |||||
| 9 | WPW10130299 | Cup, Shelf (Replaces: W10130299) |
|
Immediately | $ 12.60 | ||||
| 10 | WPW10318961 | Shelf, Wire (Replaces: W10318961) |
|
Immediately | $ 69.90 | ||||
| 11 | W11577967 | Bin, Freezer (Replaces: 2309757) |
|
$ 82.54 | |||||
| 12 | WPW10318948 | Shelf, Wire (Replaces: W10318948) |
|
$ 133.06 | |||||
| 13 | WP489478 | Screw (Replaces: 489478) |
|
$ 6.98 | |||||
| 14 | 2160912 | Cover, Wiring |
|
- | |||||
| 15 | W11384469 | Switch, Rocker Arm (Replaces: 1118894) |
|
Immediately | $ 33.51 | ||||
| 16 | W11527119 | Assembly, Shelf Stud (Replaces: W10173127) |
|
- |
