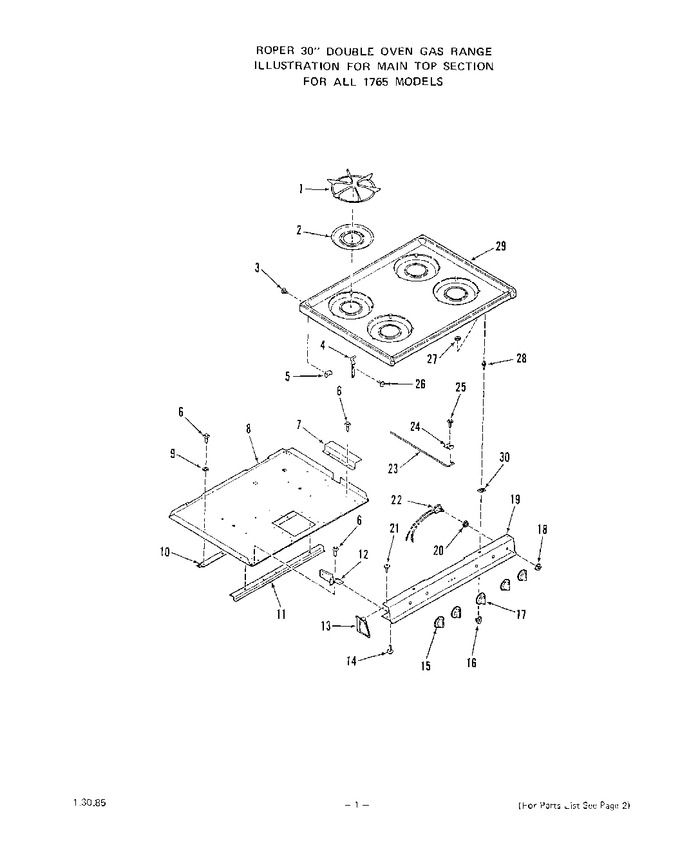

01 - Main Top


02 - Optional Griddle


03 - Power Lock


04 - Top Burner


05 - Broiler And Oven Burner


06 - Body


07 - Oven Door


08 - Upper Oven Pedestal


09 - Control Panel


10 - Blower


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316786		Top Grate (4 Req)		Appelez-nous	-
2	322888		Aeration Pan (4 Req)		Appelez-nous	-
3	316849		Screw-10-32x1/2``		Appelez-nous	-
4	320922		Hinge-main Top (left)		Appelez-nous	-
4	320921		Hinge-main Top (right)		Appelez-nous	-
5	327403		Bracket-main Top Hinge (lt. Or Rt.)		Appelez-nous	-
6	327320		Screw 10-16x7/16``		Appelez-nous	-
7	329841		Raceway		Appelez-nous	-
8	327849		Burner Box Bottom		Appelez-nous	-
9	106462		Washer		Appelez-nous	-
10	329158		Rear Stiffener-burner Box Bottom		Appelez-nous	-
11	327705		Front Stiffener-burner Box Bottom		Appelez-nous	-
12	328808		Bracket-manifold Panel (left)		Appelez-nous	-
12	328924		Bracket-manifold Panel (right)		Appelez-nous	-
13	328498		End Cap-manifold Panel (right)		Appelez-nous	-
13	328499		End Cap-manifold Panel (left)		Appelez-nous	-
14	326974		Screw 10abx1/2``		Appelez-nous	-
15	328805		Knob-gas Valve (4 Reg)		Appelez-nous	-
16	24667		Catch-main Top Strike (2 Req)		Appelez-nous	-
17	328278		Knob-thermostat		Appelez-nous	-
18	87403		Knurled Nut		Appelez-nous	-
19	329468		Manifold Panel		Appelez-nous	-
20	236129		Pal Nut 3/8-27		Appelez-nous	-
21	327621		Screw 6-20x3/8``		Appelez-nous	-
22	330080		Push Switch-oven Light		Appelez-nous	-
23	326066		Support Rod-main Top		Appelez-nous	-
24	326348		Clamp		Appelez-nous	-
25	316365		Screw 10-32x7/16``		Appelez-nous	-
26	321162		Screw 10-32 X 3/4``		Appelez-nous	-
27	239764		Keps Nut 8-32		Appelez-nous	-
28	299784		Strike (2 Req)		Appelez-nous	-
29	328912		Main Top (chrome)		Appelez-nous	-
29	328914		Main Top (toast)		Appelez-nous	-
29	328913		Main Top (platinum)		Appelez-nous	-
29	328911		Main Top (almond)		Appelez-nous	-
29	328910		Main Top (golden Wheat)		Appelez-nous	-
29	328907		Main Top (white)		Appelez-nous	-
30	310218		Washer (2 Req)		Appelez-nous	-
