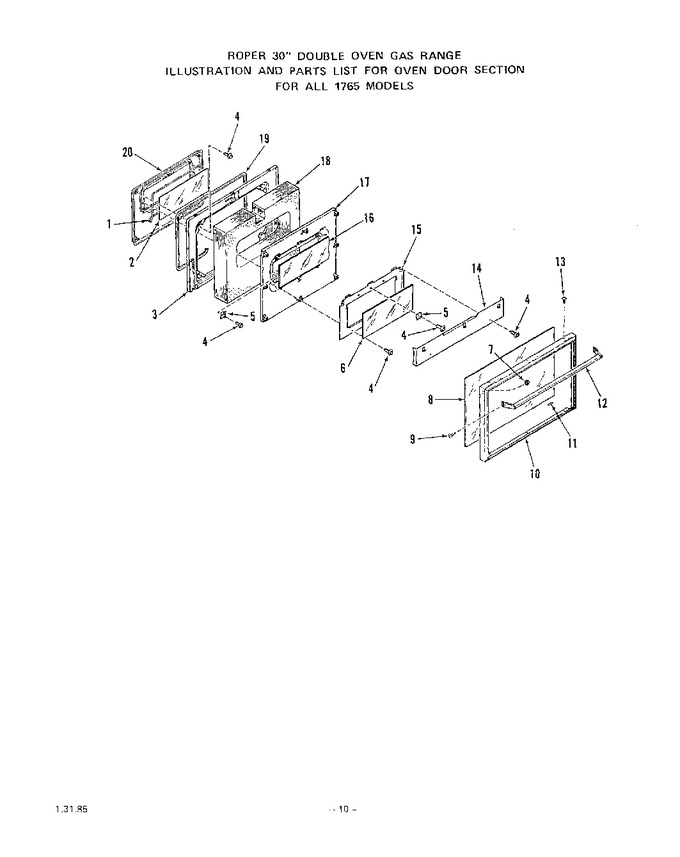

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	302935		Seal-inner Glass		Appelez-nous	-
2	312426		Inner Glass-oven Door		Appelez-nous	-
3	328723		Lining-oven Door		Appelez-nous	-
4	327320		Screw 10-16x7/16``		Appelez-nous	-
5	326009		Retainer-door Glass		Appelez-nous	-
6	326088		Intermediate Glass-oven Door		Appelez-nous	-
7	239764		Keps Nut 8-32		Appelez-nous	-
8	326367		Outer Glass-oven Door		Appelez-nous	-
9	319447		Screw 8-32 X 1/2``		Appelez-nous	-
10	326001		Frame-oven Door		Appelez-nous	-
11	112370		Cushion (3 Req)		Appelez-nous	-
12	303342		Handle		Appelez-nous	-
13	316849		Screw-10-32x1/2``		Appelez-nous	-
14	328719		Baffle-oven Door		Appelez-nous	-
15	328615		Mounting Plate-glass		Appelez-nous	-
16	326632		Center Glass-oven Door		Appelez-nous	-
17	328623		Retainer-oven Door Insulation		Appelez-nous	-
18	326000		Insulation-oven Door		Appelez-nous	-
19	292244		Gasket-oven Door		Appelez-nous	-
20	328669		Plug-oven Door Lining		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
