SELECT A DIAGRAM

01 - Main Top


02 - Optional Griddle


03 - Power Lock


04 - Top Burner


05 - Broiler And Oven Burner


06 - Body


07 - Oven Door


08 - Upper Oven Pedestal


09 - Control Panel


10 - Blower

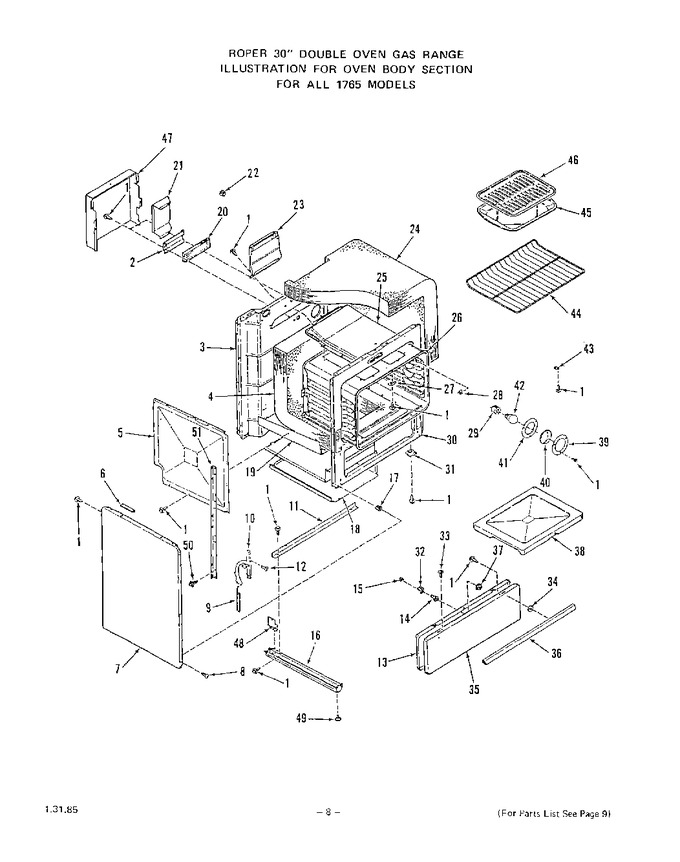

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	327320		Screw 10-16x7/16``		Appelez-nous	-
2	327809		Wire Shield		Appelez-nous	-
3	327294		Main Back		Appelez-nous	-
4	329146		Insulation-oven Back & Bottom (1 Piece)		Appelez-nous	-
5	328959		Retainer-insulation (lt. Or Rt.)		Appelez-nous	-
6	326914		Spacer-main Top (2 Req)		Appelez-nous	-
7	326102		Body Side (lt. Or Rt.) (black)		Appelez-nous	-
7	326055		Body Side (lt. Or Rt.) (white)		Appelez-nous	-
7	326058		Body Side (lt. Or Rt.) (golden Wheat)		Appelez-nous	-
7	326059		Body Side (lt. Or Rt.) (almond)		Appelez-nous	-
7	327939		Body Side (lt. Or Rt.) (platinum)		Appelez-nous	-
7	327940		Body Side (lt. Or Rt.) (toast)		Appelez-nous	-
8	314124		Screw 8abx5/8``		Appelez-nous	-
9	326965		Spring-oven Door (lt. Or Rt.)		Appelez-nous	-
10	326013		Hinge-oven Door (left)		Appelez-nous	-
10	326012		Hinge-oven Door (right)		Appelez-nous	-
11	327026		Strap-main Back & Base		Appelez-nous	-
12	112013		Screw 10-32 X 5/8``		Appelez-nous	-
13	328428		Lining-storage Door		Appelez-nous	-
14	299784		Strike		Appelez-nous	-
15	71003		Catch-strike		Appelez-nous	-
16	327020		Base W/leg Levelers (lt. Or Rt.)		Appelez-nous	-
17	330031		Expansion Nut Spacer (4 Req)   (Replaces: 312605)			Immediately	$ 14.48
18	328491		Storage Compartment		Appelez-nous	-
19	327785		Lower Insulation Retainer		Appelez-nous	-
20	330166		Insulation		Appelez-nous	-
21	327808		Wire Shield		Appelez-nous	-
22	324257		Bushing		Appelez-nous	-
23	327826		Flue Deflector		Appelez-nous	-
24	329147		Insulation-oven Top & Sides (1 Piece)		Appelez-nous	-
25	327781		Flue Box		Appelez-nous	-
26	327779		Oven Body		Appelez-nous	-
27	304835		Cover		Appelez-nous	-
28	321539		Clip-thermostat Bulb (2 Req)		Appelez-nous	-
29	87883		Holder-oven Light Bulb		Appelez-nous	-
30	329484		Front Frame		Appelez-nous	-
31	328430		Lower Catch-storage Door (2 Req)		Appelez-nous	-
32	328429		Bracket-catch		Appelez-nous	-
33	316849		Screw-10-32x1/2``		Appelez-nous	-
34	302343		Spacer		Appelez-nous	-
35	326292		Front Panel-storage Door (black)		Appelez-nous	-
35	327942		Front Panel-storage Door (toast)		Appelez-nous	-
35	326287		Front Panel-storage Door (white)		Appelez-nous	-
35	326290		Front Panel-storage Door (golden Wheat)		Appelez-nous	-
35	326291		Front Panel-storage Door (almond)		Appelez-nous	-
35	327941		Front Panel-storage Door (platinum)		Appelez-nous	-
36	292240		Handle-storage Door		Appelez-nous	-
37	239764		Keps Nut 8-32		Appelez-nous	-
38	328485		Oven Bottom		Appelez-nous	-
39	229372		Retainer-oven Light Lens		Appelez-nous	-
40	114989		Lens-oven Light		Appelez-nous	-
41	229371		Gasket-lens		Appelez-nous	-
42	DA96-01243C		Oven Light Bulb   (Replaces: 111257)				$ 144.00
43	237762		Cover Plate-thermostat Bulb		Appelez-nous	-
44	326069		Oven Rack (2 Req)		Appelez-nous	-
45	326300		Broiler Pan		Appelez-nous	-
46	326297		Broiler Pan Grid		Appelez-nous	-
47	328487		Shield-flue Deflector		Appelez-nous	-
48	327024		Bracket-support & Base (right)		Appelez-nous	-
48	327022		Bracket-support & Base (left)		Appelez-nous	-
49	326125		Leg Leveler (4 Req)		Appelez-nous	-
50	WP112432		Screw 10-32x7/16``   (Replaces: 311484)				$ 7.16
51	327035		Support-body Side (lt. Or Rt.)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
