Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 327320 Screw 10-16x7/16`` Appelez-nous -
2 327075 Rear Top Burner-rt. Or Lt. (inc`s. Key 4) Appelez-nous -
3 327074 Front Top Burner-rt. Or Lt. (inc`s.key 4) Appelez-nous -
4 327198 Air Shutter (4 Req) Appelez-nous -
5 329464 Electrode-spark Igniter (left) Appelez-nous -
5 329462 Electrode-spark Igniter (right) Appelez-nous -
6 327073 Support-top Burner (lt. Or Rt.) Appelez-nous -
7 312453 Bracket-spark Igniter (lt. Or Rt.) Appelez-nous -
8 311106 Pressure Regulator Appelez-nous -
9 311455 Mounting Screw 1/4-20 Appelez-nous -
10 113384 Inverted Nut 3/8`` Appelez-nous -
11 326830 Shut Off Valve Appelez-nous -
12 313563 Rubber Gasket Appelez-nous -
13 329539 Manifold Pipe Appelez-nous -
14 311692 Rubber Gasket Appelez-nous -
15 328279 Thermostat-oven Appelez-nous -
16 155021 G.m. Screw 8-32x3/16`` Appelez-nous -
17 329839 Shield-thermostat Appelez-nous -
18 329272 Gas Valve (4 Req) Appelez-nous -
19 310253 Switch-gas Valve (4 Req) Appelez-nous -
20 280437 Tubing 3/8`` (shut-off Valve To Control Valve) Appelez-nous -

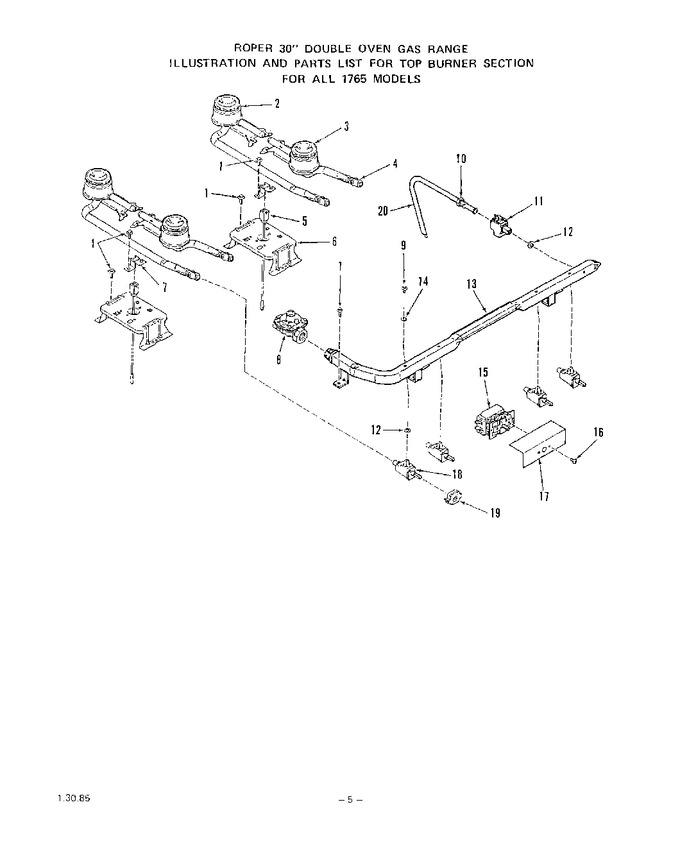

    View Diagram in Separate Window     Print Icon   Print Part List
