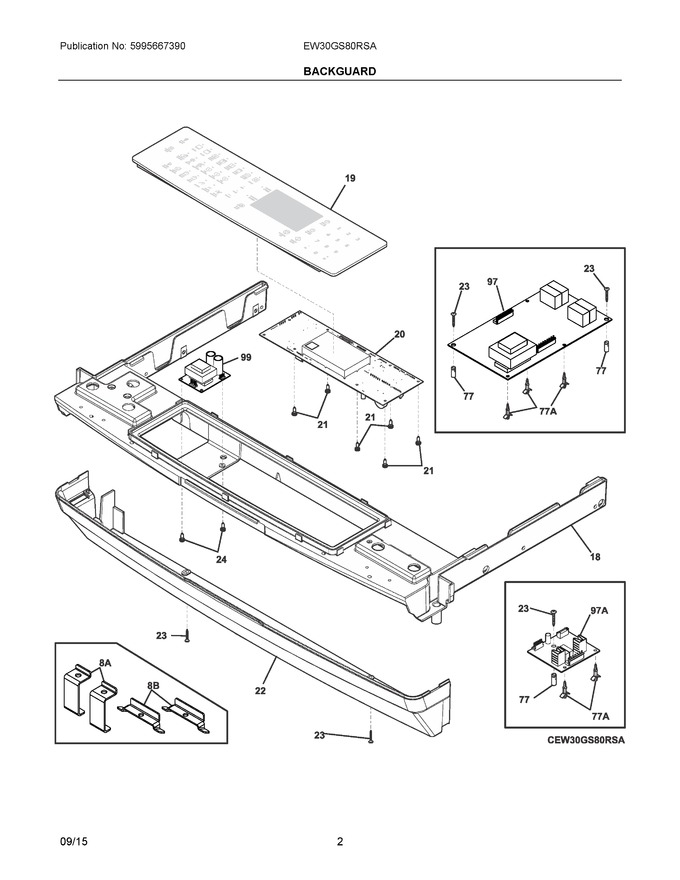

02 - Backguard


03 - Burner


04 - Body


05 - Top/drawer


06 - Door


07 - Wiring Diagram


08 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
18	318900303		Subframe, Control				$ 253.03
19	318387131		Control Assembly, Glass, Black, W/interface				$ 1,596.15
20	316576715		Controller, Electronic, Es630		Appelez-nous	-
21	131892100		Screw, Control Mtg, 6-32 X .25, (5)   (Replaces: 316524400)		Appelez-nous	-
22	318905005		Panel, Service, Stainless				$ 450.32
23	5303289910		Screw, Truss Sqdr, 8a X 1				$ 5.67
24	316519700		Screw, Cup Pt, 8-18 X 0.375, Chrome   (Replaces: 316021108)				$ 10.02
77	316247900		Spacer, Power Board				$ 44.65
97	316443917		Board, Relay				$ 363.64
99	316535201		Board, Power Supply, 8v				$ 349.42
77A	316114100		Spacer				$ 60.96
8A	318403105		Bracket, Bridge, (2)   (Replaces: 318403102)				$ 49.62
8B	318403202		Bracket, Service Panel, (2)				$ 17.69
97A	316519200		Board, Variable Speed, Triac			Immediately	$ 256.24
NI	5304503467		Harness, Wiring, Communication		Appelez-nous	-
NI	318532147		Ground Wire, W/terminal		Appelez-nous	-
NI	316001017		Screw, Ground Wire   (Replaces: 316001003)				$ 3.03
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NIA	5304501674		Harness, Wiring, Power Supply		Appelez-nous	-
