SELECT A DIAGRAM

01 - Cover Sheet


02 - Backguard


03 - Burner

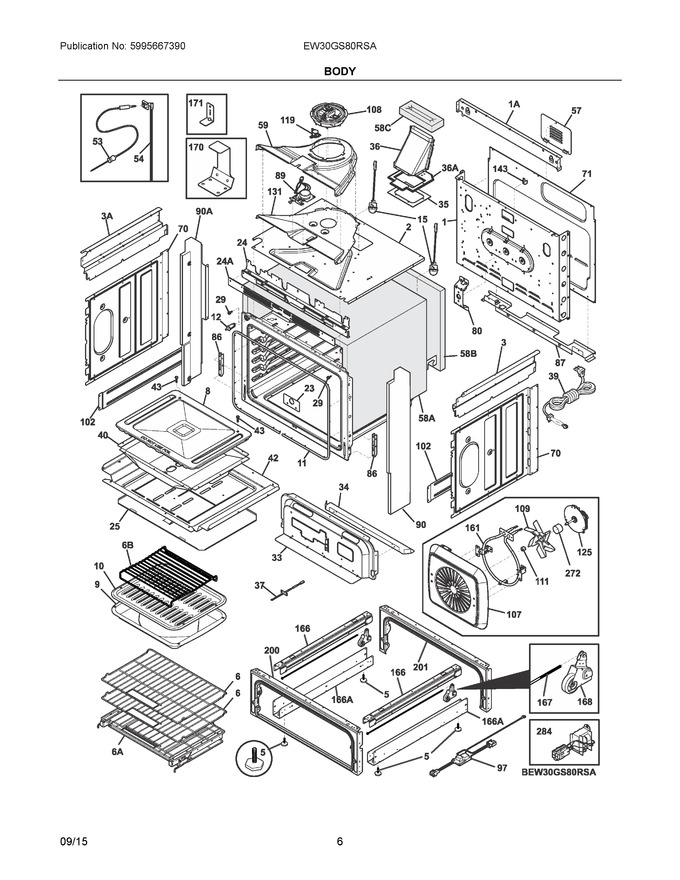

04 - Body


05 - Top/drawer


06 - Door


07 - Wiring Diagram


08 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	139017302		Panel, Main Back		Appelez-nous	-
2	139078201		Shield, Insulation, Top		Appelez-nous	-
3	318905700		Panel, Side, Rh Upper				$ 62.79
5	318175510		Screw, Leveling   (Replaces: 318175503)			Immediately	$ 24.26
6	139011601		Rack, Oven, W/handle				$ 160.18
8	139005002		Panel, Oven Bottom, Cobalt				$ 110.10
9	316081901		Pan, Broiler, Cobalt Blue				$ 74.32
10	316082001		Insert, Broiler Pan, Cobalt Blue				$ 53.09
11	807545502		Seal, Oven Door, Gray				$ 140.34
12	808136601		Switch, Light, Door   (Replaces: 318394802)			Immediately	$ 44.04
15	5304528790		Lamp Assembly, Round, Halogen, W/lens, W/bulb   (Replaces: 139009000)			Immediately	$ 20.56
23	139004500		Cover, Broil Opening		Appelez-nous	-
24	139074901		Frame, Vent Trim, Black		Appelez-nous	-
25	318291900		Bracket, Shield, Lower				$ 94.27
29	316517601		Bumper, Main Front, Cobalt Blue		Appelez-nous	-
33	318287800		Panel, Valve Mtg.		Appelez-nous	-
34	318289401		Panel, Valve Filler		Appelez-nous	-
35	318291300		Seal, Flue Cavity		Appelez-nous	-
36	139004402		Box, Flue Assembly		Appelez-nous	-
37	5304504897		Sensor, Oven Temp Probe   (Replaces: 318562500)			Immediately	$ 48.13
39	5304534000		Cord, Electric Power   (Replaces: 807108201)			Immediately	$ 33.37
40	139004700		Box, Oven Burner				$ 109.85
42	139004800		Shield, Heat, Lower				$ 127.58
43	316282700		Screw, 8-18 X 1.438, Oven Bottom   (Replaces: 3131732)				$ 9.93
53	5304503737		Probe, Meat Temp, Black   (Replaces: 318601306)				$ 99.33
54	139017201		Receptacle Assy, Meat Probe				$ 187.82
57	316283600		Cover, Access				$ 12.50
59	139078002		Duct, Cooling Fan, Top   (Replaces: 139078000)				$ 78.67
70	139000601		Shield, Insulation, Sides, (2)   (Replaces: 139000600)				$ 72.05
71	139014000		Shield, Rear Wall, Lower		Appelez-nous	-
80	139021101		Bracket, Support, Chassis/fan   (Replaces: 139021100)				$ 14.89
86	318561100		Receptacle, Hinge, (2)				$ 21.23
87	318260624		Bracket, Cable Mtg.		Appelez-nous	-
89	5304528836		Motor, Latch Assembly   (Replaces: 139078301)			Immediately	$ 76.34
90	318905812		Panel, Side, Stainless, Rh				$ 206.49
97	808743401		Board, Emi Filter, W/harness				$ 38.69
102	139004100		Panel, Reinforcement, (2)				$ 20.89
107	139013902		Cover, Convection Fan, Cobalt				$ 120.54
108	807123004		Motor Assembly, Fan			Immediately	$ 165.66
109	318398302		Blade, Fan, Convection   (Replaces: 139009100)			Immediately	$ 29.11
111	316136600		Nut, Fan Retainer			Immediately	$ 19.13
119	807144901		Thermostat, Safety, 110c Deg				$ 58.39
125	139008601		Motor, Fan, Convection				$ 154.13
131	139078102		Duct, Cooling Fan, Bottom   (Replaces: 139078100)				$ 64.49
143	318172904		Support, Wire		Appelez-nous	-
161	139013800		Element, Convection, 350w				$ 87.97
166	318298410		Bracket, Base Support, (2)				$ 75.83
167	318147811		Screw, Lock, Adjusting				$ 31.19
168	318302400		Wheel & Bracket Assy, Adjustable, (2)				$ 75.13
170	318335305		Bracket, Anti-tip				$ 17.72
171	318335200		Bracket, Anti-tilt				$ 31.90
200	318298232		Frame, Drawer, Black, Front				$ 95.13
201	318298233		Frame, Drawer, Black, Rear				$ 45.36
272	139021700		Tube, Convection Fan				$ 17.72
284	316536100		Transformer			Immediately	$ 210.83
166A	5304511884		Bracket, Base Support, Lower, (2)   (Replaces: 318298405)				$ 65.98
1A	318905600		Back, Main, Upper				$ 55.24
24A	139075001		Cover, Vent Trim, Black				$ 60.52
36A	139008301		Support, Panel, Flue		Appelez-nous	-
3A	318905701		Panel, Side, Lh Upper				$ 75.14
58A	139010900		Insulation, Wrapper, Top & Sides				$ 97.70
58B	139011000		Insulation, Oven Back		Appelez-nous	-
58C	318594402		Insulation, Flue   (Replaces: 318594401)				$ 245.64
6A	139013309		Rack Assembly, Gliding, W/handle				$ 265.65
6B	318219500		Rack, Broiler Pan		Appelez-nous	-
90A	318905813		Panel, Side, Stainless, Lh				$ 199.31
NI	5303289910		Screw, Truss Sqdr, 8a X 1				$ 5.67
NI	5303311217		Screw, 10-24 X 2 3/16				$ 12.71
NI	808041201		Harness, Wiring, Oven Ignitors				$ 51.57
NI	807791602		Harness, Wiring, Ads Mdl		Appelez-nous	-
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 27.50
NI	316021109		Screw, 8-18 X 0.5, Black   (Replaces: 316021110)			Immediately	$ 27.50
NI	807597603		Screw, Self Tapping, 8-18 X 11/32, (4)				$ 9.22
NI	5304499570		Harness, Wiring, Main		Appelez-nous	-
NIA	316116000		Screw, Concrete, 1.75", Anti-tip Brkt				$ 12.89
NIA	318946500		Bulb, Halogen, G9, 25w, 120v			Immediately	$ 60.44
NIA	318531701		Spacer				$ 12.05
NIA	316001017		Screw, Ground Wire   (Replaces: 316001003)				$ 3.03
NIA	318579001		Bracket, Wire				$ 11.08
NIA	316418900		Screw, Sims Lp, #8-32 X 5/16", Black				$ 14.18
