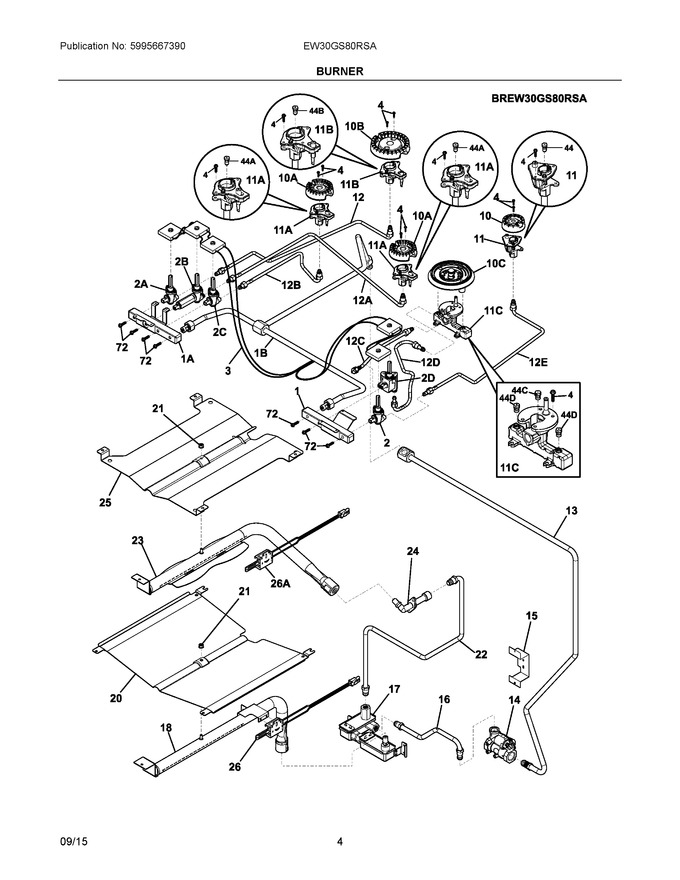

03 - Burner


04 - Body


05 - Top/drawer


06 - Door


07 - Wiring Diagram


08 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318941200		Manifold, Assembly, Right Side		Appelez-nous	-
2	318387400		Valve, Burner, 5k				$ 174.43
3	318232671		Wiring Harness, W/igntr Switch				$ 177.08
4	316540900		Screw, Burner, Head Mtg, (8)			Immediately	$ 15.17
10	316438200		Burner, Sealed, 5k			Immediately	$ 56.70
11	316540800		Ignitor/orifice Assy., Top Burner, 5k, W/holder				$ 11.20
12	318901301		Tubing, 14k Burner, Lh Rear		Appelez-nous	-
13	318902302		Tubing, Manifold Supply   (Replaces: 318902301)		Appelez-nous	-
14	316091711		Regulator, Pressure   (Replaces: 316416705)			Immediately	$ 90.03
15	318262810		Bracket, Regulator		Appelez-nous	-
16	318289500		Tube, Regulator Valve				$ 75.84
17	316031501		Valve, Safety			Immediately	$ 296.26
18	5304502520		Burner, Bake				$ 173.66
20	139005100		Baffle, Bake Burner				$ 95.68
21	154079601		Nut, Hex Head Sems   (Replaces: 5303013272)				$ 0.41
22	139009500		Tube, Broil Supply				$ 71.59
23	139007101		Burner, Broil   (Replaces: 139007100)				$ 116.24
24	316409703		Elbow, Mixer				$ 138.70
25	316401301		Baffle, Broil Burner				$ 173.57
26	139013700		Ignitor, Bake Burner			Immediately	$ 171.52
44	316527504		Orifice, Burner, 5k				$ 22.68
72	316215600		Screw, Valve Mtg., 1/4 - 20			Immediately	$ 14.18
10A	316558300		Burner, Sealed, 9.5k			Immediately	$ 52.45
10B	316438400		Burner, Sealed, 17k			Immediately	$ 83.42
10C	5304501023		Burner Assembly, G5				$ 165.99
11A	316540700		Ignitor/orifice Assy., Top Burner, 9.5k, W/holder				$ 11.15
11B	316543202		Ignitor/orifice Assy., Top Burner, Right Front, 16k, W/holder, Tube			Immediately	$ 11.76
11C	316440105		Ignitor/orifice Assy., Top Burner, Twin, 18k, W/holder				$ 146.01
12A	318916807		Tube, 9.5k Burner, Center		Appelez-nous	-
12B	318901502		Tubing, 9.5k Burner, Lh Front		Appelez-nous	-
12C	318901900		Tubing, 18k Burner, Rh Front				$ 28.88
12D	318901700		Tubing, 18k Burner, Rh Front				$ 34.49
12E	318901100		Tubing, 5k Burner, Rh Rear		Appelez-nous	-
1A	318941212		Manifold, Assembly, Left Side   (Replaces: 318941201)		Appelez-nous	-
1B	318305412		Tube, Manifold, Interconnect		Appelez-nous	-
26A	139013701		Ignitor, Broil Burner				$ 170.81
2A	318387401		Valve, Top Burner, 9.5k				$ 166.56
2B	318589200		Valve Assembly, 9.5k Burner, Center				$ 86.78
2C	318387402		Valve, Top Burner, 14k				$ 182.86
2D	316412515		Valve, Top Burner, 18k, Dual Port				$ 385.88
44A	316527500		Orifice, Burner, 9.5k				$ 21.40
44B	316527508		Orifice, Top Burner, 16k				$ 18.43
44C	316527520		Orifice, Top Burner, Simmer				$ 15.60
44D	316527502		Orifice, Burner, 12k				$ 22.68
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 27.50
NI	316089500		Screw, 10-16 X .486				$ 13.46
NI	316418901		Screw, Trilobe, 10-32 X 5/16", Black				$ 14.18
NI	808041201		Harness, Wiring, Oven Ignitors				$ 51.57
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NI	318186932		Lp Conversion Kit, W/instructions				$ 171.52
NI	318199795		Wiring Harness, Ignitor				$ 91.01
NIA	316566901		Sleeve, Insulator				$ 12.89
NICA	5304503473		Clip, Simmer Burner		Appelez-nous	-
