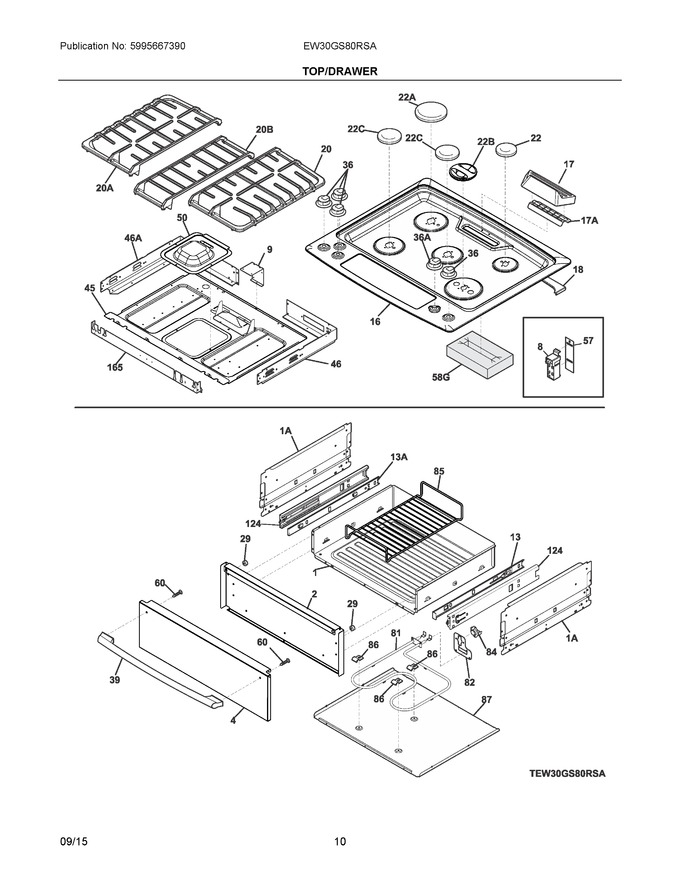

SELECT A DIAGRAM

01 - Cover Sheet


02 - Backguard


03 - Burner


04 - Body


05 - Top/drawer


06 - Door


07 - Wiring Diagram


08 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318304405		Drawer, Body Assembly				$ 248.01
2	5304503469		Liner, Drawer, Inner		Appelez-nous	-
4	5304503470		Panel, Drawer, Stainless, Outer		Appelez-nous	-
8	5304508269		Module, Spark   (Replaces: 316262404)			Immediately	$ 105.46
9	318905500		Support, Maintop		Appelez-nous	-
13	318259509		Glide, Warmer, Inner Rh				$ 26.25
16	318536560		Maintop Assembly, Stainless, W/support, W/graphics		Appelez-nous	-
17	318905403		Cover, Flue, Black		Appelez-nous	-
18	318906900		Support, Deflector Box				$ 37.47
20	318909206		Grate, Burner, Black, Rh				$ 310.17
22	5304508441		Cap, 5k Burner, Matte, Black   (Replaces: 316261704)			Immediately	$ 35.04
29	318147430		Bumper, (2)				$ 18.95
36	318569900		Knob, Top Valve, Black, Single, (4)				$ 115.82
39	316380802		Handle, Door, Stainless				$ 250.86
45	318578701		Panel, Burner Box, Bottom		Appelez-nous	-
46	318568200		Box, Burner, Rh				$ 23.99
50	318578803		Panel, Service, Fan				$ 43.73
57	318295611		Panel, Service				$ 15.12
60	5303288572		Screw-handle Mtg		Appelez-nous	-
81	318255301		Element, Warmer Drawer				$ 105.42
82	318304500		Bracket, Element, Warmer Drawer				$ 11.29
84	318005108		Thermostat			Immediately	$ 81.14
85	807328301		Rack, Warmer Drawer				$ 87.21
86	316095800		Clip, Hold Down, (3)				$ 9.93
87	318300102		Panel, Warmer Drawer, Lower				$ 106.22
124	316105501		Glide, Outer/rh & Lh, (2)				$ 90.72
165	318568301		Front Panel, Burner Box		Appelez-nous	-
13A	318259508		Glide, Warmer, Inner Lh				$ 27.88
17A	5304503475		Cover, Vent Trim, Black		Appelez-nous	-
1A	318300003		Panel, Warmer Drawer, Side, (2)				$ 56.13
20A	318909207		Grate, Burner, Black, Lh				$ 252.74
20B	318909404		Grate, Burner, Black, Center				$ 177.14
22A	5304508468		Cap, 17k Burner, Black   (Replaces: 316262104)				$ 49.45
22B	5304499569		Cap, G5 Burner, Bridge				$ 111.99
22C	5304508442		Cap, 9.5k Burner, Matte, Black   (Replaces: 316261804)			Immediately	$ 36.55
36A	318569901		Knob, Top Valve, Black, Dual				$ 105.58
46A	318568201		Box, Burner, Lh				$ 28.93
58G	318594402		Insulation, Flue   (Replaces: 318594401)				$ 245.64
NI	316021109		Screw, 8-18 X 0.5, Black   (Replaces: 316021110)			Immediately	$ 27.50
NI	5304501948		Screw, Tr Hd Phd, 8-18 X 3/16				$ 7.79
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 27.50
NI	807527301		Harness, Wiring, Warmer Drawer		Appelez-nous	-
NI	318163602		Cleaner, Stainless Steel				$ 26.51
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NIA	318534403		Gasket, Maintop			Immediately	$ 59.16

    View Diagram in Separate Window       Print Part List
