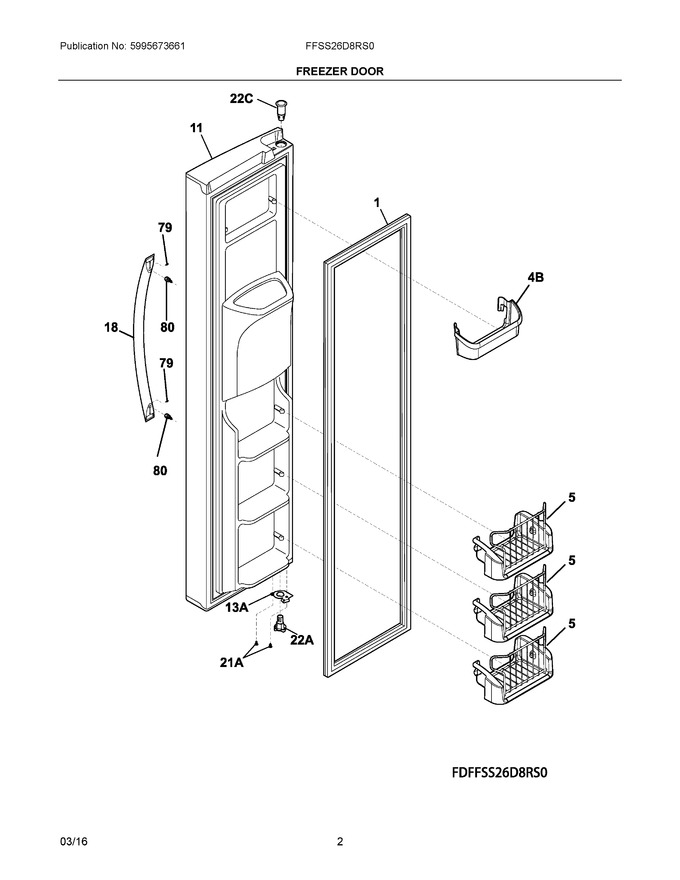

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 241786014 | Gasket-frzr Door, White, Magnetic (Replaces: 241786002) |
|
$ 95.17 | |||||
| 5 | 241545005 | Bin-tilt Out, Tilt-out |
|
$ 130.64 | |||||
| 11 | 242026446 | Door-frzr, Stainless, Complete Assy |
|
- | |||||
| 18 | 241531412 | Handle-door, Stainless Steel, With Set Screw |
|
$ 171.57 | |||||
| 79 | 218755402 | Screw-set, 10-32 X .500 In |
|
Immediately | $ 33.00 | ||||
| 80 | 218755504 | Screw-shoulder, #10 Ab, Handle Mounting (Replaces: 241531502) |
|
Immediately | $ 18.60 | ||||
| 13A | 240581906 | Door Stop, Black, Frzr |
|
$ 73.00 | |||||
| 21A | 240442708 | Screw-#10-32 X 3/4, Zinc (Replaces: 240442706) |
|
$ 8.34 | |||||
| 22A | 242000502 | Bearing-hinge, Black, Lower |
|
$ 7.18 | |||||
| 22C | 240328404 | Bearing-hinge, Black, Upper |
|
$ 22.87 | |||||
| 4B | 240334202 | Bin-door, Frzr-upper |
|
Immediately | $ 67.21 | ||||
| NI | 240451503 | Screw, Ind Hex Wshr Hd, 8-32 X 0.375, Trilobe |
|
$ 3.79 | |||||
| NI | 241806601 | Connector-water, Straight, 5/16 To 5/16 (Replaces: 242103001) |
|
Immediately | $ 70.56 | ||||
| NI | 240552102 | Harness-wiring, Door |
|
$ 77.60 |
