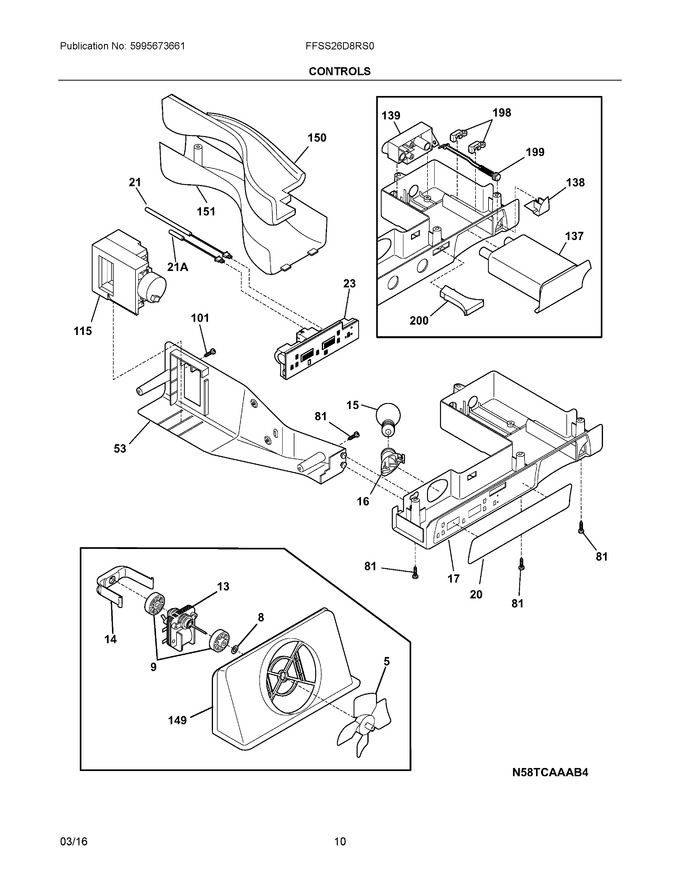

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 5 | 5308000010 | Fan Blade, Red, Evaporator Fan |
|
Immediately | $ 49.03 | ||||
| 8 | 215474201 | Washer, "slinger", Nylon, Evap Fan Shaft |
|
Immediately | $ 18.43 | ||||
| 9 | 241563601 | Bushing-motor Mtg |
|
Immediately | $ 17.72 | ||||
| 13 | 808602602 | Motor-evap Fan, W/harness (Replaces: 241854601) |
|
$ 203.63 | |||||
| 14 | 242135301 | Clip, Evap Fan Motor, Evap Fan Motor |
|
$ 7.79 | |||||
| 15 | 316538904 | Light Bulb (Replaces: 241555401) |
|
Immediately | $ 20.48 | ||||
| 16 | 218906802 | Socket-light (Replaces: 241513901) |
|
$ 17.72 | |||||
| 17 | 241608802 | Box-control, Front |
|
$ 59.73 | |||||
| 20 | 241603913 | Label-control Box |
|
$ 63.53 | |||||
| 21 | 241608401 | Thermistor-refr |
|
$ 77.97 | |||||
| 23 | 5304499060 | Control, Electronic, W/cover |
|
$ 337.47 | |||||
| 53 | 241608902 | Box-control |
|
$ 103.14 | |||||
| 81 | 5304455650 | Screw, Hex Washer Head, 8-15a X 0.625, Low Profile |
|
$ 14.18 | |||||
| 101 | 241637202 | Screw, Hex Sems Head, 8-18ab X 1-3/4 |
|
$ 5.31 | |||||
| 115 | 242303001 | Damper Assy, W/seal |
|
Immediately | $ 126.56 | ||||
| 138 | 240397301 | Button-filter Release |
|
$ 91.76 | |||||
| 139 | 240396002 | Base-water Filter |
|
Immediately | $ 119.66 | ||||
| 149 | 241563501 | Shroud-fan Orfice |
|
- | |||||
| 150 | 241505101 | Insulation-water Tube Cover |
|
- | |||||
| 151 | 241505001 | Cover-water Tube |
|
$ 84.68 | |||||
| 198 | 240397401 | Retainer |
|
$ 59.54 | |||||
| 199 | 240397501 | Rod |
|
$ 55.57 | |||||
| 200 | 240397601 | Light Pipe |
|
$ 76.65 | |||||
| 137A | WF2CB | Filter, Water, Carbon Cassette, Front, With O'rings (Replaces: 242007901) |
|
Immediately | $ 108.24 | ||||
| 21A | 241953902 | Screw, #8 - 18 X .380 |
|
Immediately | $ 17.11 | ||||
| 21AA | 242278801 | Thermistor Assembly, Refrig/freezer, W/connector |
|
Immediately | $ 86.47 | ||||
| NI | 240410602 | Shield-light, Refr |
|
- | |||||
| NI | 242227702 | Bypass, Water Filter, Optional Part (Replaces: 240396701) |
|
Immediately | $ 73.16 | ||||
| NIA | 240398401 | Spring-filter Release Rod |
|
$ 59.16 | |||||
| NIA | 241528306 | Seal, Shroud |
|
- | |||||
| NIA | 240527001 | O-ring, Wtr Filter Base (Replaces: 240526901) |
|
$ 10.62 |
