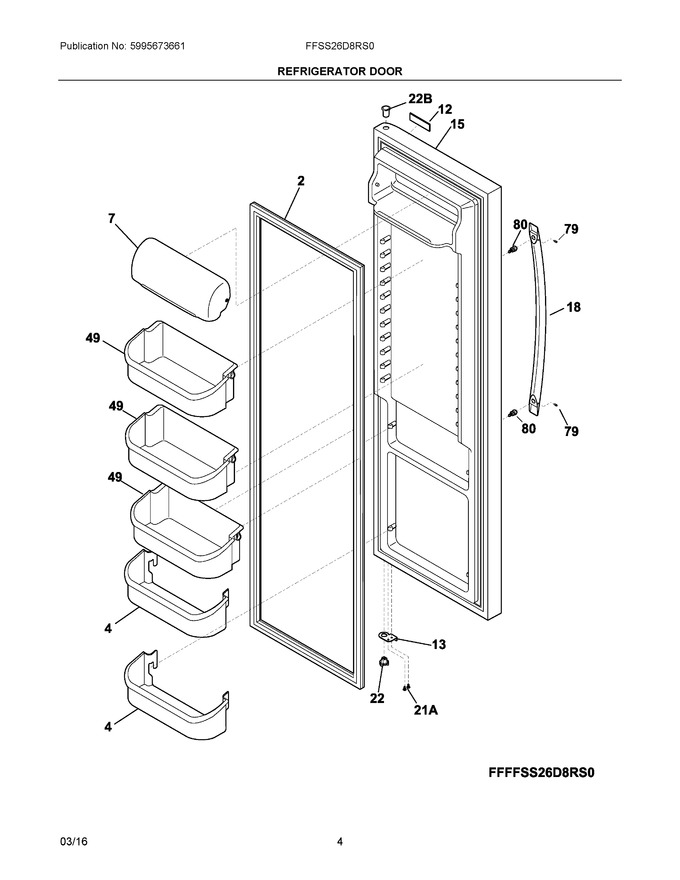

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 241786013 | Gasket-refr Door, White, Magnetic (Replaces: 241786001) |
|
$ 95.90 | |||||
| 4 | 240323002 | Bin-door, Pseudo, Clear, Bottom |
|
Immediately | $ 67.21 | ||||
| 7 | 240326203 | Door-dairy |
|
$ 40.37 | |||||
| 13 | 240581905 | Door Stop, Black, Ref |
|
$ 60.25 | |||||
| 15 | 242038841 | Door-refr, Stainless, Complete Assy |
|
- | |||||
| 18 | 241531412 | Handle-door, Stainless Steel, With Set Screw |
|
$ 171.57 | |||||
| 22 | 242015302 | Bearing-hinge(ref), Black, Closer |
|
$ 10.62 | |||||
| 49 | 240356402 | Bin-door, Gallon (Replaces: 241808205) |
|
Immediately | $ 106.83 | ||||
| 79 | 218755402 | Screw-set, 10-32 X .500 In |
|
Immediately | $ 33.00 | ||||
| 80 | 218755504 | Screw-shoulder, #10 Ab, Handle Mounting (Replaces: 241531502) |
|
Immediately | $ 18.60 | ||||
| 21A | 240442708 | Screw-#10-32 X 3/4, Zinc (Replaces: 240442706) |
|
$ 8.34 | |||||
| 22B | 240328404 | Bearing-hinge, Black, Upper |
|
$ 22.87 |
