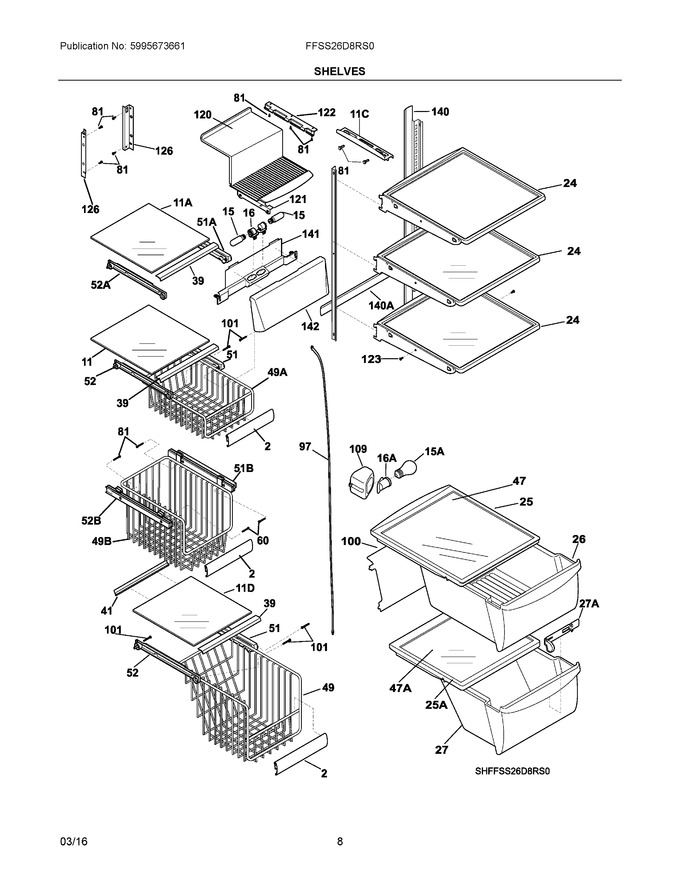

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	241510604		Trim-basket				$ 74.08
11	240350605		Shelf-freezer, Glass, Lower   (Replaces: 240350668)				$ 106.93
15	5304517886		Light Bulb   (Replaces: 241552801)			Immediately	$ 73.06
16	240590403		Socket-light, Top & Mid   (Replaces: 240590402)				$ 26.54
24	240350150		Shelf, Spill-safe, Sliding, Cantilever				$ 176.70
25	240599301		Cover-crisper Pan, Upper			Immediately	$ 94.38
26	240351061		Pan-crisper, Upper			Immediately	$ 110.01
27	240351240		Pan-crisper, Lower				$ 203.45
39	240367602		Trim-shelf, Front				$ 45.36
41	241571202		Trim-shelf, Rear		Appelez-nous	-
47	240350649		Insert-pan Cover, Glass			Immediately	$ 123.89
49	240530402		Basket-sliding				$ 232.16
51	240343002		Hanger-basket, Rh				$ 65.22
52	240343102		Hanger-basket, Lh				$ 69.77
60	218362501		Screw, Hex Washer Head, 8-18ab X 1.250, Spacer, (2)				$ 12.05
81	5304455650		Screw, Hex Washer Head, 8-15a X 0.625, Low Profile				$ 14.18
97	242220116		Tube-water, 113		Appelez-nous	-
100	240326304		Cover-water Tank				$ 73.57
101	218493101		Screw, Hex Washer Head, 8-18ab X 1-3/4				$ 13.46
109	240351301		Base-crisper Light Socket				$ 15.65
120	241691901		Shelf-ice Cream				$ 79.62
121	241561001		Rail-ice Cream Shelf, Lh				$ 101.63
122	241692001		Rail-ice Cream Shelf, Lh				$ 85.69
123	215005101		Screw, Hanger/rlr Mtg, 8-10 X 7/16				$ 14.89
126	241674401		Channel, Auger Mtg, Lh				$ 47.48
140	240430501		Channel, Wtr Tube Cover				$ 97.81
141	240585404		Bracket-light Socket				$ 99.49
142	240582703		Shield-light Mid Level				$ 99.49
11A	240350604		Shelf-freezer, Glass, Upper   (Replaces: 240350667)				$ 114.52
11C	240324101		Shelf-pizza				$ 59.91
11D	240350605		Shelf-freezer, Glass, Lower				$ 106.93
126A	241674402		Channel, Auger Mtg, Rh				$ 43.24
140A	240430503		Channel, Wtr Tube Cover		Appelez-nous	-
15A	316538904		Light Bulb   (Replaces: 241555401)			Immediately	$ 20.48
16A	218906802		Socket-light   (Replaces: 241513901)				$ 17.72
25A	240350903		Cover-crisper Pan, Lower			Immediately	$ 91.99
27A	240362201		Control-humidity				$ 69.46
47A	240350603		Insert-pan Cover, Glass			Immediately	$ 115.52
49A	240530502		Basket-sliding, Upper, Half				$ 201.08
49B	240530504		Basket-sliding, Upper, Full				$ 207.81
51A	240395502		Hanger-basket, Rh				$ 73.00
51B	240579801		Hanger-basket, Rh				$ 61.27
52A	240395602		Hanger-basket, Lh				$ 61.66
52B	240579802		Hanger-basket, Lh				$ 60.01
NIA	241537504		Harness-wiring		Appelez-nous	-
NIA	240349801		Clip-slide, Pan				$ 20.48
NIA	240362101		Clip-slide, Cover				$ 47.03
NIB	241595202		Clip-slide, Crisper				$ 18.20
