View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet
02 - Control Panel/door
03 - Tub/frame
04 - Motor/pump

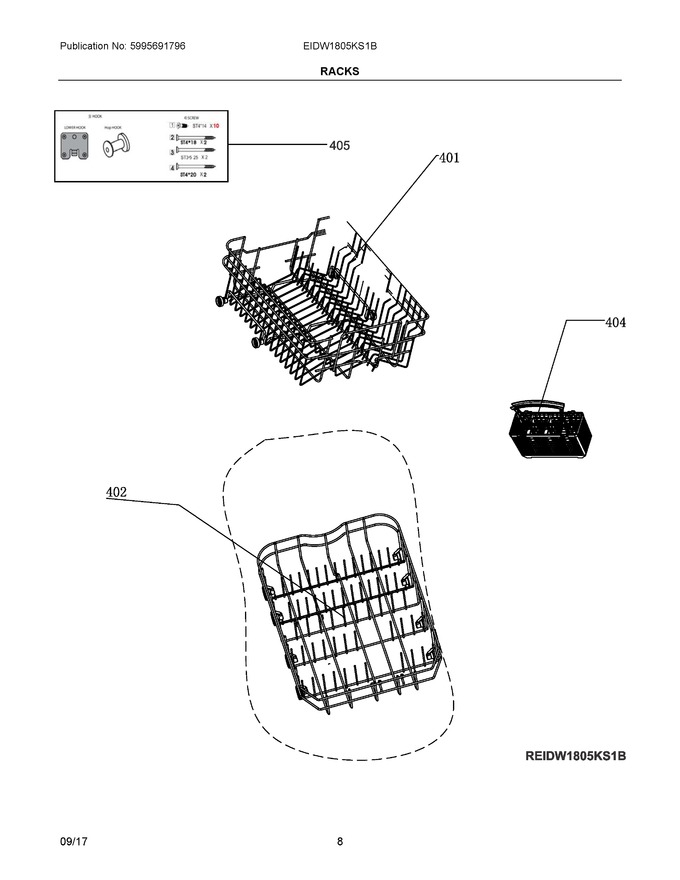

05 - Racks
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 401 | 5304534972 | Rack Assembly, Upper (Replaces: 5304483504) |
|
$ 140.49 | |||||
| 402 | 5304512896 | Rack Assembly, Lower |
|
$ 277.25 | |||||
| 404 | 5304513826 | Basket Assembly, Silverware |
|
$ 103.30 | |||||
| 405 | 5304513827 | Hardware Kit, Misc. Screws, W/lower Hook |
|
- |
