01 - Cover Sheet
02 - Control Panel/door
03 - Tub/frame

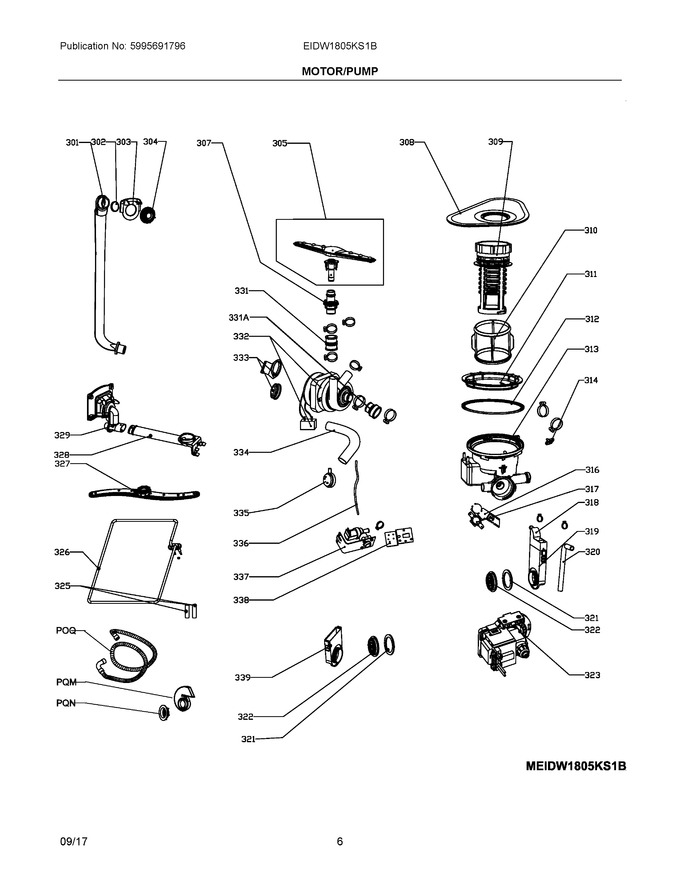

04 - Motor/pump
05 - Racks
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 301 | 5304512881 | Delivery Hose, Assembly |
|
$ 53.50 | |||||
| 302 | 5304482363 | O Ring, Delivery Tube, (2) |
|
$ 7.80 | |||||
| 303 | 5304483656 | Casing, Guide, Delivery Tube |
|
$ 13.28 | |||||
| 304 | 5304483657 | Nut, Pipe, Delivery Tube |
|
$ 15.08 | |||||
| 305 | 5304512884 | Spray Arm, Assembly, Lower, W/axis |
|
$ 104.19 | |||||
| 307 | 5304483452 | Connector Assembly, Spray Arm, Lower |
|
$ 33.86 | |||||
| 308 | 5304482464 | Filter Assembly, Screen, Stainless |
|
$ 103.01 | |||||
| 309 | 5304483438 | Filter Assembly |
|
$ 25.94 | |||||
| 310 | 5304483439 | Filter Assembly, Micro |
|
$ 51.46 | |||||
| 311 | 5304483440 | Nut, Sump Mtg. |
|
$ 19.14 | |||||
| 312 | 5304512882 | Gasket, Sump |
|
$ 24.57 | |||||
| 313 | 5304512883 | Sump Assembly |
|
$ 127.96 | |||||
| 314 | 5304483441 | Thermistor |
|
Immediately | $ 43.95 | ||||
| 316 | 5304482470 | Bracket, Thermostat |
|
$ 19.74 | |||||
| 317 | 5304482472 | Thermostat, 90 |
|
$ 21.06 | |||||
| 318 | 5304482391 | Cover, Water Tunnel |
|
$ 18.43 | |||||
| 319 | 5304482392 | Tunnel, Water |
|
$ 27.45 | |||||
| 320 | 5304483658 | Hose, Inlet, Tunnel |
|
- | |||||
| 321 | 5304482394 | Gasket, Ring Nut |
|
Immediately | $ 13.74 | ||||
| 322 | 5304483443 | Ring Nut |
|
$ 12.55 | |||||
| 323 | 5304483444 | Pump, Drain |
|
Immediately | $ 175.00 | ||||
| 324 | 154225602 | Hose, Drain (Replaces: 5304483456) |
|
Immediately | $ 45.37 | ||||
| 325 | 5304482462 | Casing, Haeting Element, (2) |
|
- | |||||
| 326 | 5304483447 | Element Assembly, Heating |
|
$ 165.11 | |||||
| 327 | 5304483659 | Spray Arm Assembly, Upper |
|
$ 46.46 | |||||
| 328 | 5304483660 | Fill Tube, Spray Arm, Upper |
|
$ 14.81 | |||||
| 329 | 5304483661 | Dispensing Assembly, Spray Arm, Upper |
|
$ 19.71 | |||||
| 331 | 5304512129 | Connector, Tubing |
|
$ 13.74 | |||||
| 332 | 5304512880 | Pump Assembly, Motor, W/capacitor |
|
$ 365.13 | |||||
| 333 | 5304483453 | Support Assembly, Motor, W/pad |
|
$ 31.03 | |||||
| 334 | 5304482473 | Duct, Connecting, External Pipe |
|
$ 24.68 | |||||
| 335 | 4056016522 | Switch, Pressure (Replaces: 5304482397) |
|
$ 25.52 | |||||
| 336 | 5304483455 | Hose, Pressure Switch |
|
$ 20.48 | |||||
| 337 | 5304482406 | Valve, Inlet |
|
Immediately | $ 69.62 | ||||
| 338 | 5304483457 | Support, Pressure Switch |
|
- | |||||
| 339 | 5304513823 | Tunnel, Water |
|
- | |||||
| 340 | 5304513824 | Air Inlet |
|
- | |||||
| 341 | 5304513825 | Nut, Air Breaker |
|
- | |||||
| 331A | 5304482455 | Duct, Connecting, (2) |
|
$ 20.58 | |||||
| NI | 5304513827 | Hardware Kit, Misc. Screws, W/lower Hook |
|
- |
