SELECT A DIAGRAM

01 - Cover Sheet


02 - Control Panel/door

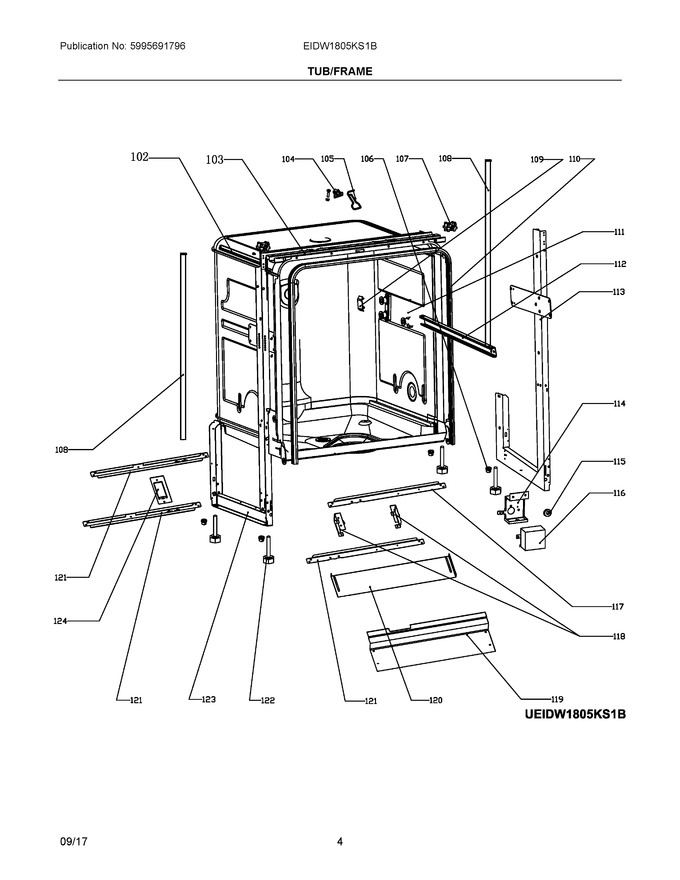

03 - Tub/frame


04 - Motor/pump


05 - Racks


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
102	5304513813		Tub Assembly				$ 443.94
103	5304483487		Brace Assembly, Upper, Black, Front				$ 53.60
104	5304512893		Block, Coupling				$ 3.69
105	5304483485		Hook, Door Lock				$ 19.89
106	5304482409		Holder, Leveling Foot, (4)				$ 12.02
107	5304482372		Block, Top, Black, (2)		Appelez-nous	-
108	5304483631		Guard, Tub Band, (2)				$ 17.64
109	5304483632		Cap, Guide Rail, (4)		Appelez-nous	-
110	5304512895		Gasket, Tub			Immediately	$ 53.91
111	5304512894		Roller Assembly, Tub, (4)		Appelez-nous	-
112	5304483489		Rail, Guide, Upper Rack, (2)				$ 43.24
113	5304482366		Upright Assembly, Rh				$ 146.74
114	5304483494		Cover, Junction Box				$ 21.97
115	5304483634		Grommet, Junction Box		Appelez-nous	-
116	5304483495		Box, Junction				$ 19.06
117	5304483502		Brace, Back, Lower				$ 23.85
118	5304483492		Support, Toeplate, (2)				$ 19.06
119	5304483497		Toe Plate, Black				$ 100.22
120	5304483500		Kick Plate, Adjustable, Black				$ 72.29
121	5304483501		Brace, Front, Lower, (3)				$ 38.80
122	5304509266		Foot, Leveling, (4)				$ 15.79
123	5304482365		Upright Assembly, Lh				$ 119.65
124	5304482411		Bracket, Motor Support		Appelez-nous	-
NI	5304513827		Hardware Kit, Misc. Screws, W/lower Hook		Appelez-nous	-
