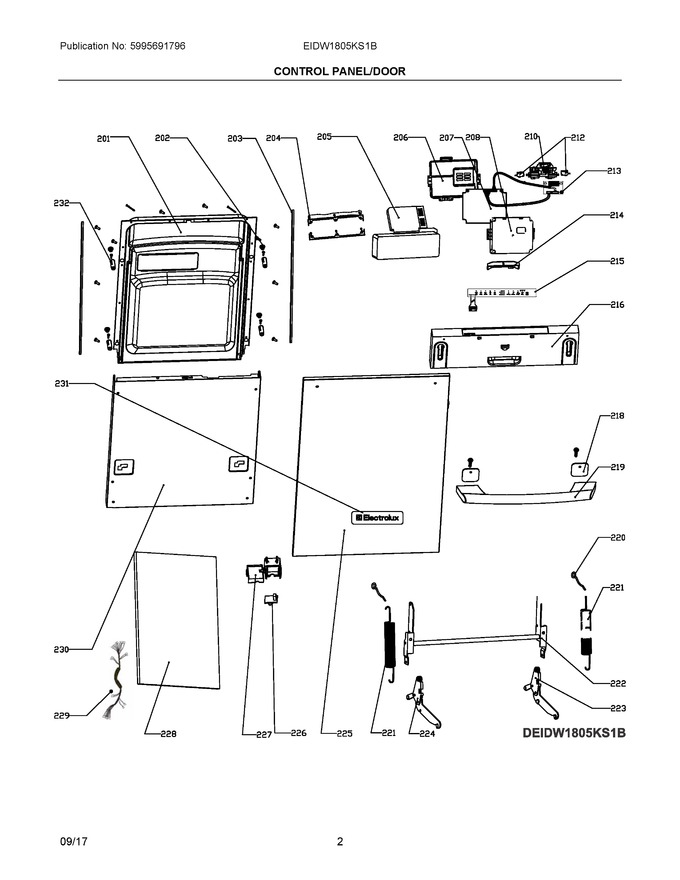

02 - Control Panel/door


03 - Tub/frame


04 - Motor/pump


05 - Racks


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
201	5304513814		Liner Assembly, Door, Inner		Appelez-nous	-
202	5304513815		Cap, Screw Cover, (4)		Appelez-nous	-
203	5304513816		Guard, Door, Black, Side, (2)		Appelez-nous	-
204	5304482449		Bracket, Dispenser Mtg., (2)		Appelez-nous	-
205	5304509278		Dispenser, Assembly				$ 231.58
206	5304483458		Cover, Control Board				$ 55.76
207	5304513817		Board Assembly, Control, Main				$ 197.19
208	5304512887		Box, Main Board				$ 106.27
210	5304512886		Latch, Door				$ 66.15
212	5304483463		Switch, Micro, (2), Latch Assembly			Immediately	$ 59.28
213	5304513818		Control Board, Small				$ 75.84
214	5304483641		Cover, Console		Appelez-nous	-
215	5304483642		Membrane, Touch Control, Assembly				$ 295.73
216	5304513819		Console Assembly		Appelez-nous	-
218	5304513820		Plate, Handle Support, (2)				$ 18.43
219	5304483646		Handle Assembly, Door				$ 239.66
220	5304482486		Bolt, Door Spring, (2)				$ 17.64
221	5304513821		Spring, Door Hinge, (2)		Appelez-nous	-
222	5304483476		Hinge Assembly, Door				$ 60.69
223	5304512889		Hinge, Door, Rh		Appelez-nous	-
224	5304512890		Hinge, Door, Lh		Appelez-nous	-
225	5304483647		Door Assembly, Outer				$ 392.28
226	5304483648		Indicator, Led				$ 32.45
227	5304483649		Cover, Led Indicator		Appelez-nous	-
228	5304483650		Insulation, Door, Foam		Appelez-nous	-
229	5304513822		Harness, Wiring, Main		Appelez-nous	-
230	5304483652		Frame, Door, Inner				$ 98.81
231	241873301		Nameplate, Electrolux   (Replaces: 5304483653)				$ 11.15
232	5304483654		Cover, Screw, (4)				$ 10.61
NI	5304484924		Energy Guide Label		Appelez-nous	-
NI	5304513827		Hardware Kit, Misc. Screws, W/lower Hook		Appelez-nous	-
