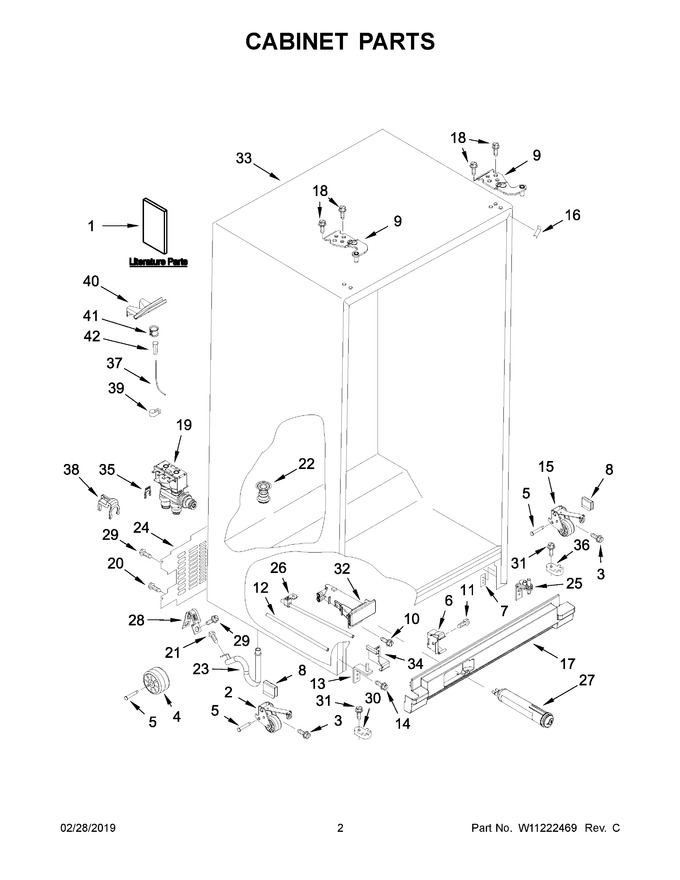

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11105307 | Use And Care Guide |
|
- | |||||
| 2 | WPW10304660 | Assembly, Roller (left Hand) (Replaces: W10304660) |
|
Immediately | $ 63.34 | ||||
| 3 | W11544561 | Screw (Replaces: 2152958) |
|
$ 12.65 | |||||
| 4 | WPW10475495 | Roller (Replaces: 2150304) |
|
Immediately | $ 28.85 | ||||
| 5 | W11594405 | Axle, Roller (Replaces: 2262072) |
|
Immediately | $ 16.39 | ||||
| 6 | WP2155013 | Clip, Grille (Replaces: 2155013) |
|
Immediately | $ 6.95 | ||||
| 7 | W11036715 | Plate, Screw (refrigerator) |
|
- | |||||
| 8 | W11594405 | Clip, Roller (Replaces: W11087168) |
|
Immediately | $ 16.39 | ||||
| 9 | W11579508 | Hinge, Top (grey (refrigerator)) (Replaces: W10900868) |
|
$ 31.55 | |||||
| 10 | WP489500 | Screw (Replaces: 489500) |
|
$ 7.00 | |||||
| 11 | WP489128 | Screw (Replaces: 8281149) |
|
$ 9.79 | |||||
| 12 | W11162036 | Tube, Filter Outlet (Replaces: W10900447) |
|
$ 103.24 | |||||
| 13 | W11687636 | Assembly, Bottom Hinge (freezer) (Replaces: W11093938) |
|
$ 62.48 | |||||
| 14 | WP489497 | Screw (Replaces: 3400113) |
|
Immediately | $ 26.18 | ||||
| 15 | WPW10304659 | Assembly, Roller (right Hand) (Replaces: W10304659) |
|
Immediately | $ 61.67 | ||||
| 16 | W11219642 | Filler, Wrapper (grey) (Replaces: W11189126) |
|
Immediately | $ 11.02 | ||||
| 17 | W11282544 | Grille (grey) (Replaces: W11226338) |
|
$ 110.40 | |||||
| 18 | WPW10308751 | Screw (black) (Replaces: W10308751) |
|
$ 7.57 | |||||
| 19 | WPW10179146 | Assembly, Filter Valve (Replaces: W10179146) |
|
Immediately | $ 89.52 | ||||
| 20 | WP488488 | Screw (Replaces: 489290) |
|
$ 6.91 | |||||
| 21 | WP489464 | Screw (Replaces: 489464) |
|
Immediately | $ 7.05 | ||||
| 22 | W11566763 | Fitting, Drain (Replaces: 2304888) |
|
Immediately | $ 45.81 | ||||
| 23 | W11512417 | Extension, Drain Fitting (Replaces: W10153550) |
|
$ 31.31 | |||||
| 24 | W11778265 | Cover, Unit (Replaces: W10904634) |
|
$ 82.35 | |||||
| 25 | W11399415 | Assembly, Bottom Hinge (refrigerator) (Replaces: W11097327) |
|
$ 62.81 | |||||
| 26 | W11162040 | Tube, Filter Inlet (Replaces: W10900449) |
|
$ 103.89 | |||||
| 27 | EDR1RXD1B | Filter, Water (Replaces: W10735398) |
|
Immediately | $ 49.99 | ||||
| 28 | 549193 | Clamp, Power Cord |
|
$ 12.05 | |||||
| 29 | WPW10141645 | Screw (Replaces: W10141645) |
|
$ 6.90 | |||||
| 30 | W11679635 | Closer, Door (freezer) (Replaces: W11095731) |
|
Immediately | $ 11.77 | ||||
| 31 | WP489483 | Screw (Replaces: W10142234) |
|
$ 9.78 | |||||
| 32 | W11162042 | Housing, Water Filter (grey) (Replaces: W11036338) |
|
Immediately | $ 134.84 | ||||
| 33 | N/P | Cabinet (not A Servicable Part) |
|
- | |||||
| 34 | W10897565 | Assembly, Bracket |
|
$ 61.62 | |||||
| 35 | W11676611 | Locking Ring (1/4) (Replaces: W11175632) |
|
$ 12.76 | |||||
| 36 | W11398787 | Closer, Lower Cam Door (refrigerator) (Replaces: W10905504) |
|
$ 12.52 | |||||
| 37 | W10823511 | Tube, Water (Replaces: W10357076) |
|
Immediately | $ 29.17 | ||||
| 38 | W11091654 | Connector, Double Lock |
|
Immediately | $ 19.04 | ||||
| 39 | W11456069 | Clamp, Tube (Replaces: M0108107) |
|
Immediately | $ 19.20 | ||||
| 40 | W11505385 | Chute, Water (Replaces: 2209774) |
|
$ 30.28 | |||||
| 41 | W10861184 | Clamp, Tube (Replaces: W10329003) |
|
$ 56.48 | |||||
| 42 | 4387491 | Insert, Tube (Replaces: 2181939) |
|
$ 7.06 | |||||
| 1A | W11193468 | Tech Sheet |
|
- | |||||
| 1B | W11090526 | Energy Guide |
|
- | |||||
| 35A | W11678575 | Locking Ring (5/16) (Replaces: W11175631) |
|
$ 12.77 | |||||
| 7A | W10904380 | Plate, Screw (freezer) |
|
$ 22.25 | |||||
| 9A | W11505709 | Hinge, Top (grey (freezer)) (Replaces: W10900869) |
|
$ 57.87 |
