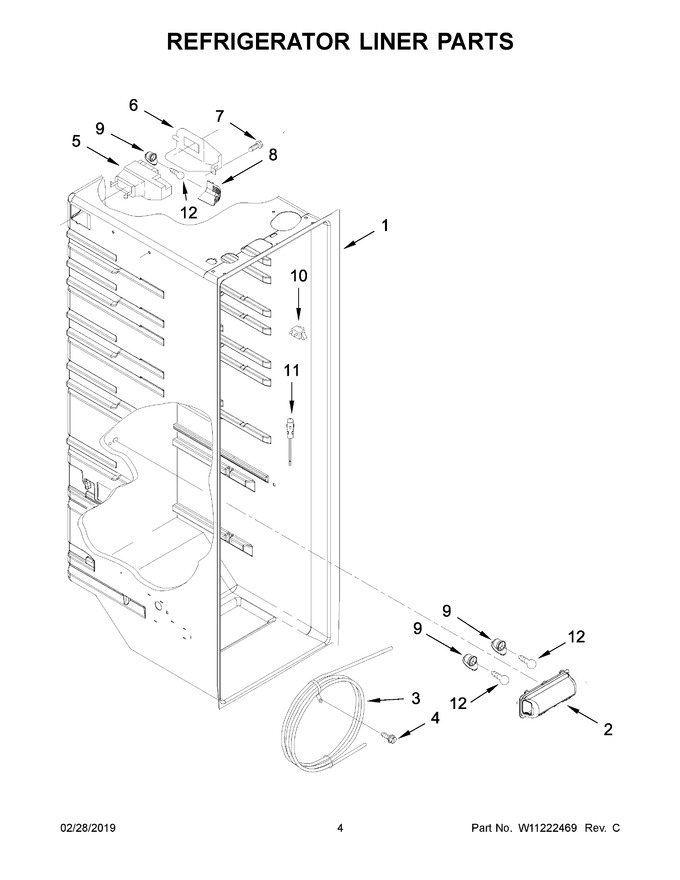

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Liner (not A Serviceable Part) |
|
- | |||||
| 2 | W11239891 | Lens, Light (includes Gasket) (Replaces: W10166130) |
|
$ 87.02 | |||||
| 3 | W11566768 | Tubing, Water Reservoir (Replaces: W11222026) |
|
$ 295.77 | |||||
| 4 | W10141518 | Screw |
|
$ 8.18 | |||||
| 5 | W11645127 | Assembly, Air Diffuser (Replaces: W11204060) |
|
Immediately | $ 77.26 | ||||
| 6 | W11048608 | Cover, Air Diffuser |
|
$ 76.39 | |||||
| 7 | W10759522 | Screw (Replaces: 486298) |
|
$ 6.98 | |||||
| 8 | W10900030 | Cover, Light |
|
- | |||||
| 9 | W11447232 | Socket, Light (Replaces: W10134764) |
|
Immediately | $ 11.89 | ||||
| 10 | W11384469 | Switch, Rocker Arm (Replaces: 1118894) |
|
Immediately | $ 33.51 | ||||
| 11 | WPW10384183 | Thermistor (Replaces: W10384183) |
|
Immediately | $ 101.55 | ||||
| 12 | W11216993 | Lamp, Led (Replaces: W11125625) |
|
Immediately | $ 38.92 |
