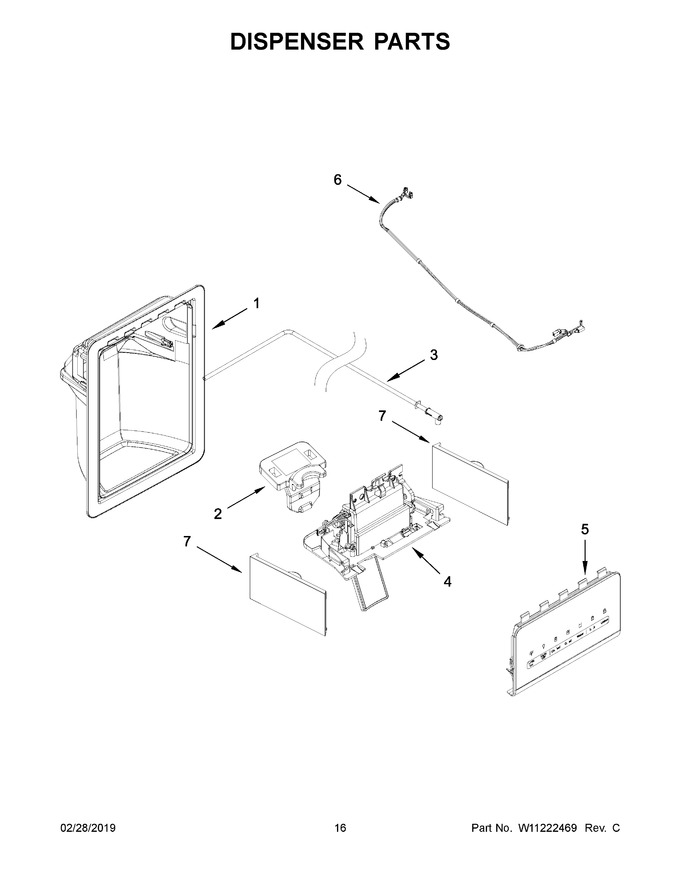

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Housing, Dispenser (not Serviced) |
|
- | |||||
| 2 | W11397167 | Retainer, Separator Hose (Replaces: W11039857) |
|
Immediately | $ 20.01 | ||||
| 3 | W11163765 | Assembly, Water Fitting (Replaces: W10898317) |
|
Immediately | $ 142.34 | ||||
| 4 | W11678832 | Assembly, Separator (grey) (Replaces: W11024793) |
|
Immediately | $ 163.75 | ||||
| 5 | W11518204 | Assembly, User Interface (includes Light Feature) (black) (Replaces: W11169239) |
|
Immediately | $ 286.60 | ||||
| 6 | W10913117 | Harness, Wire |
|
- | |||||
| 7 | W11311799 | Cover, Front (black (left Hand)) (Replaces: W11032324) |
|
$ 88.05 | |||||
| 7A | W11311800 | Cover, Front (black (right Hand)) (Replaces: W11032326) |
|
Immediately | $ 91.13 |
