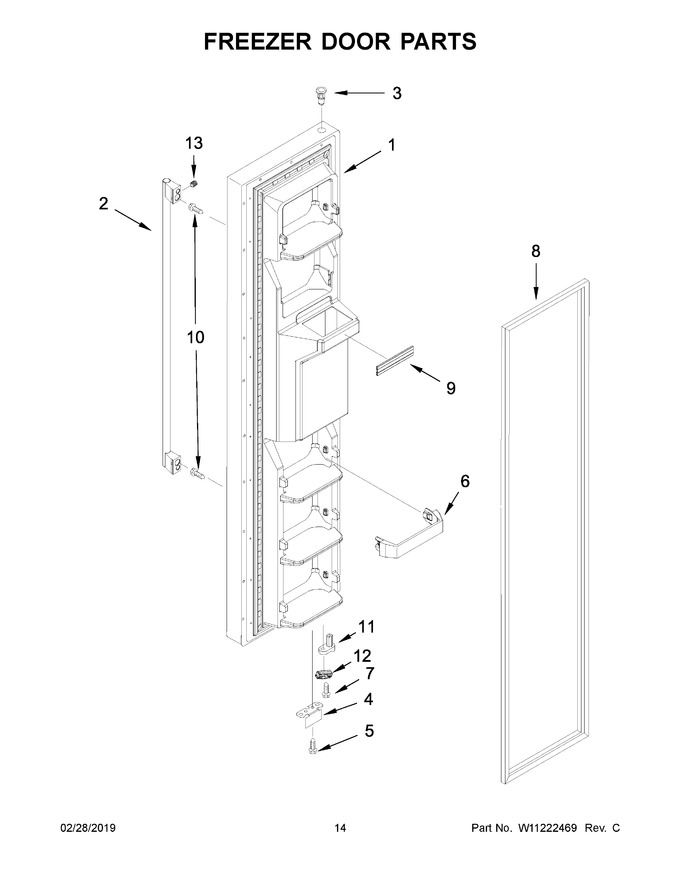

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LW10904379 | Door, Freezer (includes Item 8) (stainless) (Replaces: W10904379) |
|
$ 635.02 | |||||
| 2 | WPW10202821 | Handle (stainless) (Replaces: W10202821) |
|
$ 261.05 | |||||
| 3 | WP2182181 | Thimble (Replaces: 2200087) |
|
$ 6.98 | |||||
| 4 | W11557261 | Bracket, Door Stop (black) (Replaces: W10900531) |
|
Immediately | $ 16.00 | ||||
| 5 | WPW10296816 | Screw (Replaces: W10296816) |
|
$ 6.77 | |||||
| 6 | WP2309718 | Trivet (Replaces: 2309718) |
|
$ 52.70 | |||||
| 7 | WPW10296804 | Screw (Replaces: W10296804) |
|
$ 9.77 | |||||
| 8 | WPW10136734 | Gasket, Door (grey) (Replaces: W10911389) |
|
$ 287.48 | |||||
| 9 | WPW10307490 | Trim, Door Shelf (Replaces: W10307494) |
|
Immediately | $ 20.80 | ||||
| 10 | WPW10661886 | Screw (Replaces: W10460893) |
|
Immediately | $ 10.67 | ||||
| 11 | W11661926 | Thimble, Cam (Replaces: W10900532) |
|
Immediately | $ 12.02 | ||||
| 12 | W11573367 | Bumper, Door (grey) (Replaces: W10407188) |
|
Immediately | $ 20.02 | ||||
| 13 | W11366418 | Set Screw (silver) (Replaces: W10010140) |
|
Immediately | $ 14.21 |
