01 - Cover Sheet


02 - Door


03 - Cabinet


04 - Shelves And Evaporator


05 - Compressor Compartment


06 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart

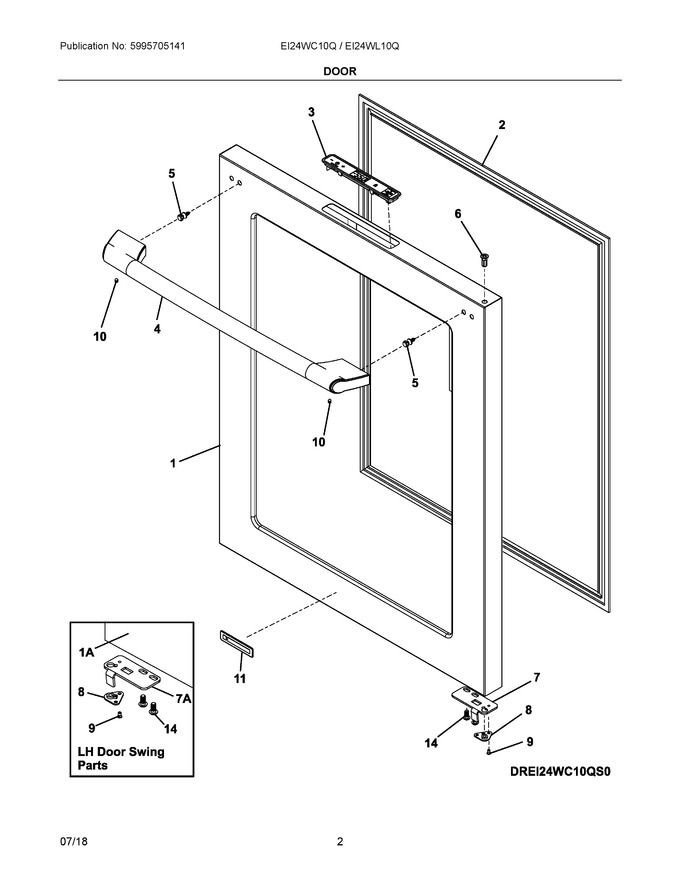

1	5304496845		Door Assembly, Rh Swing				$ 2,652.62
2	5304496807		Gasket, Magnetic, Black				$ 314.88
3	5304496847		User Interface, Assembly				$ 674.00
4	5304496717		Handle, Door/drawer, Stainless				$ 609.20
5	218755504		Screw, Shoulder, #10-ab, Handle Mounting			Immediately	$ 18.60
6	5304496848		Bushing, Hinge Pin, Upper				$ 8.99
7	5304496810		Stop, Door, Rh Swing		Appelez-nous	-
8	5304496812		Cam, Follower, Door Closer				$ 36.86
9	5304496813		Rivet, Pop, 1/8", Steel		Appelez-nous	-
10	5304496722		Screw, Set, #10-32 X 1/4", Cone Point		Appelez-nous	-
11	241873301		Nameplate, Electrolux, Stainless				$ 11.15
14	5304496815		Screw, Button Head, 1/4-20 X 1/2", White		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
