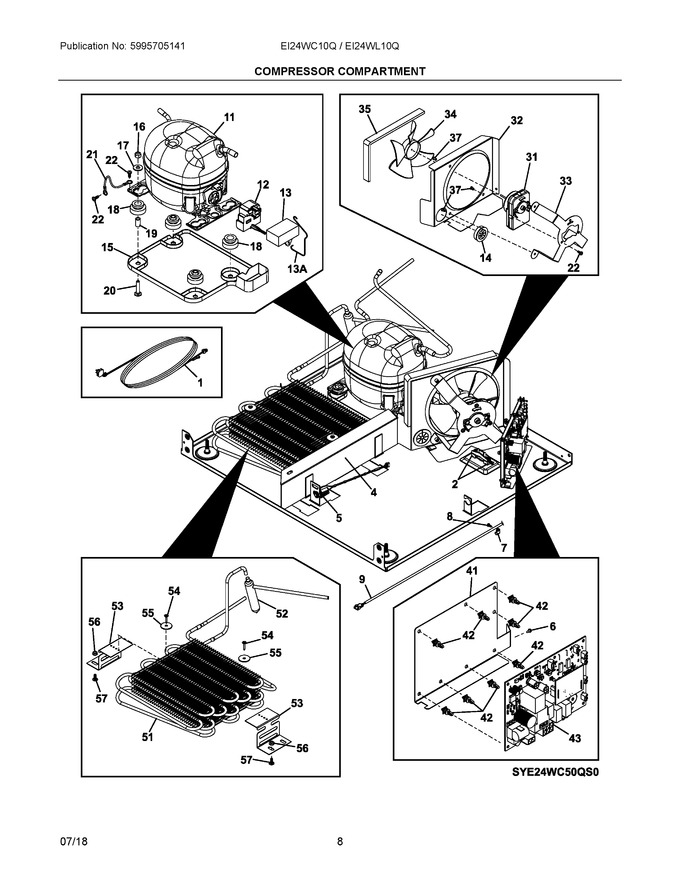

04 - Shelves And Evaporator


05 - Compressor Compartment


06 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304496763		Cord, Power		Appelez-nous	-
2	5304496764		Clamp, Power Cord, W/screws		Appelez-nous	-
4	5304496765		Baffle, Air		Appelez-nous	-
5	5304496766		Port, Data Aquisition		Appelez-nous	-
6	5304496732		Screw, Hex Washer Head, #10 X 1/2		Appelez-nous	-
7	5304496748		Clamp, "p" Style		Appelez-nous	-
8	5304496842		Screw, Ph Pan Head, #8-21 X 1/4		Appelez-nous	-
9	5304496843		Harness, Communication		Appelez-nous	-
11	5304496767		Compressor				$ 713.11
12	5304496768		Electrical Package, Compressor		Appelez-nous	-
13	5304496769		Capacitor, Run		Appelez-nous	-
14	5304496738		Grommet, Heyco		Appelez-nous	-
15	5304496771		Drain Pan, Defrost		Appelez-nous	-
16	5304496772		Nut, Lock, 1/4-20 Hex		Appelez-nous	-
17	5304496773		Washer, Flat		Appelez-nous	-
18	5304496774		Grommet		Appelez-nous	-
19	5304496775		Sleeve		Appelez-nous	-
20	5304496776		Bolt, Carriage, 1/4-20 X 1-1/4		Appelez-nous	-
21	5304496777		Wire, Ground		Appelez-nous	-
22	5304496778		Screw, Ph Pan Head, #8-32 X 3/8		Appelez-nous	-
31	5304496779		Motor, Fan				$ 497.91
32	5304496780		Shround, Fan Motor				$ 72.72
33	5304496781		Bracket, Fan Motor Mtg.				$ 38.12
34	5304496782		Blade, Fan Motor				$ 65.16
35	5304496783		Pad, Foam				$ 20.48
37	5304496784		Rivet, Pop, 3/16", Steel		Appelez-nous	-
41	5304496785		Bracket, Pc Board Mtg.		Appelez-nous	-
42	5304496786		Standoff, Control Board		Appelez-nous	-
43	5304498728		Control Board, Assembly, Main				$ 1,092.60
51	5304496788		Condenser, Tube And Wire				$ 194.04
52	5304496789		Drier, Filter				$ 149.36
53	5304496790		Bracket, Condenser Mtg.		Appelez-nous	-
54	5304496791		Screw, Tp Ab Flat Head, #8 X 3/4		Appelez-nous	-
55	5304496792		Washer, Flat, 7/32"id X 1"od		Appelez-nous	-
56	5304496793		Nut, Hex, #10-24		Appelez-nous	-
57	5304496794		Bolt, Carriage, #10-24 X 1/2		Appelez-nous	-
13A	5304496770		Strap, Bail		Appelez-nous	-
