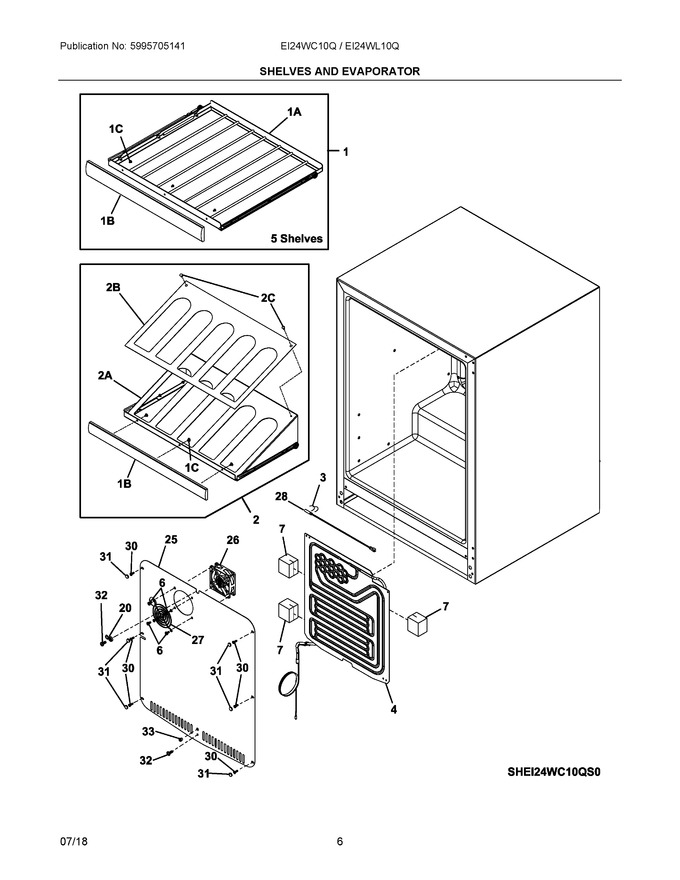

04 - Shelves And Evaporator


05 - Compressor Compartment


06 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304496851		Shelf Assembly, Wine, Complete				$ 523.26
2	5304496854		Shelf Assembly, Display, Complete, W/mat		Appelez-nous	-
3	5304496755		Cable Tie		Appelez-nous	-
4	5304496756		Evaporator Assembly, Kit				$ 319.64
6	5304496732		Screw, Hex Washer Head, #10 X 1/2		Appelez-nous	-
7	5304496757		Support, Evaporator, Foam Block		Appelez-nous	-
20	5304496839		Cover, Screw, Plastic, Black		Appelez-nous	-
25	5304496840		Cover, Evaporator Coil, Black		Appelez-nous	-
26	5304496760		Motor, Evaporator Fan		Appelez-nous	-
27	5304496761		Guard, Fan		Appelez-nous	-
28	5304496746		Sensor, Temperature				$ 89.50
30	5304496762		Screw, Kappet, #8-18 X 1		Appelez-nous	-
31	5304496832		Cap, Snap, Black		Appelez-nous	-
32	5304496816		Screw, Ph Pan Head, #8-15 X 3/8		Appelez-nous	-
33	5304496841		Rivnut, Hex, #10-32		Appelez-nous	-
1A	5304496834		Shelf, Wine, W/slides		Appelez-nous	-
1B	5304496852		Trim, Shelf		Appelez-nous	-
1C	5304496853		Screw, #8-32 X 1/4		Appelez-nous	-
2A	5304496855		Frame Assembly, Display Shelf		Appelez-nous	-
2B	5304496856		Mat, Display Shelf, Black		Appelez-nous	-
2C	5304496857		Plug, Button		Appelez-nous	-
