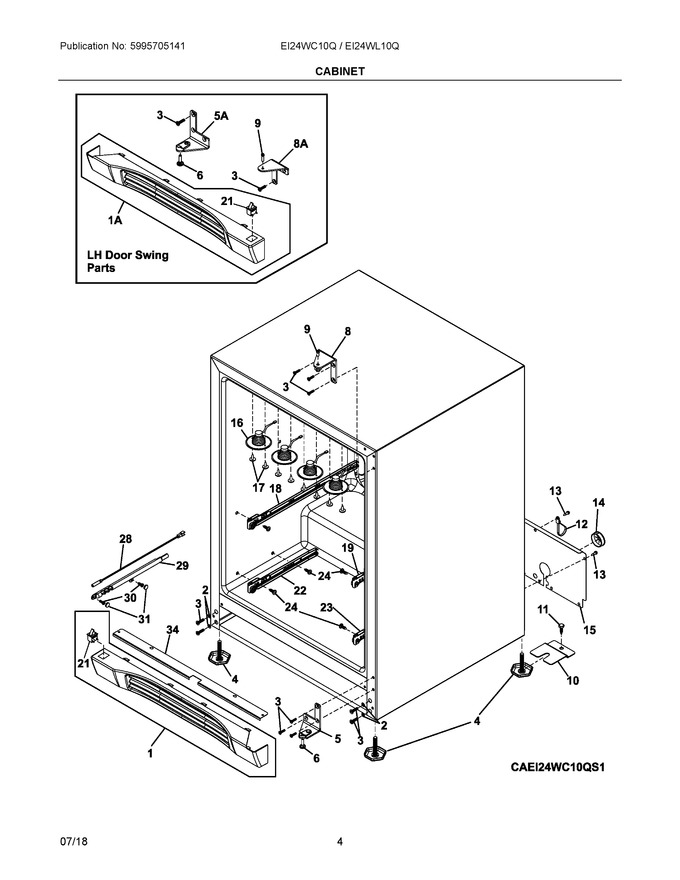

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304518412		Grille, Rh Door Swing				$ 386.77
2	5304496728		Washer, Flat, #10 Countersunk		Appelez-nous	-
3	5304496729		Screw, Ph Cntrsnk Hd, #10-32 X 3/4		Appelez-nous	-
4	5304496730		Leg, Leveler				$ 74.08
5	5304496819		Hinge, Door Bottom, Rh Swing		Appelez-nous	-
6	5304496821		Pin, Bottom Hinge		Appelez-nous	-
8	5304496822		Hinge, Door Top, Rh Swing				$ 238.93
9	5304496824		Pin, Top Hinge				$ 217.59
10	5304496735		Bracket, Anti-tip		Appelez-nous	-
11	5304496736		Screw, Lag, Hex Head, 5/16-18 X 1		Appelez-nous	-
12	5304496737		Cable Tie, Mount, (pack Of 10)		Appelez-nous	-
13	5304496732		Screw, Hex Washer Head, #10 X 1/2		Appelez-nous	-
14	5304496738		Grommet, Heyco		Appelez-nous	-
15	5304496739		Cover, Access		Appelez-nous	-
16	5304520842		Light Assembly, Led   (Replaces: 241904202)				$ 215.46
17	5304496740		Screw, Ph Flat Head, #4 X 1/2		Appelez-nous	-
18	5304496825		Slide, Outer, 400mm, Lh				$ 56.94
19	5304496826		Slide, Outer, 400mm, Rh				$ 55.02
21	5304507946		Switch, Rocker, New Part In Kit				$ 73.00
22	5304496828		Slide, Outer, 250mm, Lh		Appelez-nous	-
23	5304496829		Slide, Outer, 250mm, Rh				$ 56.44
24	5304496754		Screw, Csk. Head, #8-18 X 1-1/4		Appelez-nous	-
28	5304496830		Sensor, Temperature				$ 130.41
29	5304496831		Cover, Sensor, Black		Appelez-nous	-
30	5304496762		Screw, Kappet, #8-18 X 1		Appelez-nous	-
31	5304496832		Cap, Snap, Black		Appelez-nous	-
34	5304496742		Bracket, Grille, Black		Appelez-nous	-
