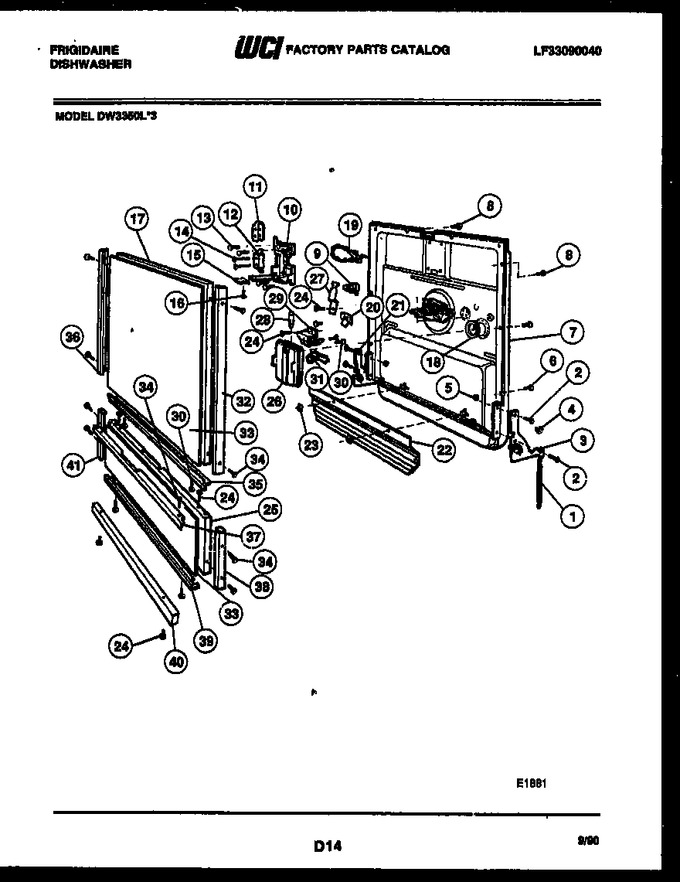

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5300809360 | Spring - Door |
|
$ 47.67 | |||||
| 2 | 5300803311 | Screw (4) |
|
- | |||||
| 3 | 5300805681 | Arm Assy. Rh |
|
$ 98.70 | |||||
| 4 | 5300805884 | Pad-spring (2) |
|
- | |||||
| 5 | 5300808470 | Nut (4) |
|
- | |||||
| 6 | 5300809055 | Screw (4) |
|
$ 1.21 | |||||
| 7 | 5300809054 | Door Assy |
|
- | |||||
| 8 | 5300808749 | Screw (6) |
|
- | |||||
| 9 | 5300808956 | Thermostat (water Heat) |
|
$ 3.78 | |||||
| 10 | 5300807016 | Latch Assy |
|
- | |||||
| 11 | 5300807450 | Cover - Switch |
|
- | |||||
| 12 | 5300807043 | Switch |
|
- | |||||
| 13 | 5300809029 | Screw (5) |
|
- | |||||
| 14 | 5300808618 | Screw (2) |
|
- | |||||
| 15 | 5300808712 | Knob - Latch |
|
$ 31.71 | |||||
| 16 | 5300808715 | Screw |
|
- | |||||
| 17 | 5300807262 | Panel - Door (white) |
|
- | |||||
| 18 | 5303212561 | Grommet - Dispenser |
|
- | |||||
| 19 | 5300809075 | Tie - Wire |
|
- | |||||
| 20 | 5300808933 | Terminal - Ground |
|
- | |||||
| 21 | 5300805682 | Arm Assy L.h. |
|
$ 93.56 | |||||
| 22 | 5300809025 | Baffle - Seal |
|
$ 56.49 | |||||
| 23 | 5300809026 | Speednut (2) |
|
- | |||||
| 24 | 154419403 | Screw (7) (Replaces: 5300808658) |
|
$ 13.10 | |||||
| 25 | 5300809108 | Panel - Access (white) |
|
- | |||||
| 26 | 5300806753 | Body Assy. |
|
$ 69.93 | |||||
| 27 | 5300809097 | Retainer-thermostat |
|
- | |||||
| 28 | 5300809898 | Plunger |
|
$ 36.49 | |||||
| 29 | 5300809109 | Bi-metal |
|
$ 38.48 | |||||
| 30 | 3018065 | Screw |
|
- | |||||
| 31 | 5300807673 | Fill Plug |
|
- | |||||
| 32 | 5300809912 | Trim - Door Rh |
|
- | |||||
| 33 | 5300808804 | Black |
|
- | |||||
| 33 | 5300808755 | Platinum |
|
- | |||||
| 33 | 5300807644 | Coffee |
|
- | |||||
| 33 | 5300809196 | Toast |
|
- | |||||
| 33 | 5300808909 | Avocado |
|
- | |||||
| 33 | 5300808908 | Almond |
|
- | |||||
| 33 | 5300808912 | Wheat |
|
- | |||||
| 34 | 5300809752 | Screw |
|
- | |||||
| 35 | 5300807347 | Trim - Door Bottom |
|
- | |||||
| 36 | 5300808918 | Trim - Door Lh |
|
- | |||||
| 37 | 5300808346 | Trim - Access Top |
|
- | |||||
| 38 | 5300809914 | Trim - Access Rh |
|
- | |||||
| 39 | 5300808521 | Trim - Access Bottom |
|
- | |||||
| 40 | 5300808522 | Toe Plate |
|
- | |||||
| 41 | 5300809915 | Trim - Access Lh |
|
- |
