Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 5300806353 Screw-10-32 X 2 1/4`` Special Order $ 12.06

2 5300803923 Seal Installation Tool Special Order $ 57.38

3 5300809004 Heater (includes 18 & 19) Appelez-nous -
4 5300809918 Upper Impeller Special Order $ 83.45

5 3100003901 Macerator Appelez-nous -
6 5300807359 Screw 10 X 1 3/4`` Appelez-nous -
7 5300809921 Spacer Plate Special Order $ 12.39

8 5300809006 Pump Plate Special Order $ 45.94

9 5300809007 Pump Gasket Special Order $ 18.06

10 5300806521 O-ring Special Order $ 32.42

11 5300809910 Pump Seal Kit (includes 9 & 11) Appelez-nous -
12 5300803903 Water Seal Special Order $ 109.86

13 5300809008 Gasket Special Order $ 4.99

14 5300807268 Screw 10 X 1`` Special Order $ 5.93

15 5300809939 Housing Special Order $ 88.83

16 3018117 Hose Clamp Appelez-nous -
17 5300808174 Connector Hose Special Order $ 19.06

18 5303351028 Heater Grommet Appelez-nous -
19 154106202 Heater Nut 1/2-20 Brass   (Replaces: 5300806834) In-Stock Immediately $ 18.32

20 3018119 Screw-8 X 5/8`` Appelez-nous -
21 5300809022 Screw-10 X 1`` Appelez-nous -
22 5300807712 Clamp Ring Appelez-nous -
23 5300809366 Watershield Assembly Special Order $ 2.26

24 5300809985 Motor Assy (includes 1, 7, & 14) Appelez-nous -
25 5300808185 Elbow & Tube Assy Appelez-nous -
26 5300808184 Gasket Appelez-nous -
27 5300808183 Distributor Special Order $ 16.70

28 5300809021 Spray Arm Assembly Special Order $ 34.07

29 5300808181 Nut Special Order $ 6.62

30 5300808180 Tower Tip Special Order $ 10.97

31 5300808179 Tower Section Special Order $ 14.02

32 5300808178 Tower Base Appelez-nous -
33 5300809018 Spray Arm Bolt Appelez-nous -
34 5300809954 Spray Arm Assembly Special Order $ 145.95

35 5300809938 Spray Arm Shield Special Order $ 37.05

36 5300809012 Screw-10-2 7/8`` Special Order $ 8.03

37 5300809011 Filter Body Assembly (includes Diffuser) Appelez-nous -
38 5300809015 O-ring Special Order $ 6.09

39 5300809014 Diffuser Appelez-nous -
40 0809073 Screw-8 X 3/4`` Appelez-nous -
41 5300809016 O-ring Special Order $ 5.83

42 3018031 Clamp Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

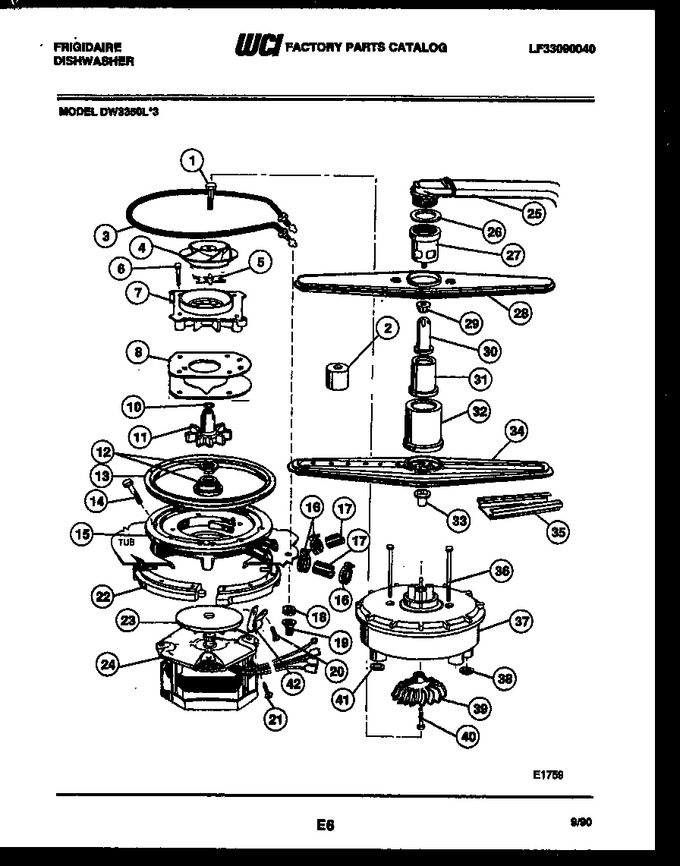

Diagram for DW3350LW3
