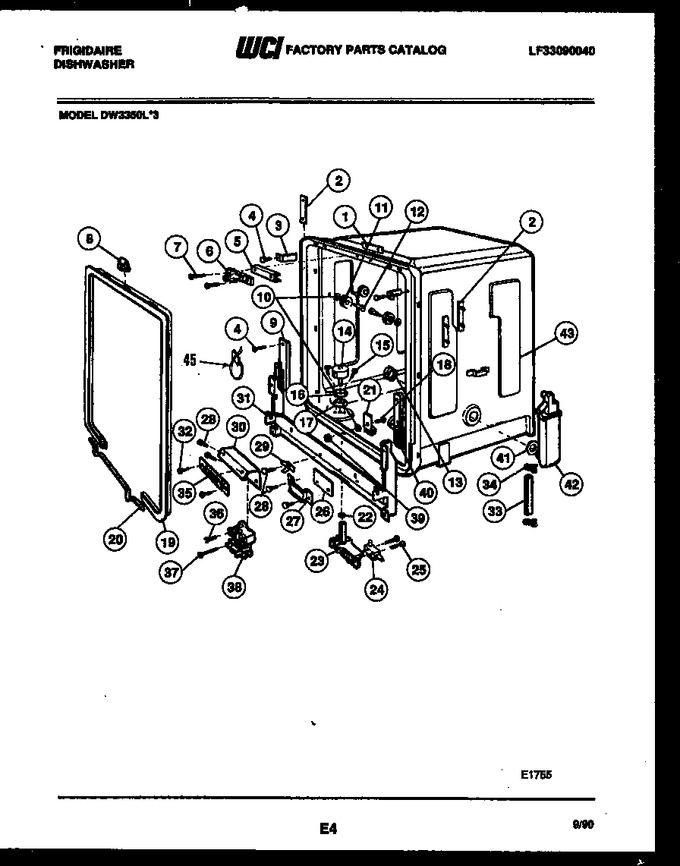

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5300808868 | Plate - Latch |
|
- | |||||
| 2 | 3018073 | Plate - Tapping |
|
- | |||||
| 3 | 5300807454 | Pad - Tub |
|
- | |||||
| 4 | 809446 | Screw |
|
- | |||||
| 5 | 5300809214 | Shim - Strike |
|
- | |||||
| 6 | 5300807015 | Strike - Door |
|
- | |||||
| 7 | 131302901 | Screw (Replaces: 5300806890) |
|
$ 4.96 | |||||
| 8 | 5300805763 | Tub Gasket Clip Kit (includes 21) |
|
- | |||||
| 9 | 5300807470 | Arm Guide L H |
|
- | |||||
| 10 | 5300809044 | Washer |
|
- | |||||
| 11 | 5304507405 | Roller - Tub (Replaces: 5300809917) |
|
Immediately | $ 25.79 | ||||
| 12 | 5300808564 | Screw & Washer Kit (includes 10) |
|
$ 34.02 | |||||
| 13 | 5300805669 | Nut |
|
- | |||||
| 14 | 5300809861 | Float |
|
- | |||||
| 15 | 3014699 | Screw |
|
- | |||||
| 16 | 5300808064 | Plate - Float |
|
- | |||||
| 17 | 5300808063 | Gasket - Float |
|
$ 6.14 | |||||
| 18 | 3018081 | Screw |
|
- | |||||
| 19 | 5300809035 | Gasket & Wire (includes 8 & 20) |
|
- | |||||
| 20 | 5300808959 | Wire - Gasket |
|
- | |||||
| 21 | 3018082 | Clip |
|
- | |||||
| 22 | 3018083 | O - Ring |
|
- | |||||
| 23 | 5300809859 | Float Switch Kit (includes 14, 16, 17, 22, 24 & 25) |
|
- | |||||
| 24 | 5300809863 | Switch - Float |
|
$ 65.73 | |||||
| 25 | 5300809864 | Screw |
|
- | |||||
| 26 | 5300809144 | Shield - Wire |
|
- | |||||
| 27 | 5300806723 | Clamp - Wire |
|
- | |||||
| 28 | 3018067 | Screw |
|
- | |||||
| 29 | 5300808933 | Terminal - Ground |
|
- | |||||
| 30 | 5300807849 | Bracket |
|
- | |||||
| 31 | 5300808739 | Hinge |
|
- | |||||
| 32 | 3018065 | Screw |
|
- | |||||
| 33 | 5300807891 | Tubing - Inlet (includes 34) |
|
- | |||||
| 34 | 5300807813 | Clamp (2) |
|
- | |||||
| 35 | 5300809830 | Terminal Block |
|
- | |||||
| 36 | 3018140 | Screw |
|
- | |||||
| 37 | 3018141 | Screw |
|
- | |||||
| 38 | 53003014653 | Relay - Motor |
|
- | |||||
| 39 | 83350-2 | Nut |
|
- | |||||
| 40 | 5300807471 | Arm Guide R H |
|
- | |||||
| 41 | 3018091 | Gasket-inlet |
|
- | |||||
| 42 | 5300806470 | Water Inlet |
|
- | |||||
| 43 | 5300809347 | Tub & Gasket Assy |
|
- | |||||
| 45 | 3202618 | Wire Tie |
|
- | |||||
| *35148 | 5303018096 | Tub Touch - Up Kit (optional) |
|
- |
