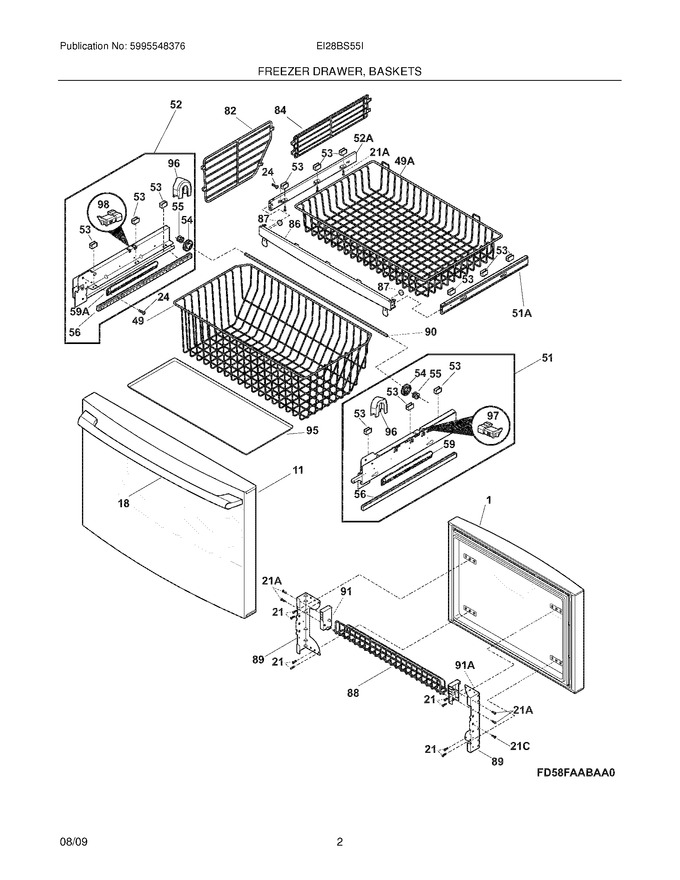

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	7241987901		Drawer,white ,freezer		Appelez-nous	-
11	7241987902		Drawer,freezer		Appelez-nous	-
11	7241987903		Drawer,stainless ,freezer		Appelez-nous	-
18	7241881323		Handle-frzr Drawer,black		Appelez-nous	-
21	7240383407		Screw,truss Hd Quad ,no.10-16 X .500 ,white		Appelez-nous	-
24	7240383406		Screw,truss Hd Quad ,no.10-16 X .500 ,zinc		Appelez-nous	-
49	7242026801		Basket-frzr,lower		Appelez-nous	-
51	241883604		Slide Assembly,basket Lower ,rh ,freezer Drawer   (Replaces: 7241883601)			Immediately	$ 287.06
52	241883704		Slide Assembly,basket Lower ,lh ,freezer Drawer   (Replaces: 7241883701)				$ 350.37
53	7241824201		Retainer-basket		Appelez-nous	-
54	7241770201		Pinion		Appelez-nous	-
55	7241770301		Pinion-idler		Appelez-nous	-
56	7241762801		Rack,drawer Travel		Appelez-nous	-
59	7241979702		Closure,drawer		Appelez-nous	-
82	7242026901		Divider,basket		Appelez-nous	-
84	7241780901		Divider,basket ,upper		Appelez-nous	-
86	7241953202		Bar,stabalizer ,freezer Drawer		Appelez-nous	-
87	7241812202		Magnet,freezer Drawer		Appelez-nous	-
88	7241824002		Rack-tilt Out,door		Appelez-nous	-
89	241972302		Bracket-freezer Drawer   (Replaces: 7241972301)				$ 109.21
90	7241770702		Bar,timing		Appelez-nous	-
91	7241824102		Cap-door Rack		Appelez-nous	-
95	7241770802		Tray,spill Guard		Appelez-nous	-
96	7241973501		Cover,pinion ,white		Appelez-nous	-
97	7241926401		Actuator,rh ,white ,light		Appelez-nous	-
98	7241926402		Actuator,lh ,white ,light		Appelez-nous	-
21A	241953902		Screw,no.8 - 18 X .380   (Replaces: 7241953902)			Immediately	$ 17.11
21C	7241899701		Screw-no.10-32 X 3/8 Truss Head,truss Head,no.10-32 X 3/8 ,zinc		Appelez-nous	-
49A	7241780802		Basket-frzr,upper		Appelez-nous	-
51A	7241894201		Slide Assembly,basket ,rh ,freezer Drawer		Appelez-nous	-
52A	7241894203		Slide Assembly,basket ,lh ,freezer Drawer		Appelez-nous	-
59A	7241979701		Closure,drawer		Appelez-nous	-
91A	7241824101		Cap,door Rack ,white		Appelez-nous	-
F1	7241778304		Gasket-frzr Drawer,black ,magnetic		Appelez-nous	-
NI	7242011101		Pin-lock		Appelez-nous	-
NI	7241999901		Guide,divider ,plastic (abs) ,lower		Appelez-nous	-
NI	7241979601		Bumper,rubber		Appelez-nous	-
NI	218755504		Screw-shoulder,no.10 Ab ,handle Mounting   (Replaces: 7218755504)			Immediately	$ 18.60
NI	7241601002		Wrench,allen		Appelez-nous	-
NI	7241999902		Guide,divider ,plastic (abs) ,lower ,lh		Appelez-nous	-
NI	7241695904		Screw		Appelez-nous	-
