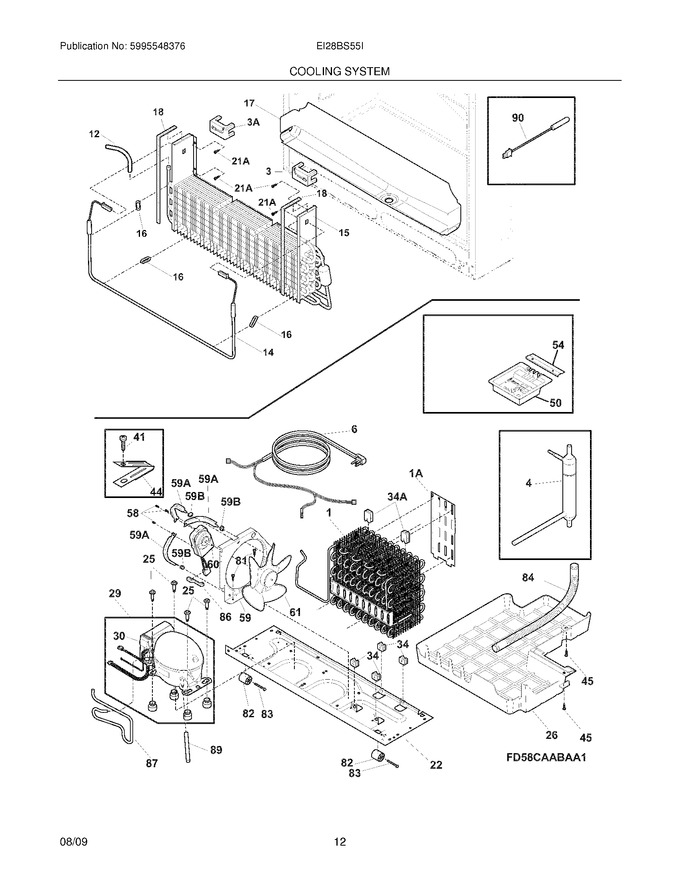

11 - Cooling System
13 - Controls & Ice Dispenser
15 - Ice Container
17 - Ice Maker
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 3 | 7241838401 | Block-evap Coil,styrofoam Insul ,rh |
|
- | |||||
| 4 | 7241863101 | Drier-filter,w/process Tube |
|
- | |||||
| 16 | 75308000110 | Strap-evap/heater,aluminum ,(2) |
|
- | |||||
| 17 | 7241791201 | Trough-drain |
|
- | |||||
| 18 | 7241860101 | Gasket,closed Cell |
|
- | |||||
| 22 | 7241602112 | Base-compressor,w/rollers |
|
- | |||||
| 25 | 7240491503 | Screw-compressor Mtg,1/4-28 X 1.16 ,(4) |
|
- | |||||
| 26 | 7241920601 | Pan-defrost |
|
- | |||||
| 34 | 7241929901 | Grommet-cond Mtg,(4) |
|
- | |||||
| 41 | 7240555002 | Screw-no.8-32 X 3/8 |
|
- | |||||
| 44 | 7215174700 | Clamp-service Cord,strain Relief ,galv Steel |
|
- | |||||
| 45 | 75304455650 | Screw,hex Washer Head ,8-15a X 0.625 ,low Profile |
|
- | |||||
| 50 | 5303918508 | Board-main Power,w/housing (Replaces: 7241996302) |
|
$ 1,113.35 | |||||
| 54 | 241532401 | Channel (Replaces: 7241532401) |
|
$ 30.47 | |||||
| 58 | 241953902 | Screw,hex Washer Head ,8-18 X 3/8 (Replaces: 7240433203) |
|
Immediately | $ 17.11 | ||||
| 59 | 7240315502 | Shroud-cond Fan |
|
- | |||||
| 60 | 297279500 | Motor-condenser Fan (Replaces: 7241584301) |
|
Immediately | $ 141.66 | ||||
| 61 | 7241639501 | Blade-condenser Fan |
|
- | |||||
| 81 | 7240359403 | Screw-fan Shroud,(2) |
|
- | |||||
| 82 | 5304418225 | Roller,compressor Base ,rear ,(2) (Replaces: 75304418225) |
|
$ 51.57 | |||||
| 83 | 5304455655 | Rivet,flat Head ,1/4 Od X 1-3/4 ,roller Pin (Replaces: 75304455655) |
|
Immediately | $ 35.34 | ||||
| 84 | 7241830901 | Tube-drain,lower |
|
- | |||||
| 86 | 7240409302 | Spacer-cond Tube,black |
|
- | |||||
| 87 | 7241846302 | Tube-suction,jumper |
|
- | |||||
| 89 | 7215346900 | Tube-process |
|
- | |||||
| 90 | 240597220 | Sensor (Replaces: 7240597203) |
|
Immediately | $ 5.16 | ||||
| 12No. | 7242036701 | Tube-jumper,evaporator |
|
- | |||||
| 1A | 7241987301 | Deflector-air,condenser |
|
- | |||||
| 21A | 7218362501 | Screw,hex Washer Head ,8-18ab X 1.250 ,spacer,(2) |
|
- | |||||
| 34A | 7241929902 | Grommet-cond Mtg,(4) |
|
- | |||||
| 3A | 7241838402 | Block-evap Coil,styrofoam Insul ,lh |
|
- | |||||
| 59A | 7240346501 | Bracket-support,cond Mtr ,(3) |
|
- | |||||
| 59B | 7240346601 | Grommet-bracket,(3) |
|
- | |||||
| F1 | 7241862901 | Condenser |
|
- | |||||
| F14 | 75303918410 | Defrost Heater Kit,28` |
|
- | |||||
| F15 | 75303918406 | Evaporator Kit |
|
- | |||||
| F29 | 75303918411 | Compressor Kit |
|
- | |||||
| F30 | 7241577505 | Invertor |
|
- | |||||
| F6 | 241516904 | Cord-service (Replaces: 7241516901) |
|
Immediately | $ 38.68 | ||||
| FNI | 7241995101 | Harness-wiring,main |
|
- | |||||
| FNI | 75303918409 | Heat Exchanger,icemaker |
|
- | |||||
| FNI | 7241986401 | Valve-expansion,pressure Regearly Models Only |
|
- | |||||
| NI | 7241994701 | Harness-wiring,jumper |
|
- | |||||
| NI | 75303918428 | Hot Tube Repair Kit,service |
|
- | |||||
| NI | 73205266 | Edge Protector,wiring Harness |
|
- | |||||
| NI | 7218252201 | Screw,no.8 Truss Hd ,10-32ca X 0.500 |
|
- | |||||
| NI | 7241994801 | Harness-wiring,machine Compt |
|
- | |||||
| NI | 7240346701 | Tape-foam Seal,shroud |
|
- | |||||
| NI | 75303918416 | Thermistor Kit,t-3 Suction Lin ,icemaker |
|
- | |||||
| NI | 75303918408 | Heat Exchanger,suction Line |
|
- | |||||
| NI | 7241947701 | Spacer,heat Exchanger |
|
- | |||||
| NI | 7218515403 | Clip-grille |
|
- |
