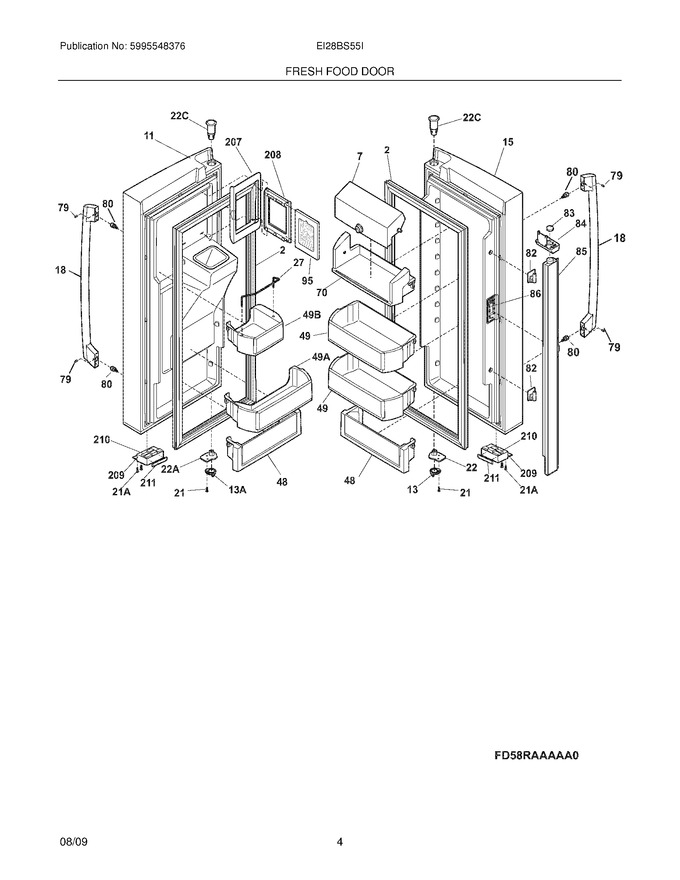

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
7	7241804701		Door-dairy		Appelez-nous	-
11	7241988005		Door-refr,black ,lh		Appelez-nous	-
13	241868401		Door Stop,refrig Rh ,plated   (Replaces: 7241868401)				$ 18.43
15	7241988002		Door-refr,black		Appelez-nous	-
18	7241881321		Handle-refr Door,black ,(2)		Appelez-nous	-
21	242017501		Screw,10-32 X 0.750   (Replaces: 7242017501)				$ 15.60
22	5303918453		Cam,upper Hinge ,rh   (Replaces: 7241869501)				$ 49.62
27	7241752701		Retainer,tall Bottle		Appelez-nous	-
48	241804303		Bin-door,can   (Replaces: 7241804301)				$ 93.38
49	7241804001		Bin-door,gallon		Appelez-nous	-
70	7241804601		Housing-dairy Compt		Appelez-nous	-
79	7218755401		Screw-set,10-32 X 0.375		Appelez-nous	-
80	218755504		Screw-shoulder,no.10 Ab ,handle Mounting   (Replaces: 7218755504)			Immediately	$ 18.60
82	7241779401		Hinge-mullion,upper/lower ,flipper				$ 4.15
83	241812201		Magnet,door   (Replaces: 7241812201)				$ 65.92
84	5303918644		Guide-mullion,flipper   (Replaces: 7241779701)				$ 41.44
85	241778808		Flipper Mullion Assembly   (Replaces: 7241778801)			Immediately	$ 315.40
86	241779802		Hinge-mullion,center ,flipper   (Replaces: 7241779801)			Immediately	$ 36.73
95	EAFCBF		Filter-air   (Replaces: 7241754001)			Immediately	$ 27.64
207	7241934901		Housing-filter,air		Appelez-nous	-
208	7241935001		Door-air Filter		Appelez-nous	-
209	7242021002		Housing-magnet,black		Appelez-nous	-
210	241779101		Magnet,door			Immediately	$ 31.19
211	7241979601		Bumper,rubber		Appelez-nous	-
13A	241868402		Door Stop,refr Lh ,plated   (Replaces: 7241868402)				$ 18.43
21A	7241953901		Screw,no.8-18		Appelez-nous	-
22A	5303918453		Cam,upper Hinge ,lh   (Replaces: 7241869502)				$ 49.62
22C	241760401		Bearing,hinge ,top   (Replaces: 7241760401)			Immediately	$ 19.13
49A	7241896001		Bin-door,2-liter		Appelez-nous	-
49B	7241895901		Bin-door,dispenser		Appelez-nous	-
F2	7241778303		Gasket-refr Door,black ,magnetic		Appelez-nous	-
FNI	7241926001		Harness-wiring,door		Appelez-nous	-
NI	7241601002		Wrench,allen		Appelez-nous	-
NI	7241836401		Latch-door		Appelez-nous	-
NI	7241836301		Knob-dairy Door		Appelez-nous	-
NI	7241995401		Divider-dairy Compt,70x		Appelez-nous	-
NI	7241788402		Harness-wiring,flipper Mullion		Appelez-nous	-
NI	7241891401		Cover-light,led		Appelez-nous	-
NI	5303918596		Dispenser Heater Kit,115   (Replaces: 75303918371)				$ 317.38
NI	7241641501		Screw		Appelez-nous	-
