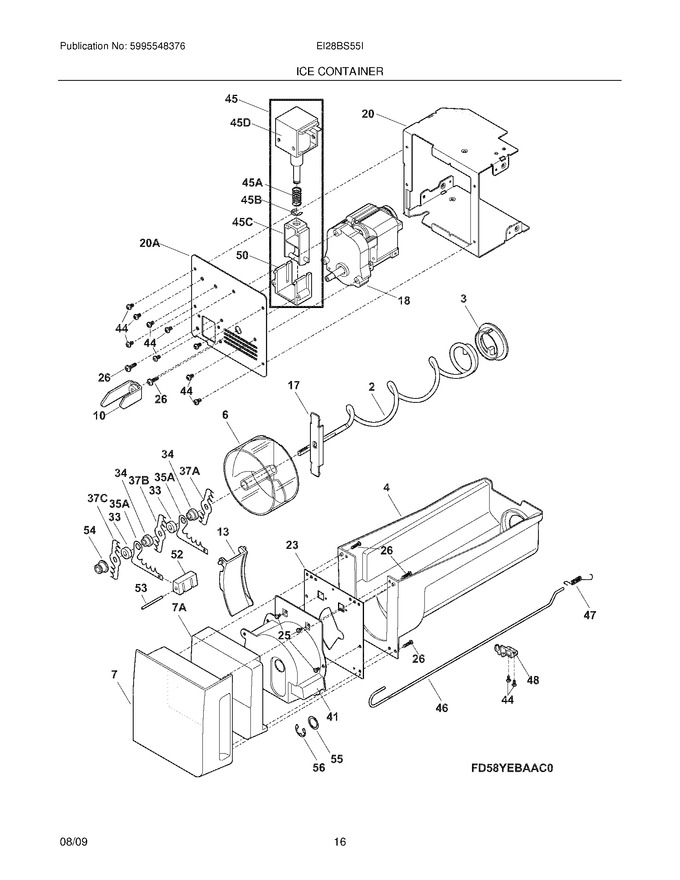

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 7241829401 | Auger-ice |
|
- | |||||
| 3 | 7241830201 | Cam-drive |
|
- | |||||
| 4 | 241816801 | Container-ice,bucket Only (Replaces: 7241816801) |
|
$ 248.45 | |||||
| 6 | 7241829801 | Drum-ice Disp |
|
- | |||||
| 7 | 7241829701 | Front-ice Container |
|
- | |||||
| 10 | 7241829001 | Bar-drive |
|
- | |||||
| 13 | 7241829901 | Gate |
|
- | |||||
| 17 | 7241830601 | Drive Blade |
|
- | |||||
| 20 | 7241828901 | Cover-motor |
|
- | |||||
| 23 | 7241829501 | Plate-front |
|
- | |||||
| 25 | 7241690701 | Screw,hex Washer Head ,8-32t X 0.375 |
|
- | |||||
| 26 | 7215503205 | Screw,cr Pan Hd ,10-16 X 0.500 |
|
- | |||||
| 33 | 7241684801 | Spacer |
|
- | |||||
| 34 | 7241689801 | Spacer |
|
- | |||||
| 41 | 7241830001 | Housing-crusher |
|
- | |||||
| 44 | 7218359202 | Screw,pan Head ,8-32 X 0.250 |
|
- | |||||
| 46 | 7241817901 | Control Rod |
|
- | |||||
| 47 | 7241839001 | Spring-control Rod |
|
- | |||||
| 48 | 7241830101 | Bracket-control |
|
- | |||||
| 50 | 7241675601 | Guide-solenoid |
|
- | |||||
| 52 | 7241830701 | Spacer-fixed Blades |
|
- | |||||
| 53 | 7241869601 | Pin-spiral,fixed Blades |
|
- | |||||
| 54 | 7241829601 | Nut-auger |
|
- | |||||
| 55 | 7241690301 | Washer |
|
- | |||||
| 56 | 7241690201 | E-ring |
|
- | |||||
| 20A | 7241843101 | Cover-motor,front |
|
- | |||||
| 35A | 7241830401 | Fixed Blade,round |
|
- | |||||
| 37A | 7241830301 | Blade,crusher No.1 |
|
- | |||||
| 37B | 7241830302 | Blade,crusher No.2 |
|
- | |||||
| 37C | 7241830303 | Blade,crusher No.3 |
|
- | |||||
| 45A | 7241675901 | Spring-solenoid |
|
- | |||||
| 45B | 7241676001 | E-ring-solenoid |
|
- | |||||
| 45C | 7241676101 | Actuator-solenoid |
|
- | |||||
| 7A | 7241844201 | Insulation |
|
- | |||||
| F18 | 241816602 | Motor-auger (Replaces: 7241816601) |
|
Immediately | $ 154.76 | ||||
| F45 | 241675704 | Solenoid Assy,115v (Replaces: 7241675701) |
|
Immediately | $ 65.71 | ||||
| F45D | 7241675801 | Solenoid,115v |
|
- | |||||
| FNI | 7241843301 | Harness-wiring,high Voltage ,auger Motor |
|
- | |||||
| NI | 7242007101 | Latch |
|
- | |||||
| NI | 7241869701 | Gasket-cover,ffim |
|
- | |||||
| NI | 7241869702 | Gasket-cover,ffim |
|
- |
