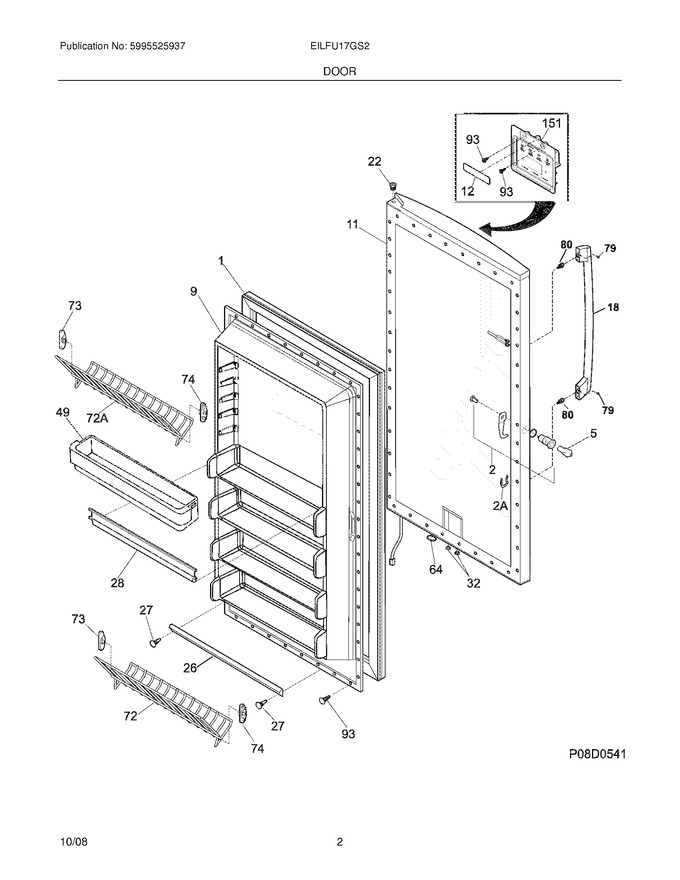

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304507206		Gasket-door,black   (Replaces: 7216522311)			Immediately	$ 186.74
5	297147700		Key,lock   (Replaces: 7297147700)			Immediately	$ 7.57
9	7216527903		Panel-inner Door,frzr		Appelez-nous	-
11	7297203800		Panel-outer Door,stainless		Appelez-nous	-
12	241873301		Nameplate,electrolux ,stainless   (Replaces: 7241873301)				$ 11.15
18	7241761010		Handle		Appelez-nous	-
22	7216970800		Bearing,hinge W/o`ring ,top		Appelez-nous	-
26	7216524200		Gasket,secondary		Appelez-nous	-
27	75303212828		Clip,panel Mtg		Appelez-nous	-
28	7216806103		Rack-door,contour		Appelez-nous	-
32	75309950074		Valve,breather		Appelez-nous	-
49	7216514300		Bin-door,adjustable ,(2)		Appelez-nous	-
64	7216403700		Plug-button,hole Filler ,door Base		Appelez-nous	-
72	7297154900		Shelf,tilt Out ,wire ,tall		Appelez-nous	-
73	7216513900		End Cap,shelf ,lh ,tilt-out		Appelez-nous	-
74	7216514000		End Cap,shelf ,rh ,tilt-out		Appelez-nous	-
79	7218755401		Screw-set,10-32 X 0.375		Appelez-nous	-
80	218755504		Screw-shoulder,no.10 Ab ,handle Mounting   (Replaces: 7218755504)			Immediately	$ 18.60
93	216858001		Screw,ph Truss Head ,8-18ab X 0.500   (Replaces: 5304460605)			Immediately	$ 10.85
2A	7297090900		Clip,spring		Appelez-nous	-
72A	7297155000		Shelf,tilt Out ,wire ,(2) ,short		Appelez-nous	-
F151	7297166402		Electronic Control,assy		Appelez-nous	-
F2	7297090000		Lock Assy		Appelez-nous	-
NI	7216905301		Screw,ph 3-24x.25 ,electronic Assy		Appelez-nous	-
NI	7240537301		Nut-anchor,door Hdl Screw		Appelez-nous	-
NI	7297048000		Screw,anchor ,no.8 ,white		Appelez-nous	-
NI	75304406520		Clip,panel Mtg Kit ,(40)		Appelez-nous	-
