SELECT A DIAGRAM

01 - Cover


03 - Door

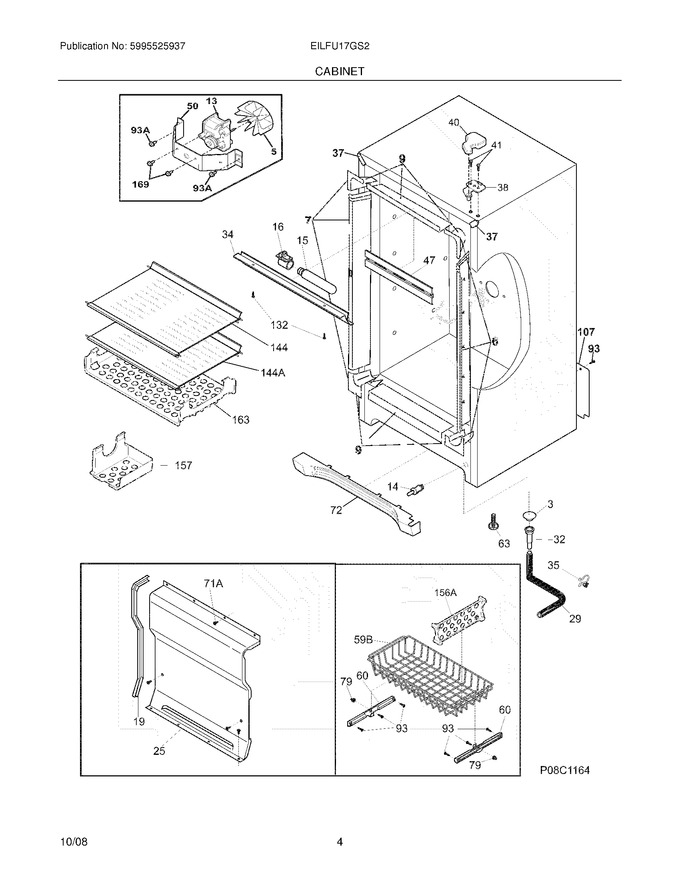

05 - Cabinet


07 - System


09 - Ice Maker


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	7216503100		Screen-drain		Appelez-nous	-
5	7297259600		Fan Blade,evaporator		Appelez-nous	-
6	7297200600		Breaker Kit W/corners,no Lock Slot		Appelez-nous	-
7	7297200800		Breaker Kit W/corners,incl Lock Catch		Appelez-nous	-
9	297200100		Breaker Kit W/corners,32`` ,top And Bottom   (Replaces: 7297200100)				$ 59.28
14	7216472301		Switch-light Plunger		Appelez-nous	-
15	5304517886		Light Bulb/lamp,long ,blue Tint ,40 W ,120v   (Replaces: 7216988100)			Immediately	$ 73.06
16	7216817601		Socket,light/lamp ,25 W		Appelez-nous	-
19	7216204902		Gasket-evap Cover		Appelez-nous	-
25	7297099255		Cover-evaporator		Appelez-nous	-
29	7216313501		Hose-drain		Appelez-nous	-
32	75308005500		Drain		Appelez-nous	-
34	7297153100		Shield-light		Appelez-nous	-
35	7216273000		Clip,drain Hose		Appelez-nous	-
37	7241611303		Trim-cabinet Corner,black ,(2)		Appelez-nous	-
38	7297154600		Hinge-upper		Appelez-nous	-
40	7297154700		Cover-hinge		Appelez-nous	-
41	7240578902		Screw,hex Head ,1/4-20 X 5/8		Appelez-nous	-
47	7297133000		Baffle-plate		Appelez-nous	-
50	708013207		Bracket-fan Motor		Appelez-nous	-
60	7297054200		Slide-basket,rh ,(2) ,w/clips		Appelez-nous	-
60	7297054201		Slide-basket,lh ,(2) ,w/clips		Appelez-nous	-
63	216396900		Screw,leveling Foot ,plastic ,adjustable   (Replaces: 7216396900)			Immediately	$ 38.39
72	7297153200		Grille/kickplate		Appelez-nous	-
79	301036		Nut-insert   (Replaces: 3017666)				$ 15.90
93	216858001		Screw,ph Truss Head ,8-18ab X 0.500   (Replaces: 5304460605)			Immediately	$ 10.85
107	7297165400		Shield,compressor ,compartment		Appelez-nous	-
132	5304460601		Screw,6-20ab X 3/8		Appelez-nous	-
144	7297178105		Shelf-assy,fixed Glass ,upper ,(3)		Appelez-nous	-
157	7297071901		Shelf,small Items		Appelez-nous	-
163	7297072101		Shelf,pizza		Appelez-nous	-
169	7216912401		Screw,hex Washer Head ,8-32 X 0.500 ,bracket Fan Mtr,(2)		Appelez-nous	-
59B	7297152900		Basket,shallow ,(2)		Appelez-nous	-
71A	7297146800		Screw,8-18ab X 0.470		Appelez-nous	-
93A	7216629601		Screw,hex Washer Head ,10-16 X 0.500 ,tapping		Appelez-nous	-
F13	7297250000		Motor,fan ,115 V		Appelez-nous	-
F144	7297178106		Shelf-assy,fixed Glass ,lower		Appelez-nous	-
F156	7297071801		Divider,basket ,(2)		Appelez-nous	-
NI	297049500		Clip-slide,basket			Immediately	$ 20.56
NI	7216910405		Energy Guide		Appelez-nous	-
NI	7297001704		Insulation,24`` ,drain Tube		Appelez-nous	-
NI	7297013100		Instructions,water Line		Appelez-nous	-
NI	7297048000		Screw,anchor ,no.8 ,white		Appelez-nous	-
NI	7216502400		Grommet-shelf Mtg		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
