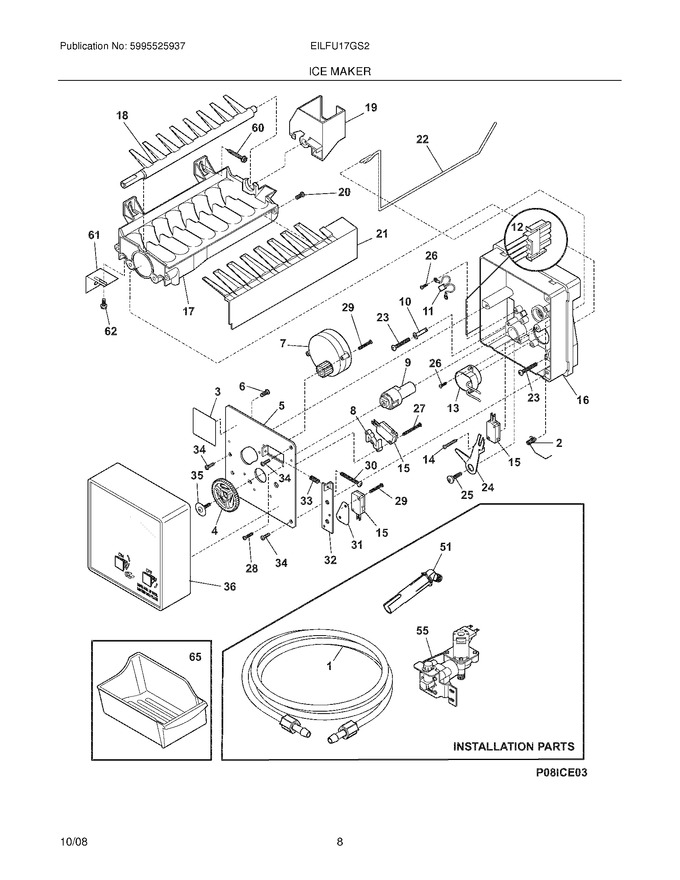

09 - Ice Maker


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	7297044901		Tube-water Inlet,inlet Valve ,to Ice Maker		Appelez-nous	-
2	75304456650		Spring-shutoff Arm,ice Maker		Appelez-nous	-
3	75304456657		Nameplate		Appelez-nous	-
4	75304456658		Gear		Appelez-nous	-
5	75304456659		Plate-mounting		Appelez-nous	-
6	75304456691		Screw,m 3x20 No.3 ,valve Plate		Appelez-nous	-
8	75304456661		Spacer-hold Switch		Appelez-nous	-
9	75304456662		Cam		Appelez-nous	-
10	75304456689		Washer,nylon		Appelez-nous	-
12	75304456664		Harness-wiring		Appelez-nous	-
13	75304456665		Thermostat,ice Maker		Appelez-nous	-
14	75304455676		Screw,plask ,4x14x3/4		Appelez-nous	-
16	75304456668		Support		Appelez-nous	-
17	75304456669		Mold-ice Maker,w/therm Cut Off		Appelez-nous	-
18	75304456670		Ejector-ice		Appelez-nous	-
19	75304456671		Bearing & Inlet,fill Cup		Appelez-nous	-
20	75304455677		Screw,8-32 X 3/8		Appelez-nous	-
21	75304456672		Ice Stripper		Appelez-nous	-
22	75304456673		Shut-off Arm		Appelez-nous	-
23	75304456674		Screw,m 4x25 No.2 ,mold-to-support ,(2)		Appelez-nous	-
24	75304456675		Lever Arm		Appelez-nous	-
25	75304456676		Screw,m 4x12.8 No.2 ,lever Arm/sprt		Appelez-nous	-
26	75304455680		Screw,plask ,4-14 X 3/8		Appelez-nous	-
27	75304456677		Screw,m 3x25 No.3 ,hold Switch Mtg ,(2)		Appelez-nous	-
28	75304456660		Screw,m 4x6 No.2		Appelez-nous	-
29	75304456678		Screw,m 3x12 No.3 ,(2)		Appelez-nous	-
30	75304456679		Screw-timing Adj,m 4x25 No.3		Appelez-nous	-
31	75304456680		Insulator		Appelez-nous	-
32	75304456681		Plate-valve Switch		Appelez-nous	-
33	75304456682		Spring,timing Adjust		Appelez-nous	-
34	75304456683		Screw,m 4x12 No.2 ,(3)		Appelez-nous	-
35	75304456684		Screw		Appelez-nous	-
36	75304456685		Cover-ice Maker		Appelez-nous	-
51	7216887500		Tube,water ,ice Maker		Appelez-nous	-
60	75304455852		Screw,hex Washer Head ,8-15a X 1.000		Appelez-nous	-
61	75304456686		Bracket-leveling,ice Maker		Appelez-nous	-
62	75304456687		Screw-im Brkt Mtg,pan Hd Phillips ,8-32t X 0.375		Appelez-nous	-
65	7240385201		Container,ice Bin		Appelez-nous	-
F11	75304456663		Thermal Cutoff,ice Maker ,complete Assy		Appelez-nous	-
F15	75304456667		Switch-micro,(3)		Appelez-nous	-
F55	242252603		Valve-water,single Solenoid , 60 Hz ,105/120 V   (Replaces: 7240519601)			Immediately	$ 73.14
F7	75304445222		Motor-ice Maker Svo		Appelez-nous	-
NI	75304456693		Nut,m 3.5		Appelez-nous	-
NI	7240352602		Wiring Harness,internal,wiring Harness		Appelez-nous	-
NI	75304456737		Washer		Appelez-nous	-
NI	75304445223		Spring Beam		Appelez-nous	-
NI	75304456690		Label,id Plate		Appelez-nous	-
NI	7240561701		Seal-water Inlet,inlet Valve ,to Ice Maker		Appelez-nous	-
NI	7241642503		Ice Maker,radius Cube ,115 V ,svce		Appelez-nous	-
NI	7241642601		Harness-wiring Svo		Appelez-nous	-
NI	7241806601		Connector-water,straight		Appelez-nous	-
NI	75304456666		Screw,m 3x20 No.2 ,(6)		Appelez-nous	-
NI	75304456688		Terminal		Appelez-nous	-
NI	75304456692		Washer		Appelez-nous	-
